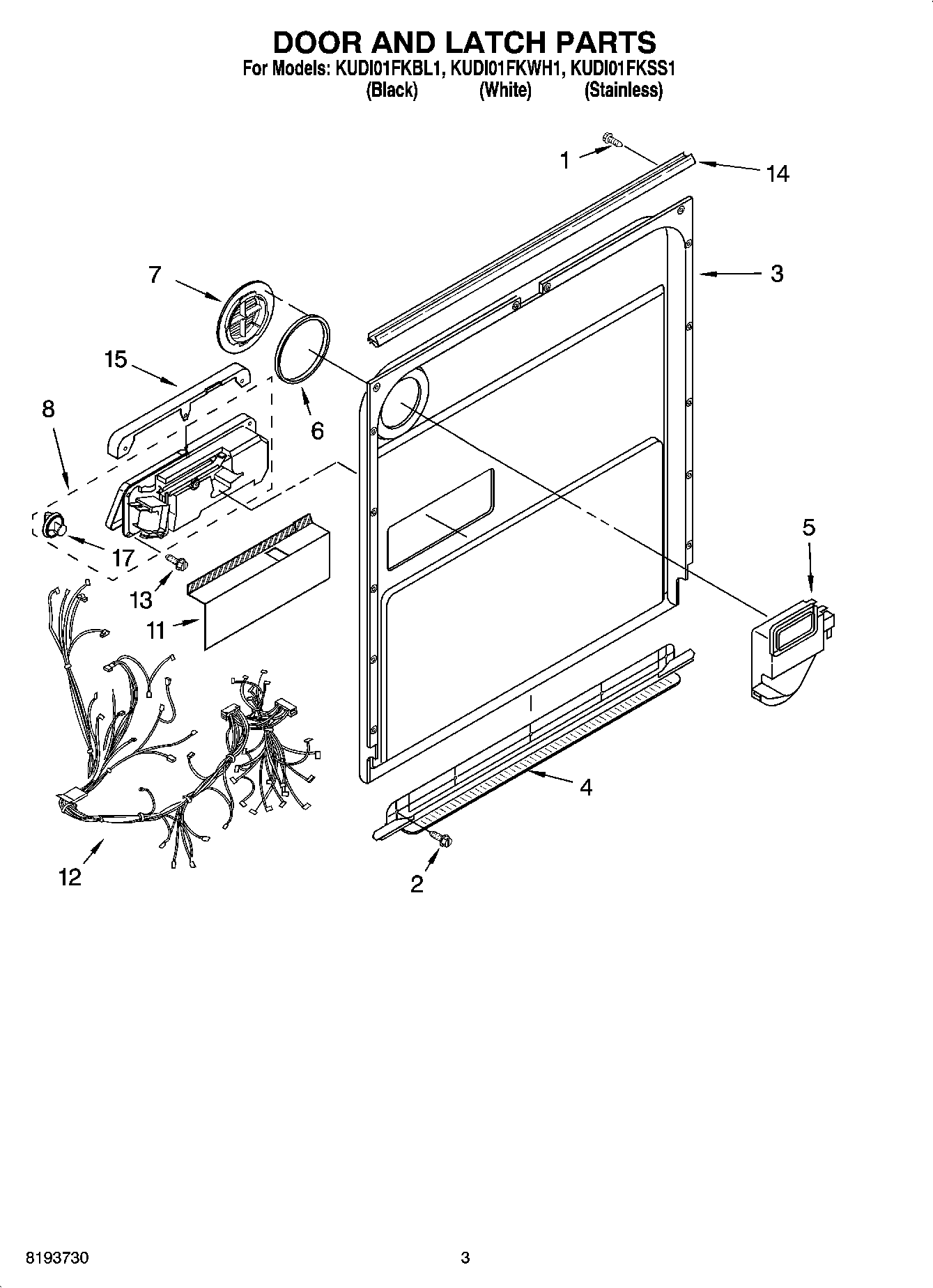

KUDI01FKWH1 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	WPW10348409 Whirlpool Screw
2	W11631670 Whirlpool Screw
3	Inner Door Mastic Assembly (Also Order Item 6)
4	WP8268937 Whirlpool Dishwasher Air Inlet
5	W10328540 Whirlpool Dishwasher Vent Assembly
6	WP8269259 Whirlpool Air Vent Gasket
7	WP8545536 Whirlpool Dishwasher Deflector
8	WP8558129 Whirlpool Dishwasher Detergent Dispenser
11	Shield, Dispenser
12	Wiring Harness Main
13	WPW10177098 Whirlpool Dishwasher Screw
14	WP8535660 Whirlpool Dishwasher Seal
15	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
17	WP8533380 Whirlpool Dishwasher Cap
