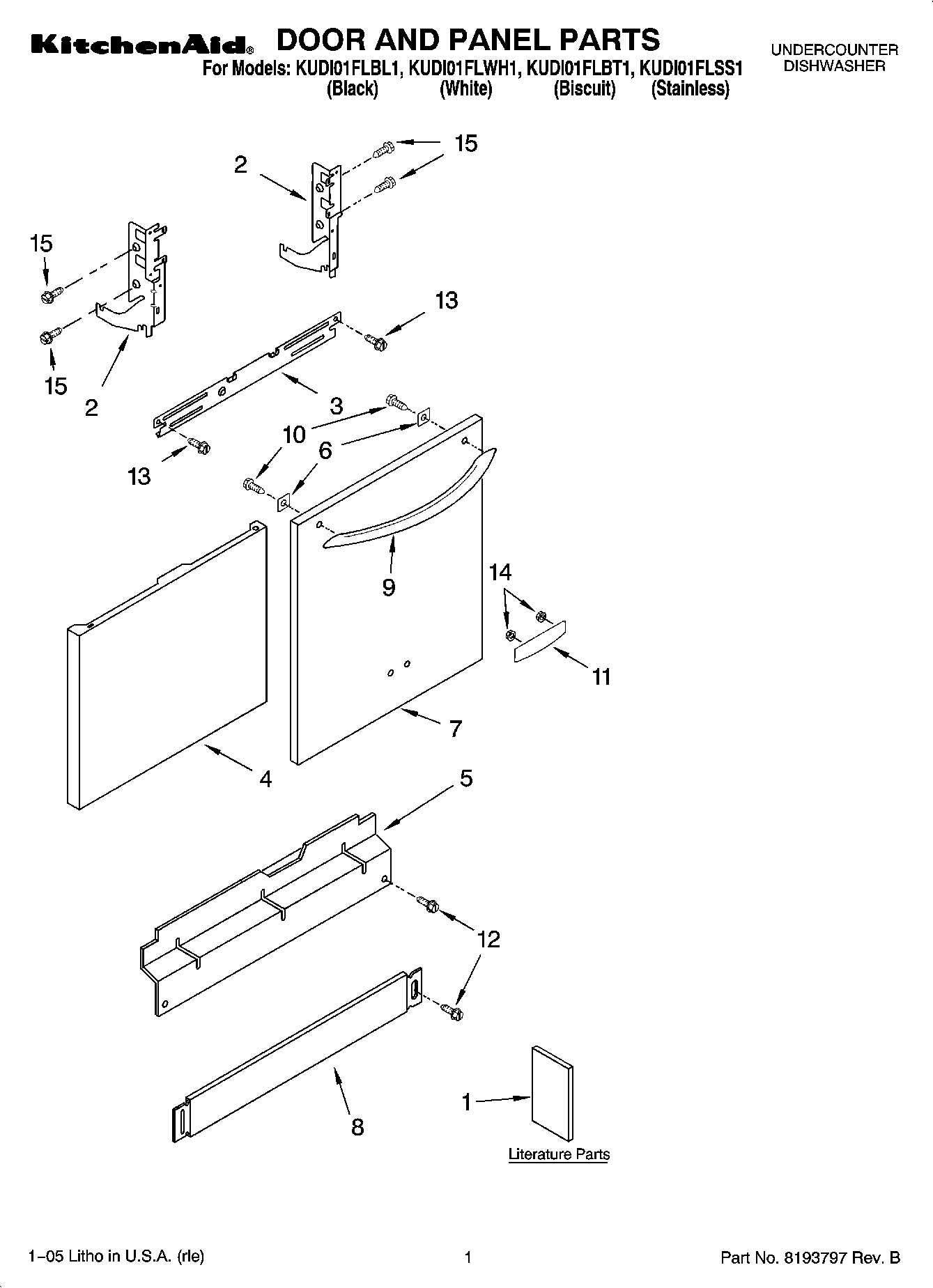

KUDI01FLBT1 01 – DOOR AND PANEL PARTS

KUDI01FLBT1 01 – DOOR AND PANEL PARTS

Written by

in

KUDI01FLBT1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1LITERATURE PARTS
1Literature Parts (Guide, Energy)
1Literature Parts (English/French)
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Use & Care)
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
6Plate, Backing
7Panel, Full Front W/Nameplate (Black)
7Panel, Full Front W/Nameplate (Stainless)
7Panel, Full Front W/Nameplate (White)
7Panel, Full Front W/Nameplate (Biscuit)
8Toe Panel (Biscuit)
8WPW10586591 Whirlpool Dishwasher Toe Panel
9Handle (Biscuit)
9Handle, Door (Black)
9Handle, Door (White)
9Handle, Door (Stainless)
10Screw
11Nameplate (White)
11Nameplate (Biscuit)
11Nameplate (Black)
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WPW10503550 Whirlpool Dishwasher Retainer
13WP489069 Whirlpool Compactor Screw
14WP2004333 Whirlpool Refrigerator Nut
15WP3400071 Whirlpool Screw
