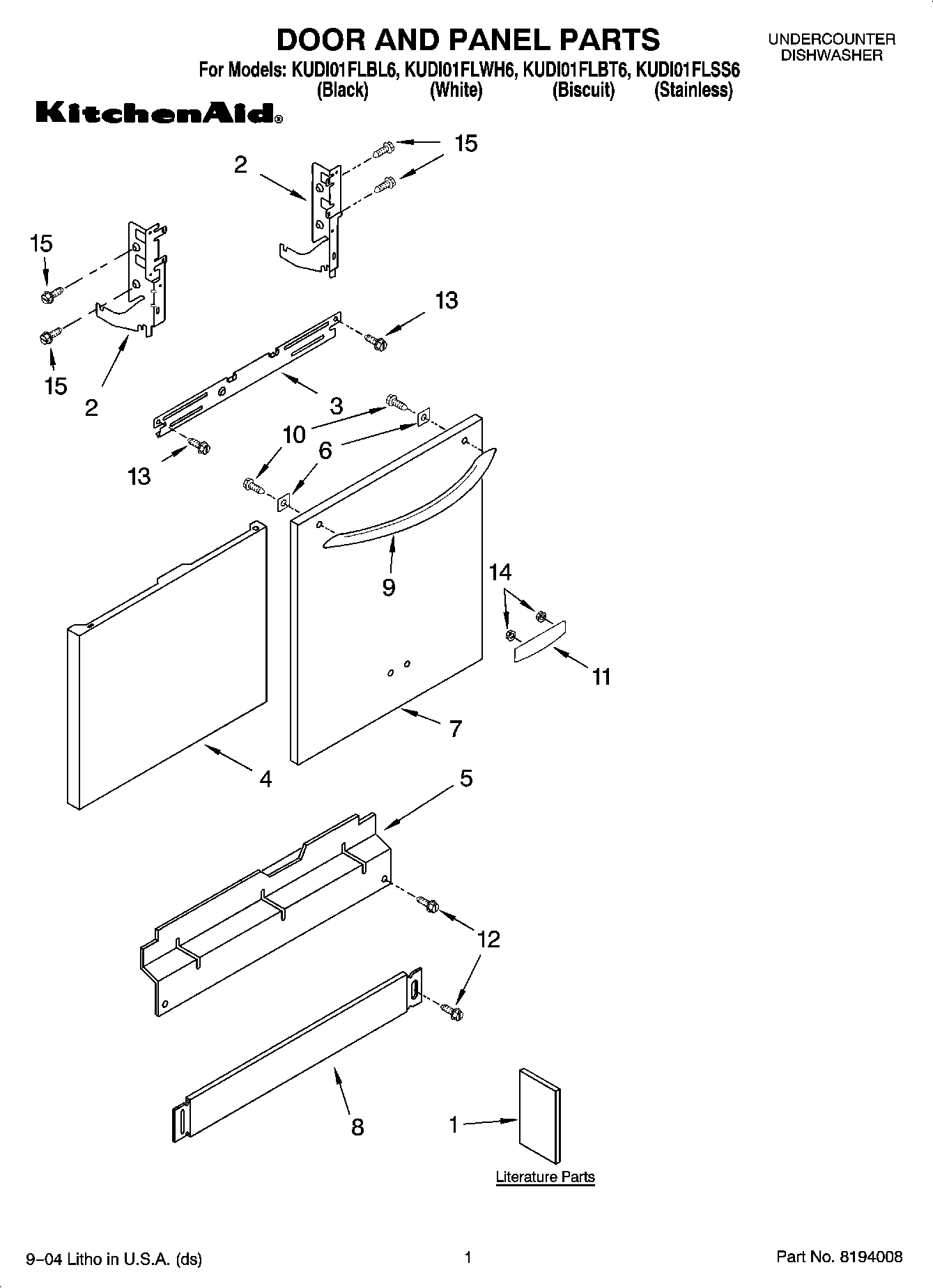

KUDI01FLSS6 01 – DOOR AND PANEL PARTS

KUDI01FLSS6 01 – DOOR AND PANEL PARTS

Written by

in

KUDI01FLSS6 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Instructions, Installation
1English/French
1Guide, Use & Care DVD Tech Sheet
1Energy Guide
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
6Washer
7Panel, Full Front W/Nameplate (Stainless)
7Panel, Full Front W/Nameplate (Black)
7Panel, Full Front W/Nameplate (White)
7Panel, Full Front W/Nameplate (Biscuit)
8W10909064 Whirlpool Dishwasher Black Access Panel
8Toe Panel (Biscuit)
8WPW10586591 Whirlpool Dishwasher Toe Panel
9Handle (Includes Items 6 & 10) (Stainless)
9Handle (Includes Items 6 & 10) (Black)
9Handle (Includes Items 6 & 10) (White)
9Handle (Includes Items 6 & 10) (Biscuit)
10Screw
11Nameplate (Black)
11Nameplate (Biscuit)
11Nameplate (White)
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WPW10503550 Whirlpool Dishwasher Retainer
13WP489069 Whirlpool Compactor Screw
14WP2004333 Whirlpool Refrigerator Nut
15WP3400071 Whirlpool Screw
