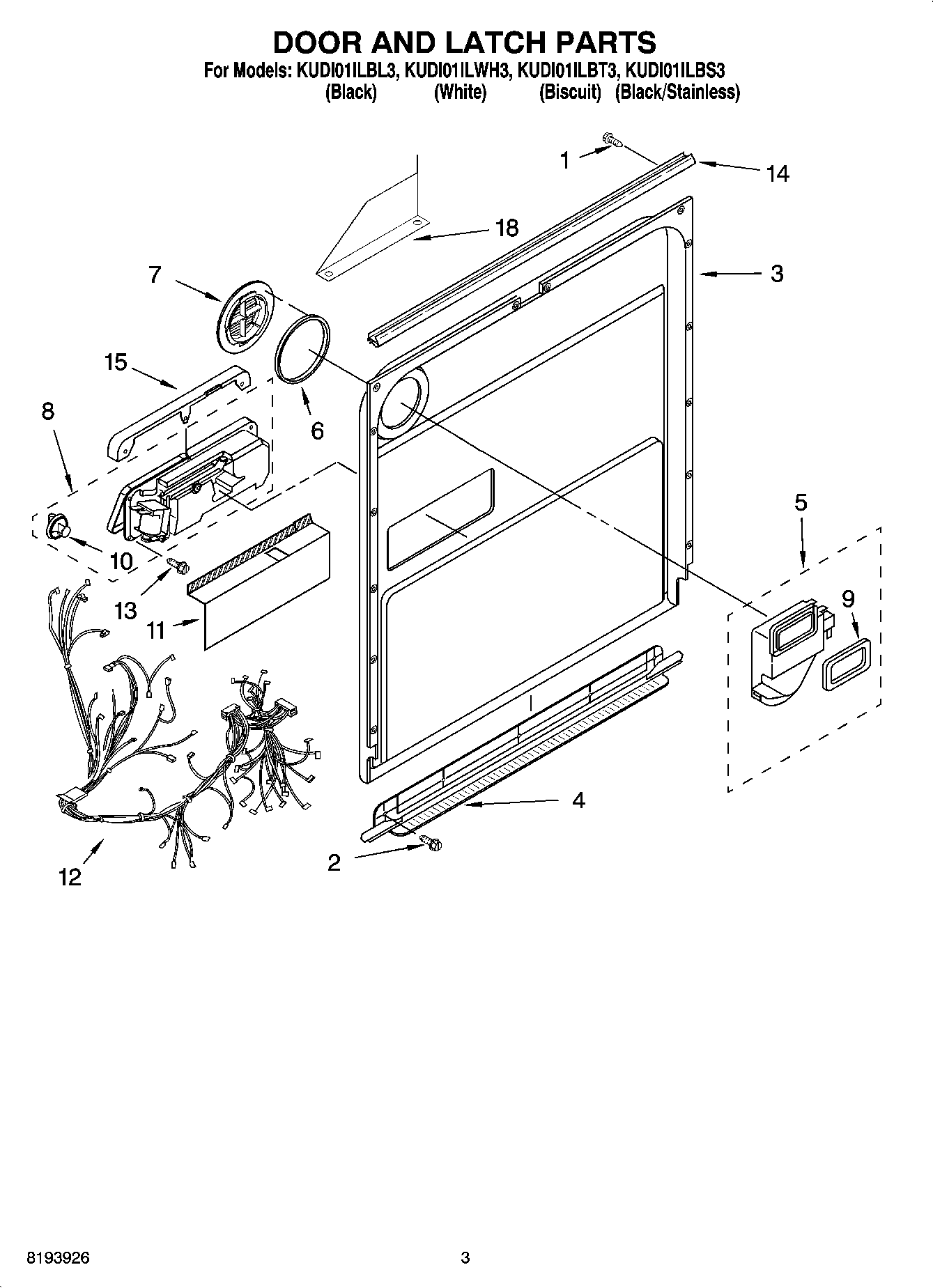

KUDI01ILWH3 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	WPW10348409 Whirlpool Screw
2	W11631670 Whirlpool Screw
3	Inner Door Mastic Assembly (Also Order Item 6)
4	WP8268937 Whirlpool Dishwasher Air Inlet
5	WP8545533 Whirlpool Dishwasher Vent
6	WP8269259 Whirlpool Air Vent Gasket
7	WP8545536 Whirlpool Dishwasher Deflector
8	WP8558129 Whirlpool Dishwasher Detergent Dispenser
9	WP8269258 Whirlpool Dishwasher Gasket
10	WP8533380 Whirlpool Dishwasher Cap
11	Shield, Dispenser
12	Wiring Harness & Protector
13	WPW10177098 Whirlpool Dishwasher Screw
14	WP8535660 Whirlpool Dishwasher Seal
15	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
18	Shield, Solenoid
