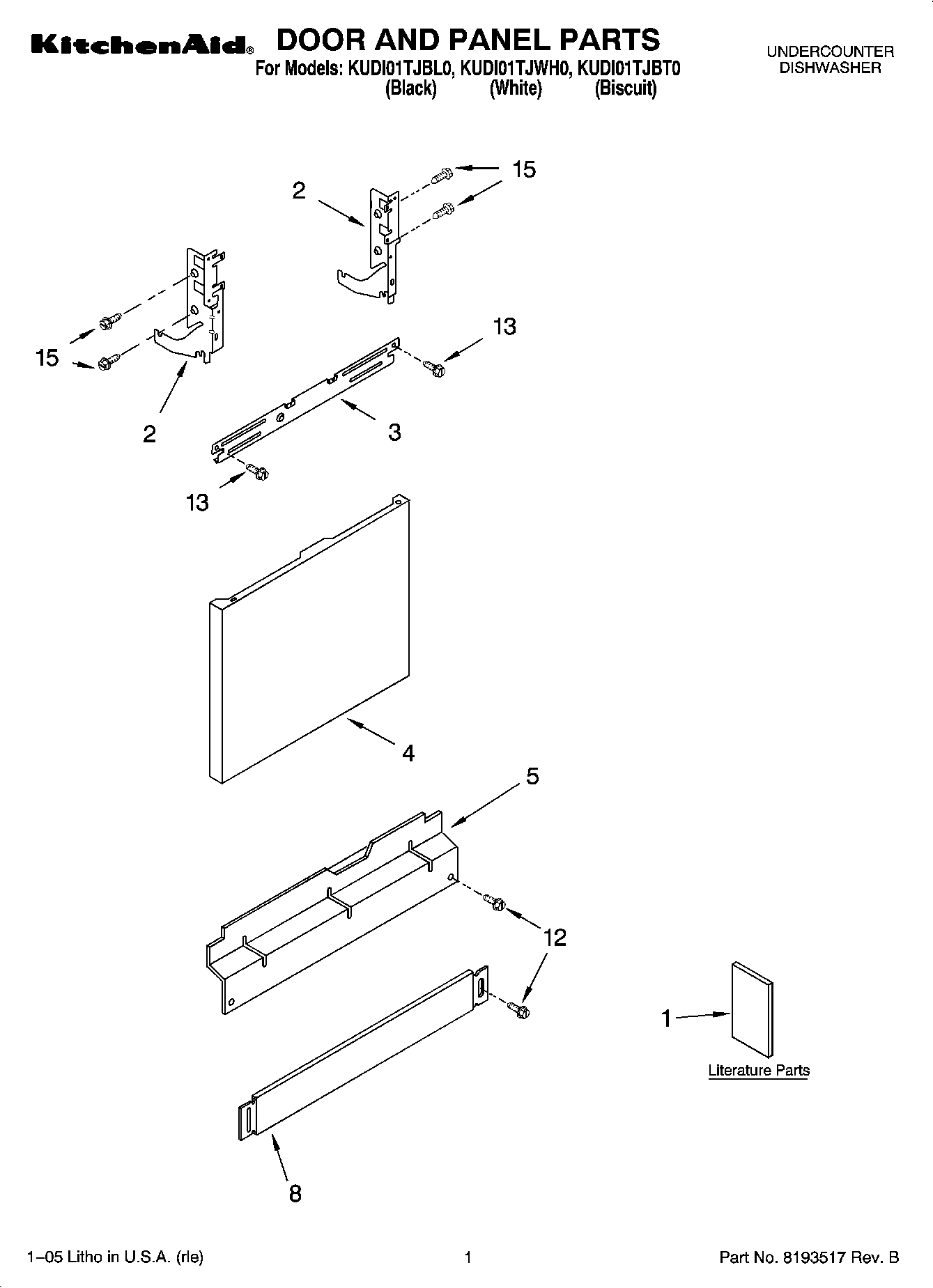

KUDI01TJWH0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (Instructions, Installation)
1	Literature Parts (English)
1	Literature Parts (French)
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (Energy Guide)
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	Panel Front (Biscuit)
4	Panel Front (White)
4	Panel Front (Black)
5	W10871198 Whirlpool Dishwasher Panel
5	W10909066 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
8	Toe Panel (Biscuit)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
12	WPW10503550 Whirlpool Dishwasher Retainer
12	WP302868 Whirlpool Screw
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
15	WP3400071 Whirlpool Screw
