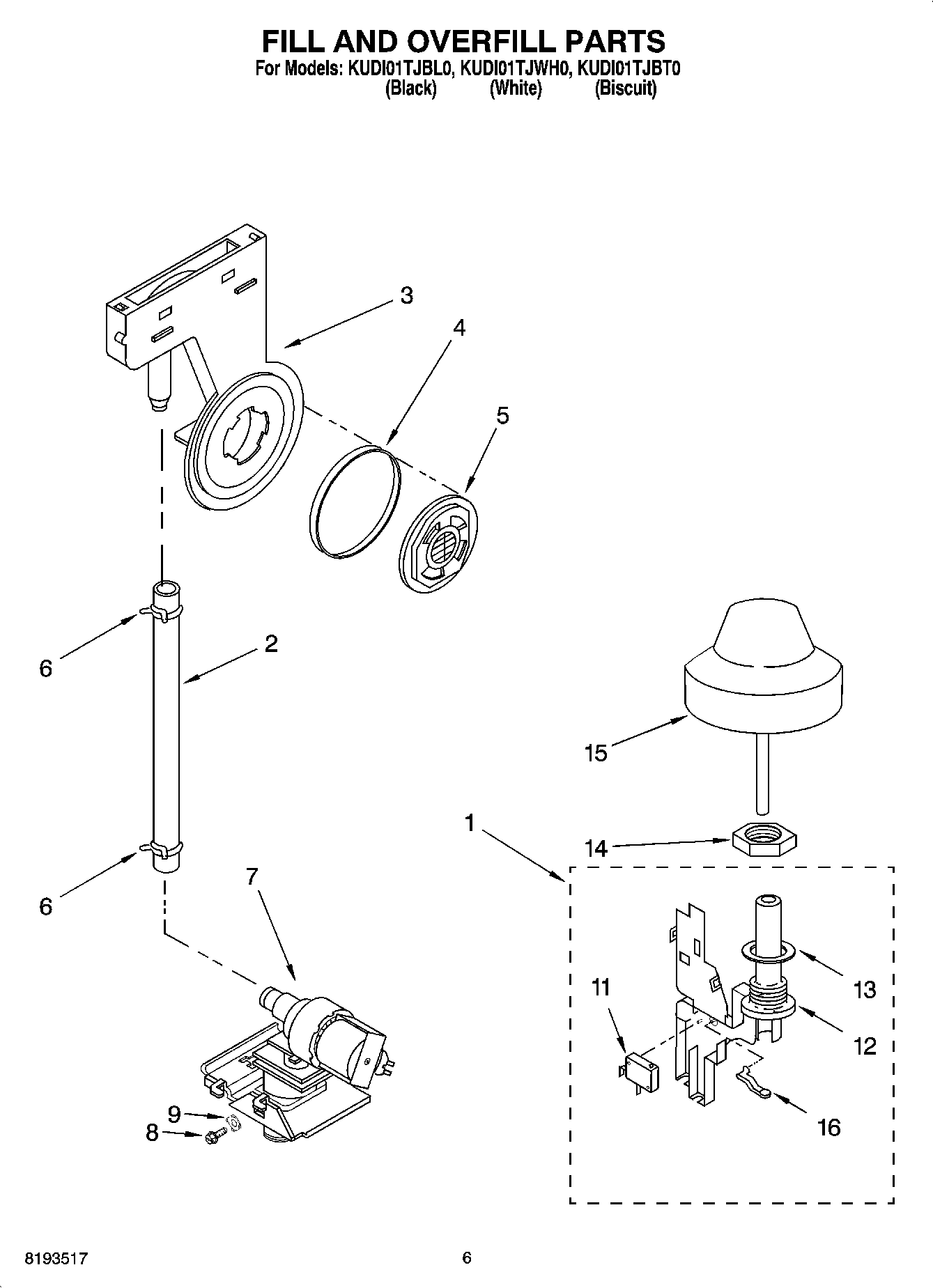

KUDI01TJWH0 06 – FILL AND OVERFILL PARTS

KUDI01TJWH0 06 – FILL AND OVERFILL PARTS

Written by

in

KUDI01TJWH0 06 – FILL AND OVERFILL PARTS

Products

PositionProduct
18193506 Whirlpool Dishwasher Switch
2WP8269242 Whirlpool Dishwasher Fill Hose
3Water Inlet Assembly (Includes Items 4 & 5)
4Gasket
5Bezel, Inlet
6WP596669 Whirlpool Hose Clamp
7WP8531669 Whirlpool Dishwasher Inlet Valve
8WP3400014 Whirlpool Dishwasher Screw
9WP3378128 Whirlpool Dishwasher Washer
11WP8268909 Whirlpool Dishwasher Switch
13WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14WP9741998 Whirlpool Dishwasher Nut
15WP8268895 Whirlpool Dishwasher Float Assembly
16WP8268892 Whirlpool Dishwasher Lever
