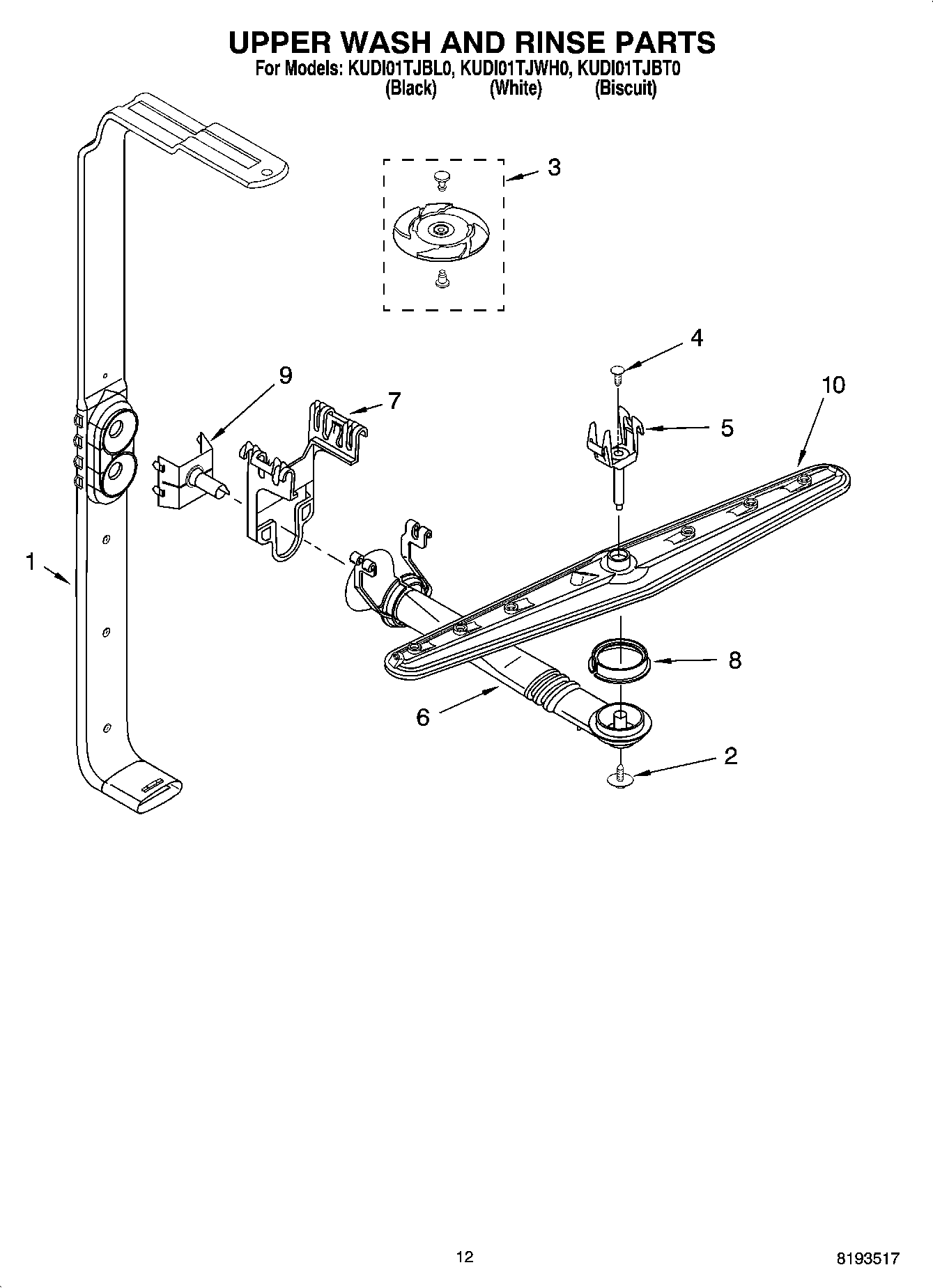

KUDI01TJWH0 10 – UPPER WASH AND RINSE PARTS

KUDI01TJWH0 10 – UPPER WASH AND RINSE PARTS

Written by

in

KUDI01TJWH0 10 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1Feed Tube Assembly (Also Includes Item 3)
2WPW10349488 Whirlpool Screw
38193768 Whirlpool Dishwasher Spinner
4WP3400919 Whirlpool Dishwasher Screw Cover
5WP8268321 Whirlpool Dishwasher Mount
6WP8268326 Whirlpool Dishwasher Tube
7Holder, Feed Tube
8WP8268433 Whirlpool Seal Assembly
9Nozzle, Feed
10WP8535083 Whirlpool Dishwasher Spray Arm
