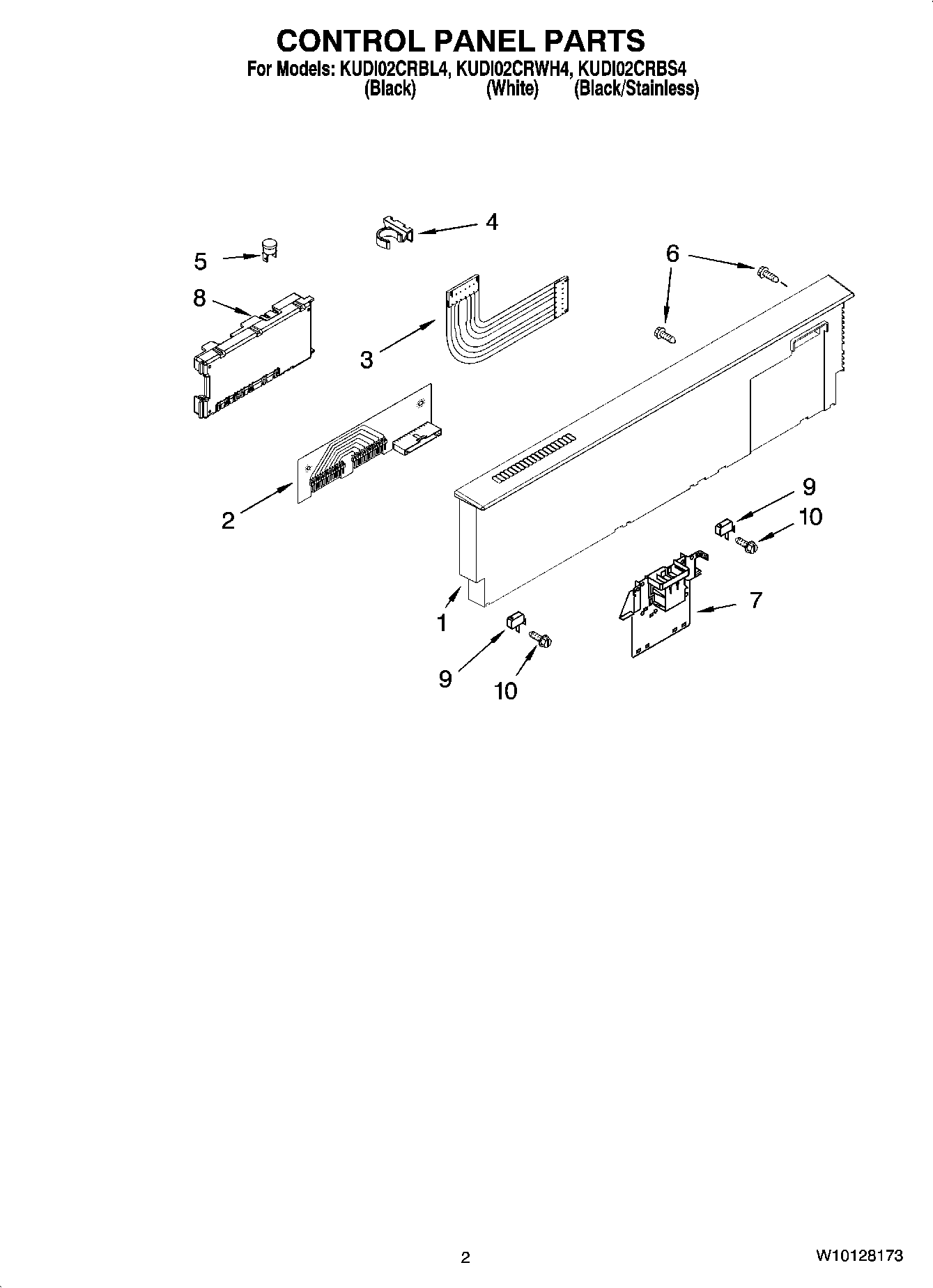

KUDI02CRBL4 02 – CONTROL PANEL PARTS

KUDI02CRBL4 02 – CONTROL PANEL PARTS

Written by

in

KUDI02CRBL4 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (White)
1WP8572349 Whirlpool Dishwasher Control Panel
2WP8531873 Whirlpool Dishwasher Control Board
3CABLE-RIBBON
4Clip, BI-Metal
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WPW10348409 Whirlpool Screw
78193830 Whirlpool Dishwasher Door Latch Switch Kit
8WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
9WP8269209 Whirlpool Door Switch
10WP3400412 Whirlpool Dishwasher Screw
