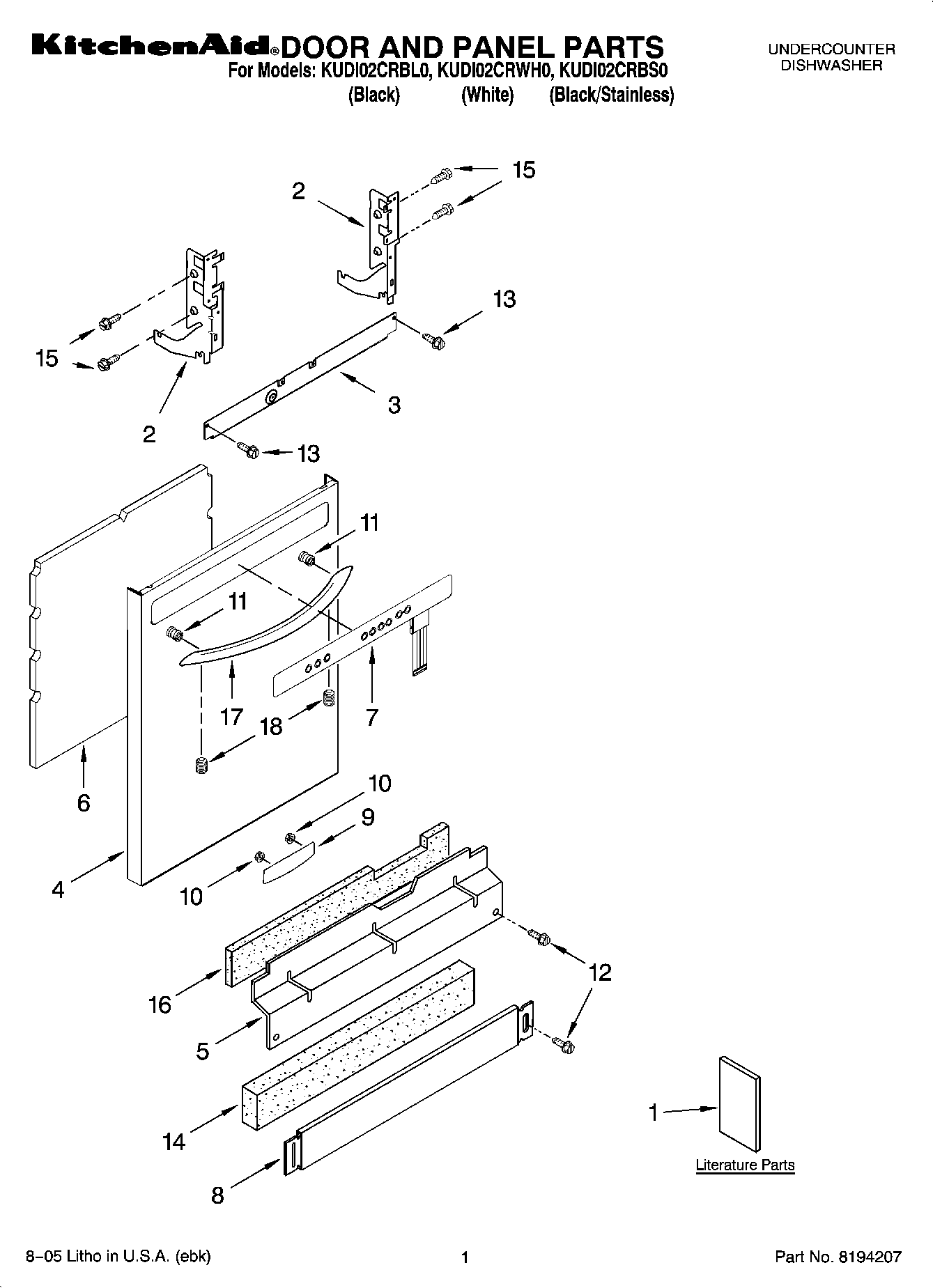

KUDI02CRBS0 01 – DOOR AND PANEL PARTSadmin2025-04-26T11:44:29+00:00KUDI02CRBS0 01 – DOOR AND PANEL PARTS
Products
| Position | Product |
|---|
| 1 | DVD, Use & Care |
| 1 | Guide, Use & Care |
| 1 | Instructions, Installation |
| 1 | Energy Guide |
| 1 | Guide, Consumer Reference |
| 1 | Tech Sheet |
| 2 | W11612303 Whirlpool Door Hinge |
| 2 | W11612302 Whirlpool Dishwasher Door Hinge |
| 3 | Stiffener, Door |
| 4 | Panel, Full Front (Includes Items 16 & 17) (Black) |
| 4 | Panel, Full Front (Includes Items 16 & 17) (Stainless) |
| 4 | Panel, Full Front (Includes Items 16 & 17) (White) |
| 5 | W10909066 Whirlpool Dishwasher Panel |
| 6 | WPW10073520 Whirlpool Dishwasher Insulation Pad |
| 7 | Bezel, Console (Black) |
| 7 | Bezel, Console (White) |
| 8 | W10909064 Whirlpool Dishwasher Black Access Panel |
| 8 | WPW10586591 Whirlpool Dishwasher Toe Panel |
| 9 | Nameplate (Black) |
| 9 | Nameplate (White) |
| 10 | WP2004333 Whirlpool Refrigerator Nut |
| 11 | WP8564951 Whirlpool Dishwasher Stud |
| 12 | WP302868 Whirlpool Screw |
| 12 | WPW10503549 Whirlpool Dishwasher Retainer Clip |
| 13 | WP489069 Whirlpool Compactor Screw |
| 14 | SHIELD |
| 15 | WP3400071 Whirlpool Screw |
| 17 | Handle (White) |
| 17 | Handle (Black) |
| 17 | W10083931A Whirlpool Dishwasher Stainless Steel Handle |
| 18 | WP8534008 Whirlpool Screw |
