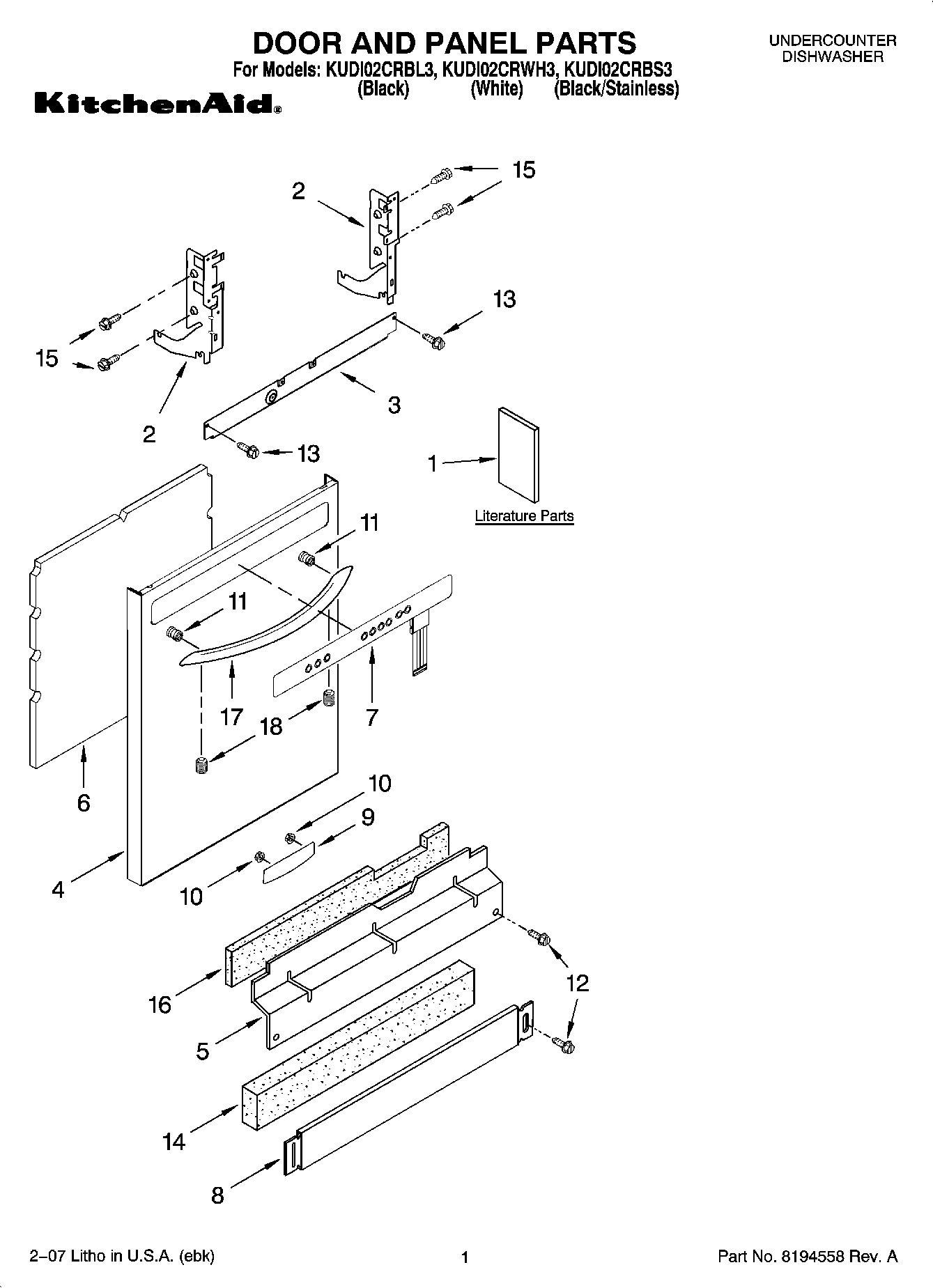

KUDI02CRBS3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Guide, Use & Care
1	DVD, Use & Care
1	Instructions, Installation
1	Energy Guide
1	Guide, Consumer Reference
1	Tech Sheet
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	Panel, Full Front (Includes Items 16 & 17) (Stainless)
4	Panel, Full Front (Includes Items 16 & 17) (Black)
4	Panel, Full Front (Includes Items 16 & 17) (White)
5	PANEL
5	W10909066 Whirlpool Dishwasher Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
7	Bezel, Console (Black)
7	Bezel, Console (White)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	W10909064 Whirlpool Dishwasher Black Access Panel
9	Nameplate (White)
9	Nameplate (Black)
10	WP2004333 Whirlpool Refrigerator Nut
11	WP8564951 Whirlpool Dishwasher Stud
12	WP302868 Whirlpool Screw
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
14	SHIELD
15	WP3400071 Whirlpool Screw
17	W10083931A Whirlpool Dishwasher Stainless Steel Handle
17	Handle (White)
17	Handle (Black)
18	WP8534008 Whirlpool Screw
