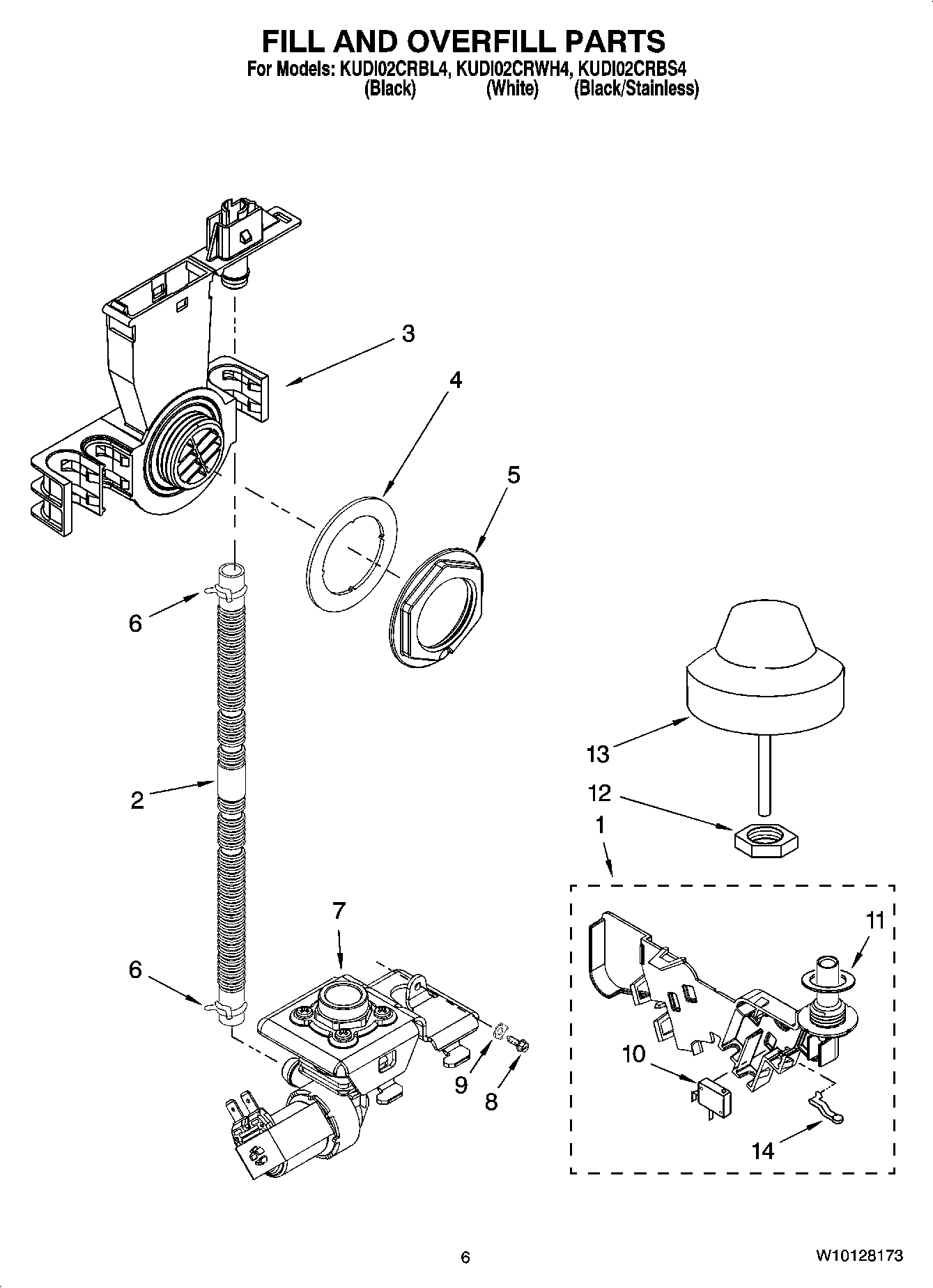

KUDI02CRBS4 06 – FILL AND OVERFILL PARTS

KUDI02CRBS4 06 – FILL AND OVERFILL PARTS

Written by

in

KUDI02CRBS4 06 – FILL AND OVERFILL PARTS

Products

PositionProduct
18193506 Whirlpool Dishwasher Switch
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7WPW10158389 Whirlpool Dishwasher Inlet Valve
8WP3400014 Whirlpool Dishwasher Screw
9WP3378128 Whirlpool Dishwasher Washer
10WP8268909 Whirlpool Dishwasher Switch
11WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
12WP9741998 Whirlpool Dishwasher Nut
13WP8268895 Whirlpool Dishwasher Float Assembly
14WP8268892 Whirlpool Dishwasher Lever
