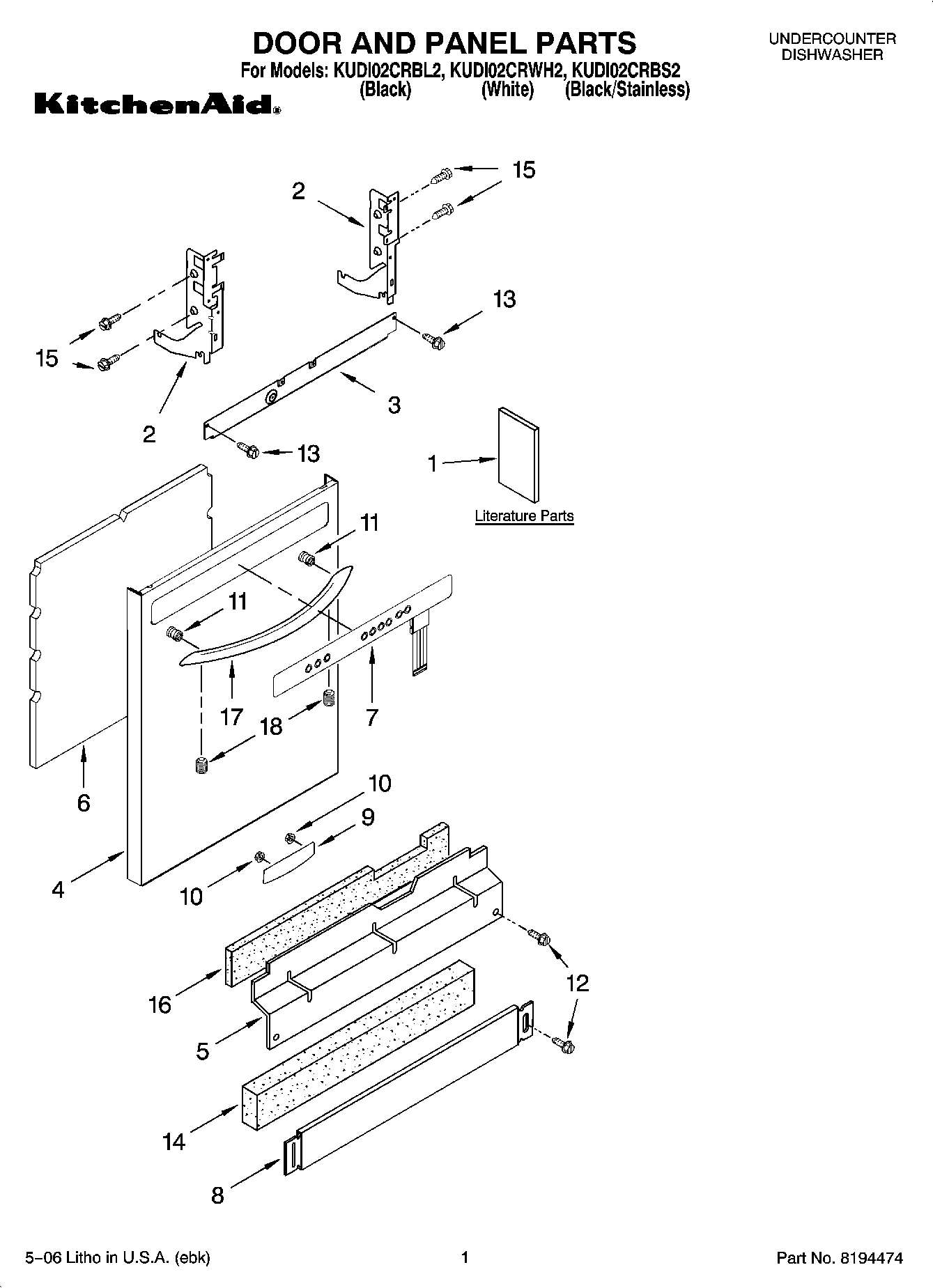

KUDI02CRWH2 01 – DOOR AND PANEL PARTS

KUDI02CRWH2 01 – DOOR AND PANEL PARTS

Written by

in

KUDI02CRWH2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Instructions, Installation
1Tech Sheet
1Energy Guide
1Guide, Consumer Reference
1DVD, Use & Care
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4Panel, Full Front (Includes Items 16 & 17) (White)
4Panel, Full Front (Includes Items 16 & 17) (Black)
4Panel, Full Front (Includes Items 16 & 17) (Stainless)
5PANEL
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7Bezel, Console (Black)
7Bezel, Console (White)
8W10909064 Whirlpool Dishwasher Black Access Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
9Nameplate (Black)
9Nameplate (White)
10WP2004333 Whirlpool Refrigerator Nut
11WP8564951 Whirlpool Dishwasher Stud
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
14SHIELD
15WP3400071 Whirlpool Screw
17Handle (Black)
17W10083931A Whirlpool Dishwasher Stainless Steel Handle
17Handle (White)
18WP8534008 Whirlpool Screw
