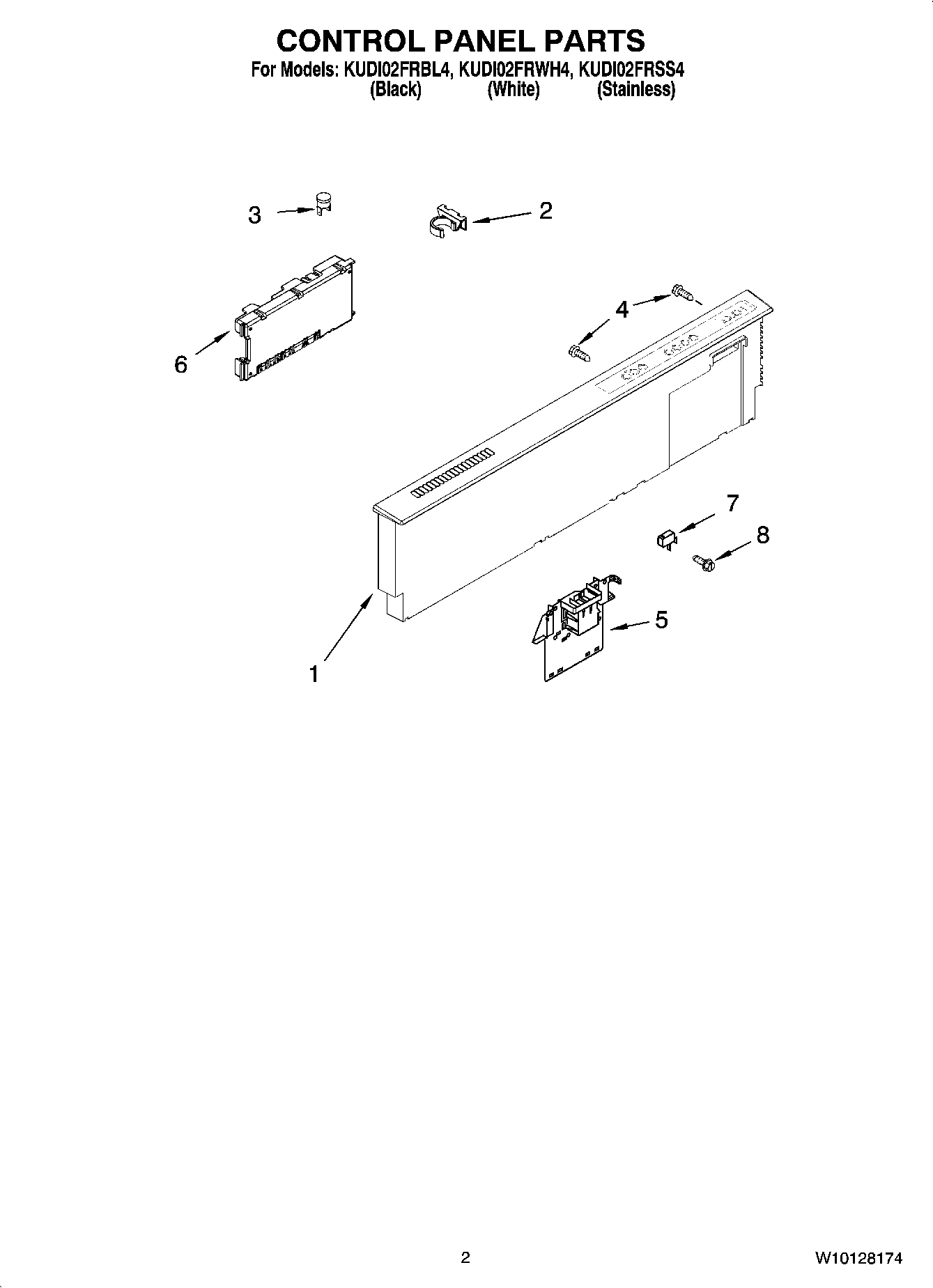

KUDI02FRBL4 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. (Includes Insert) (Stainless)
1	Console Asm. (Includes Insert) (White)
1	Console Asm. (Includes Insert) (Black)
2	Clip, BI-Metal
3	W10258275 Whirlpool Dishwasher Bimetal Fuse
4	WPW10348409 Whirlpool Screw
5	8193830 Whirlpool Dishwasher Door Latch Switch Kit
6	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
7	WP8269209 Whirlpool Door Switch
8	WP3400412 Whirlpool Dishwasher Screw
