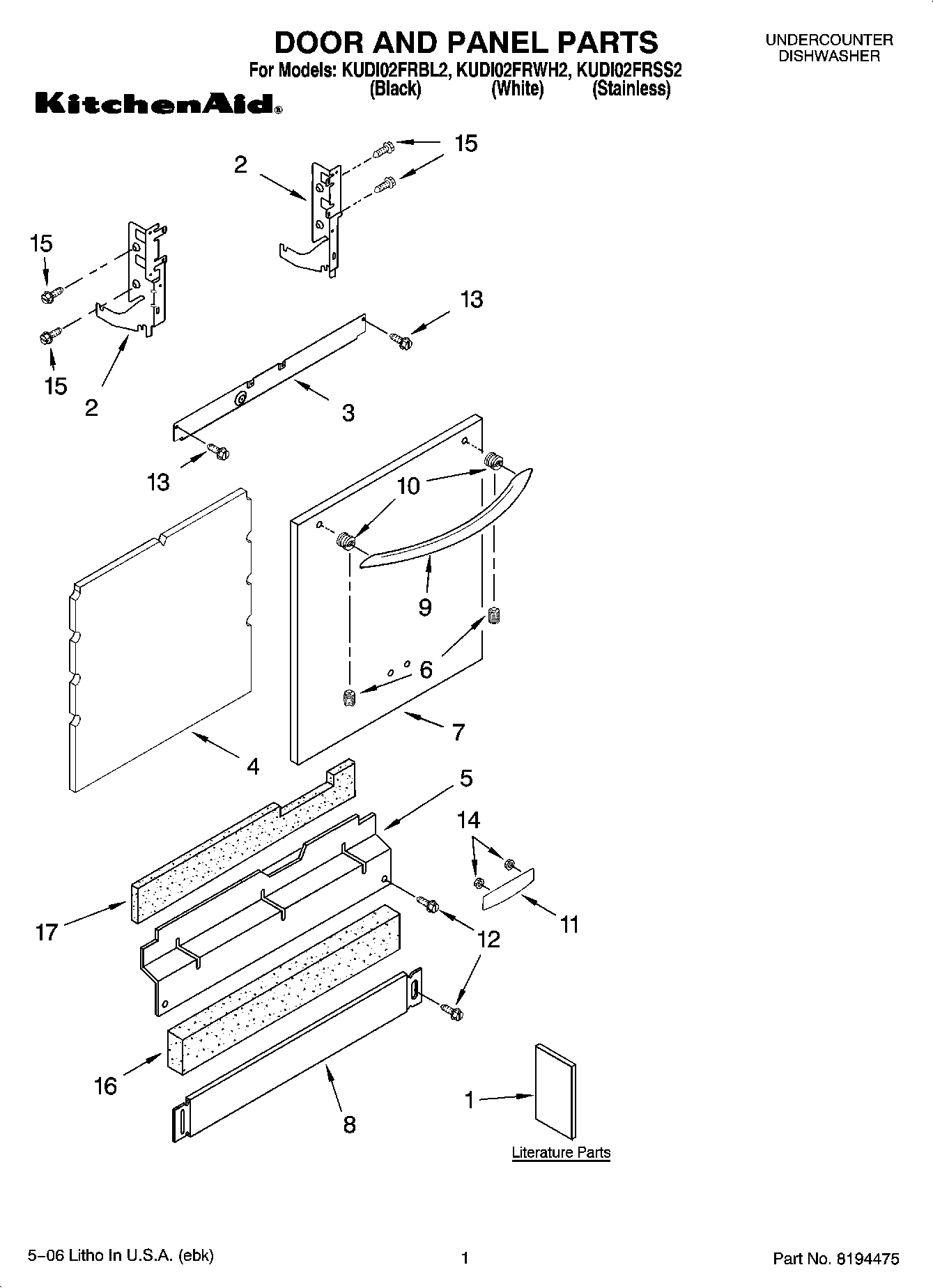

KUDI02FRWH2 01 – DOOR AND PANEL PARTS

KUDI02FRWH2 01 – DOOR AND PANEL PARTS

Written by

in

KUDI02FRWH2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Guide, Use & Care
1DVD, Use & Care
1Instructions, Installation
1Tech Sheet
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909066 Whirlpool Dishwasher Panel
5PANEL
6WP8534008 Whirlpool Screw
7Panel, Full Front (Includes Items 16 & 17) (White)
7Panel, Full Front (Includes Items 16 & 17) (Black)
7Panel, Full Front (Includes Items 16 & 17) (Stainless)
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
9Handle (Black)
9Handle (White)
9W10083931A Whirlpool Dishwasher Stainless Steel Handle
10WP8564951 Whirlpool Dishwasher Stud
11Nameplate (Black)
11Nameplate (White)
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
14WP2004333 Whirlpool Refrigerator Nut
15WP3400071 Whirlpool Screw
16SHIELD
