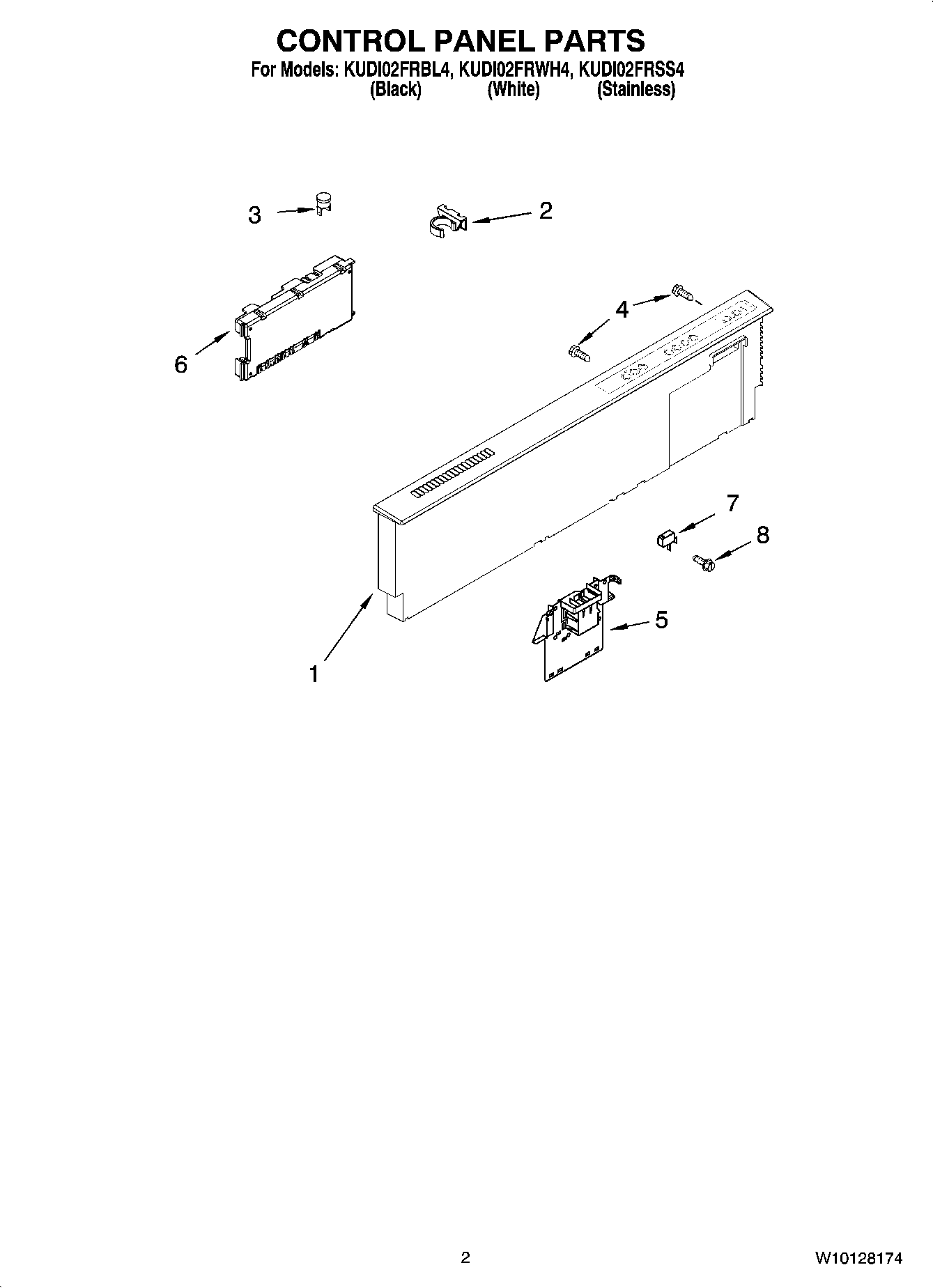

KUDI02FRWH4 02 – CONTROL PANEL PARTS

KUDI02FRWH4 02 – CONTROL PANEL PARTS

Written by

in

KUDI02FRWH4 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. (Includes Insert) (Stainless)
1Console Asm. (Includes Insert) (White)
1Console Asm. (Includes Insert) (Black)
2Clip, BI-Metal
3W10258275 Whirlpool Dishwasher Bimetal Fuse
4WPW10348409 Whirlpool Screw
58193830 Whirlpool Dishwasher Door Latch Switch Kit
6WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
7WP8269209 Whirlpool Door Switch
8WP3400412 Whirlpool Dishwasher Screw
