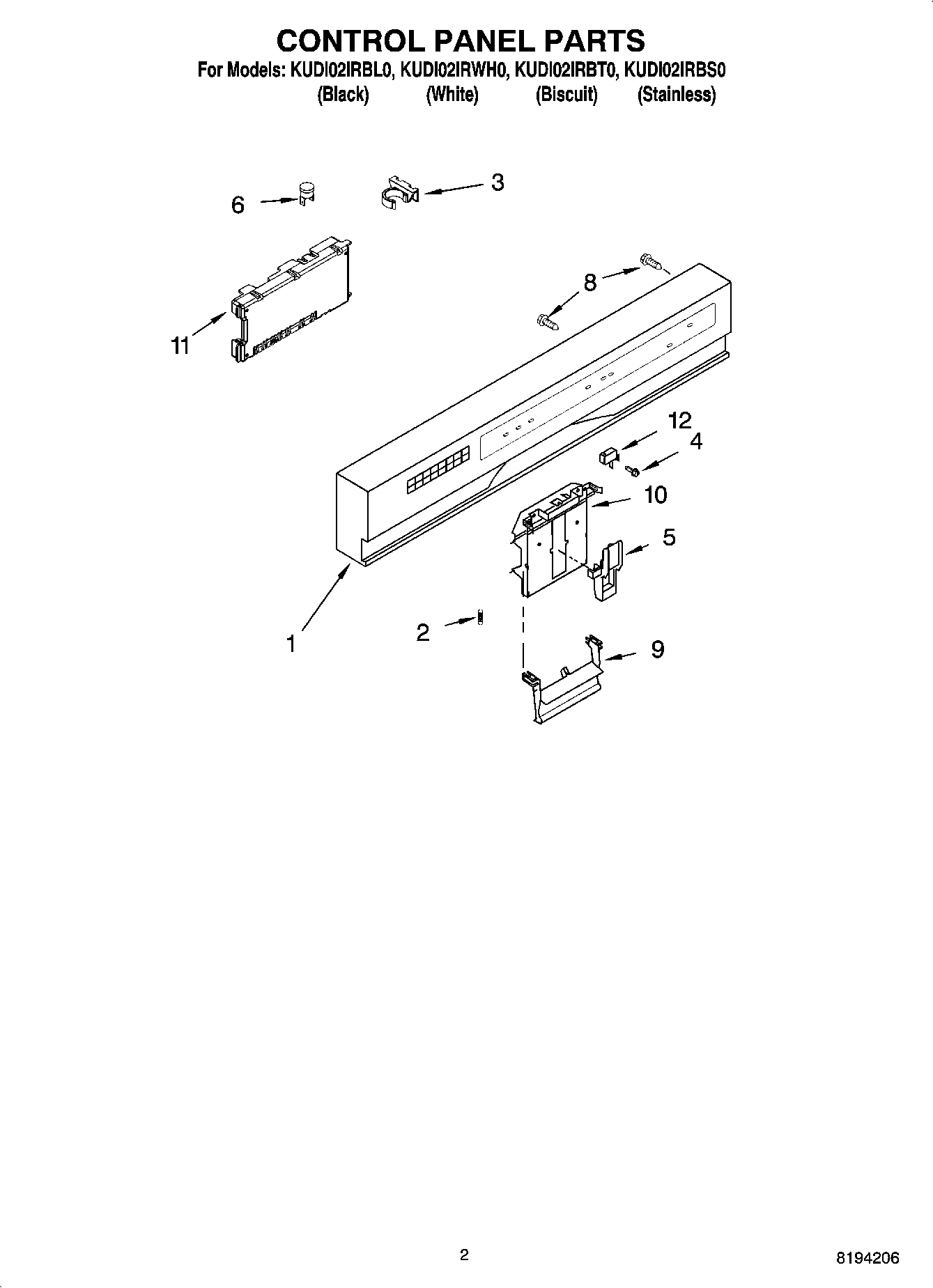

KUDI02IRBS0 02 – CONTROL PANEL PARTSadmin2025-04-26T12:02:38+00:00KUDI02IRBS0 02 – CONTROL PANEL PARTS ProductsPositionProduct1Console Assembly (Includes Insert) (Biscuit)1Console Assembly (Includes Insert) (White)1Console Assembly (Includes Insert) (Black)2WP8268540 Whirlpool Door Handle Spring3Clip, BI-Metal4WP3400412 Whirlpool Dishwasher Screw5WP8524471 Whirlpool Dishwasher Actuator6W10258275 Whirlpool Dishwasher Bimetal Fuse8WPW10348409 Whirlpool Screw9WP8269117 Whirlpool Dishwasher Handle108193882 Whirlpool Dishwasher Primary Latch Bolt11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board12WP8269209 Whirlpool Door Switch
