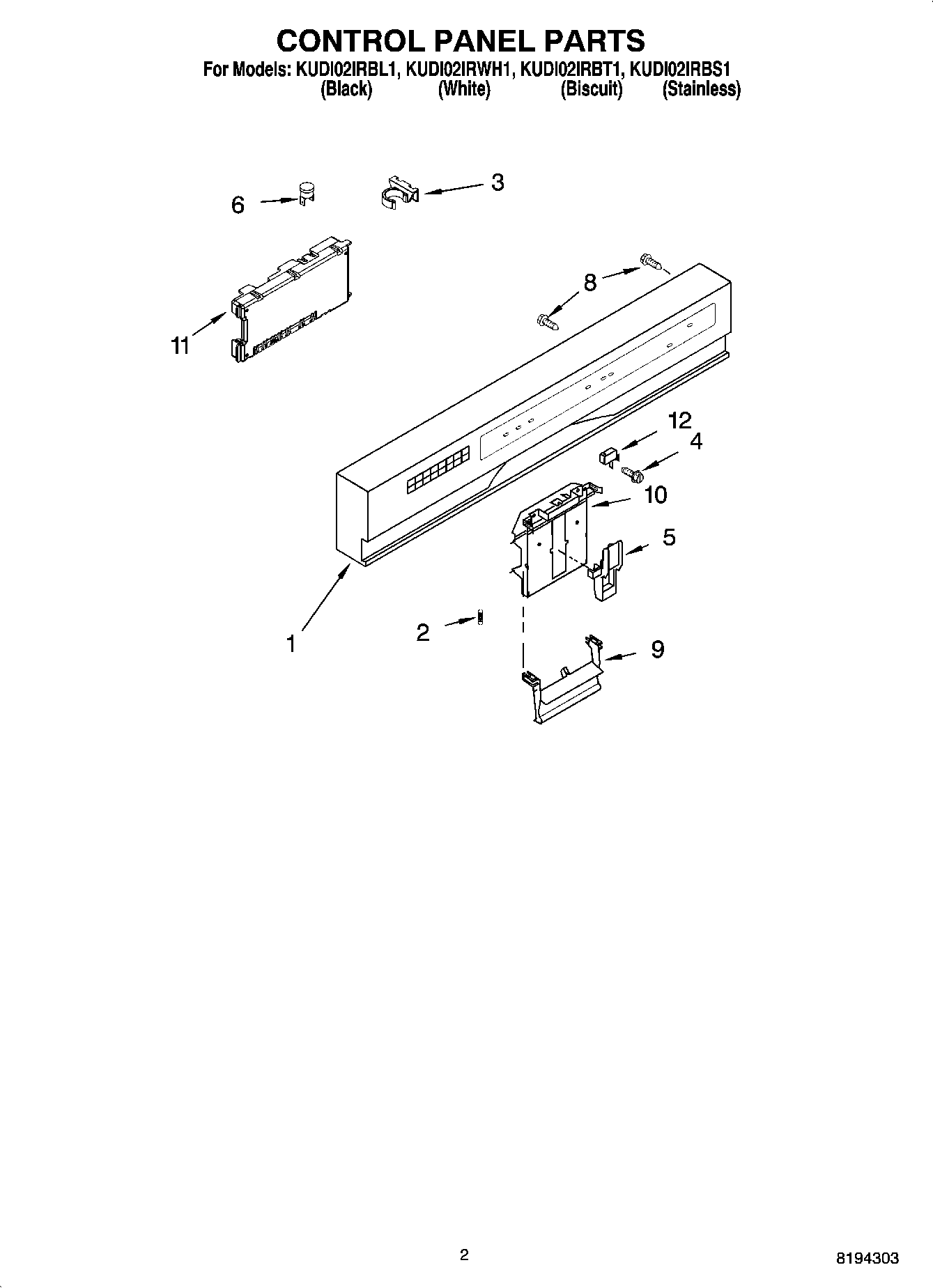

KUDI02IRBS1 02 – CONTROL PANEL PARTS

KUDI02IRBS1 02 – CONTROL PANEL PARTS

Written by

in

KUDI02IRBS1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert) (Biscuit)
1Console Assembly (Includes Insert) (White)
1Console Assembly (Includes Insert) (Black)
2WP8268540 Whirlpool Door Handle Spring
3Clip, BI-Metal
4WP3400412 Whirlpool Dishwasher Screw
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
8WPW10348409 Whirlpool Screw
9WP8269117 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12WP8269209 Whirlpool Door Switch
