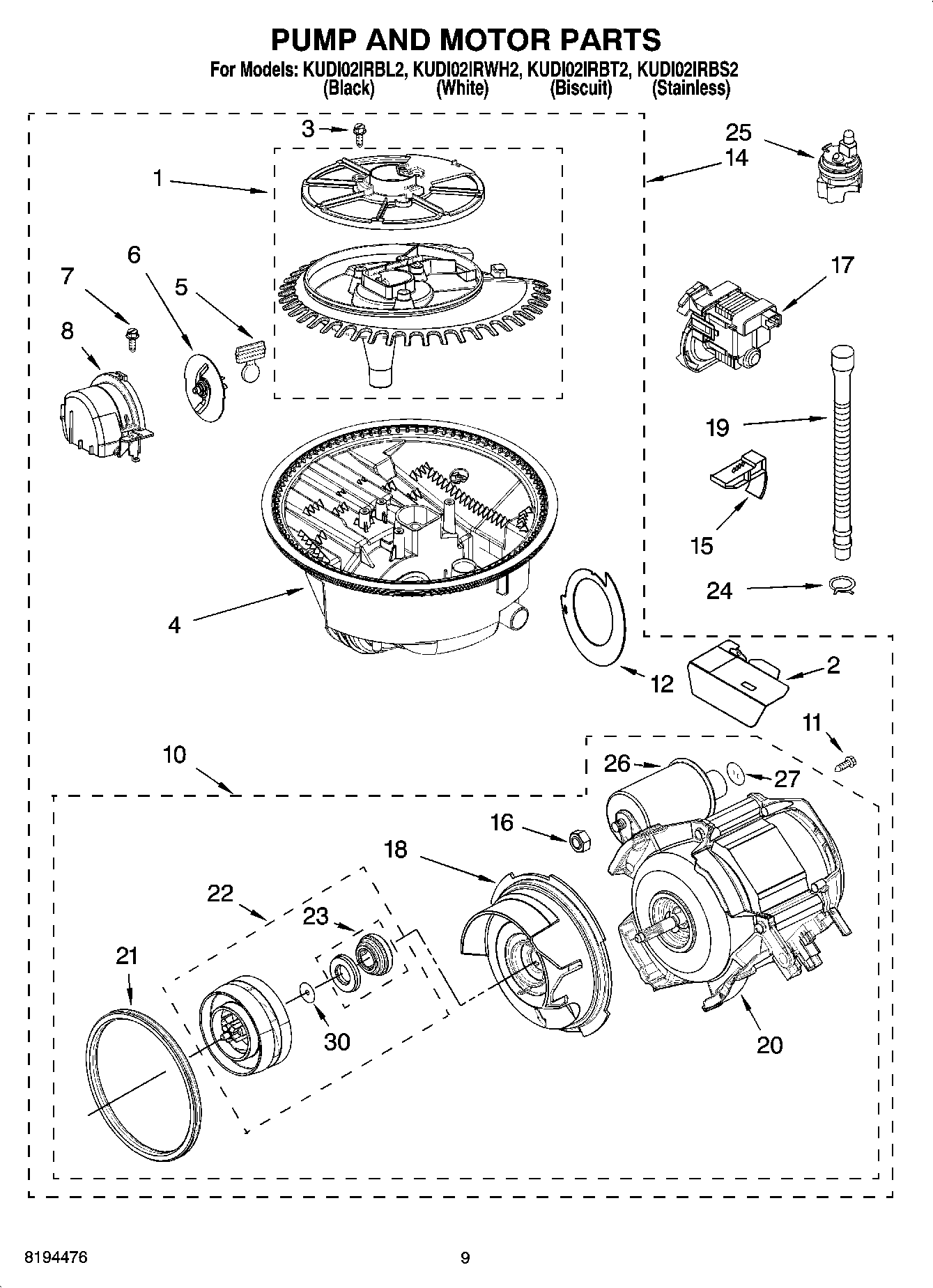

KUDI02IRBS2 08 – PUMP AND MOTOR PARTS

Products

Position	Product
1	8193918 Whirlpool Accumulator
2	8283527 Whirlpool Shield
3	Screw
4	WP8572618 Whirlpool Dishwasher Sump Assembly
5	WP8268375 Whirlpool Dishwasher Check Valve
6	W10083957V Whirlpool Dishwasher Chopper
7	WP9741232 Whirlpool Dishwasher Screw
8	WP8531857 Whirlpool Dishwasher Protector
11	3400217 Whirlpool Dishwasher Screw
12	8268391 Whirlpool Dishwasher Screen
14	PUMP&MOTOR
15	WPW10300599 Whirlpool Dishwasher Sump Tab
16	8533949 Whirlpool Dishwasher Nut
17	WPW10348269 Whirlpool Washer Drain Pump
19	8269144A Whirlpool Dishwasher Drain Hose
20	WPW10757217 Whirlpool Circulation Pump and Motor
21	W11622922 Whirlpool Dishwasher Volute
23	8193951A Whirlpool Impeller Assembly
24	WP356138 Whirlpool Hose Clamp
25	WPW10705575 Whirlpool Dishwasher Sensor
26	WPW10334457 Whirlpool Dishwasher Capacitor
27	8534946 Whirlpool Dishwasher Shield
30	WP8531018 Whirlpool Dishwasher Washer
