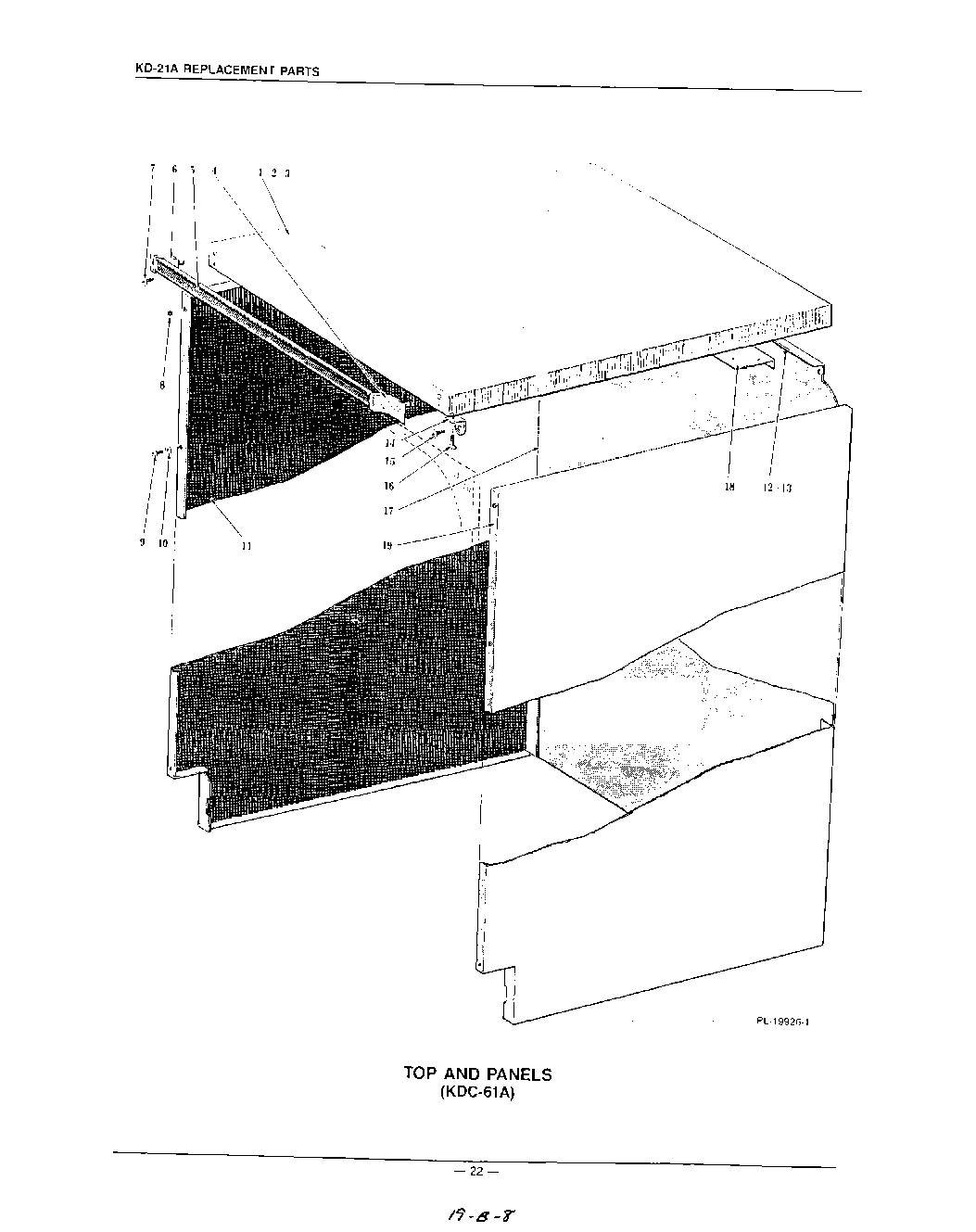

KUDI210S0 13 – TOP AND PANELS

Products

Position	Product
1	Wood Top & Insulation Assy. (W/Pull Bar) (Incls. items 3 thru 7)
2	Wood Top & Insulation Assy. (W/O Pull Bar) (Incls. item 3)
3	Wood Screw 10-13 x 3/4 Phil. Rd. Hd
4	End Cap - Guide Bar (R.H.)
5	Bar - Guide
6	End Cap - Guide Bar (L.H.)
7	Wood Screw 10-13 x 3/4 Phil. Oval Hd
8	Lock Washer
11	Side Panel (L.H.) (Almond)
11	Side Panel (L.H.) (Harvest Tone)
11	Side Panel (L.H.) (White)
12	Self-Tapping Screw 10-16 x 5/16 Phil. Truss Hd., Type AB
13	Washer
14	Bracket - Top Panel Anchor
15	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
16	Wood Screw 10-13 x 3/4 Phil. Flat Hd
17	Panel - Rear (Almond)
18	Bracket - Rear Panel Anchor
19	Side Panel (R.H.) (White)
19	Side Panel (R.H.) (Almond)
19	Side Panel (R.H.) (Harvest Tone)
