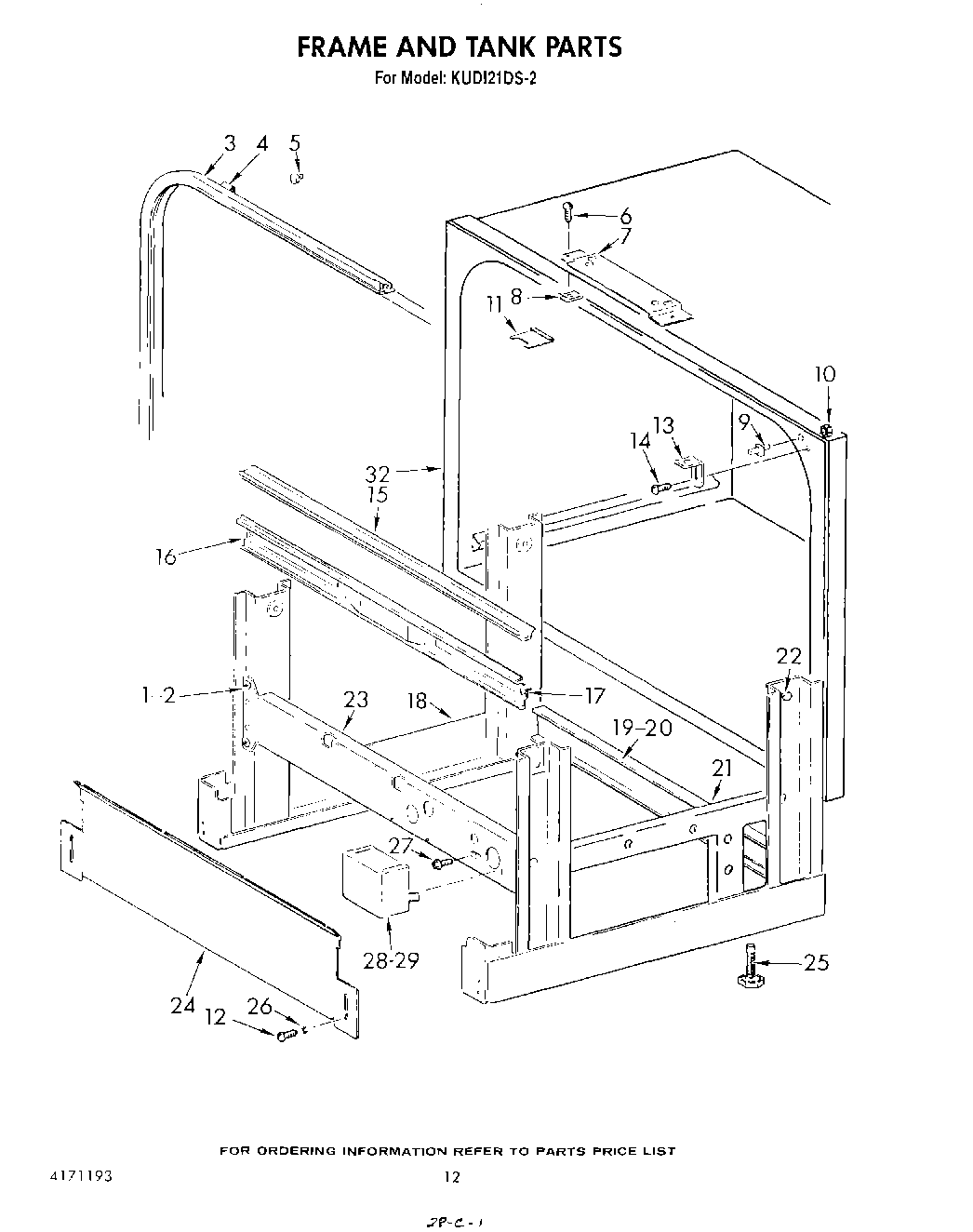

KUDI21DS2 10 – FRAME AND TANK

Products

Position	Product
1	Short Frame Assembly (Includes Items 2, 18, 19, 21, & 23)
3	Door Seal Assembly (Includes Item 4)
4	Clip, Seal
5	Bumper, Door
6	WP693304 Whirlpool Screw
7	Protector, Upper Water Inlet
8	Speed Nut
9	Actuator, Interlock Switch
10	Lock Nut
11	Keeper, Latch
12	Screw, 10-16 x 3/8
13	WP9741251 Whirlpool Mounting Bracket
14	Trim, Tank (Screw, 10-16 X 1/2)
15	Channel, Evaporation
16	Support, Evaporation Channel
17	Screw, 10-32 X 1/2
18	Frame Assembly (L.H.)
19	Cross Frame, Rear
20	Screw, 10-16 X 5/8
21	Frame Assembly (R.H.)
22	Screw (2)
23	Cross Frame, Front
24	Kick Board
25	Foot, Leveling (4)
26	Lock Washer No.10 Ext. Shake- proof
27	Screw
28	Enclosure, Elec. Supply
29	SCREW
32	Tank (Serviced Complete with Frame)
