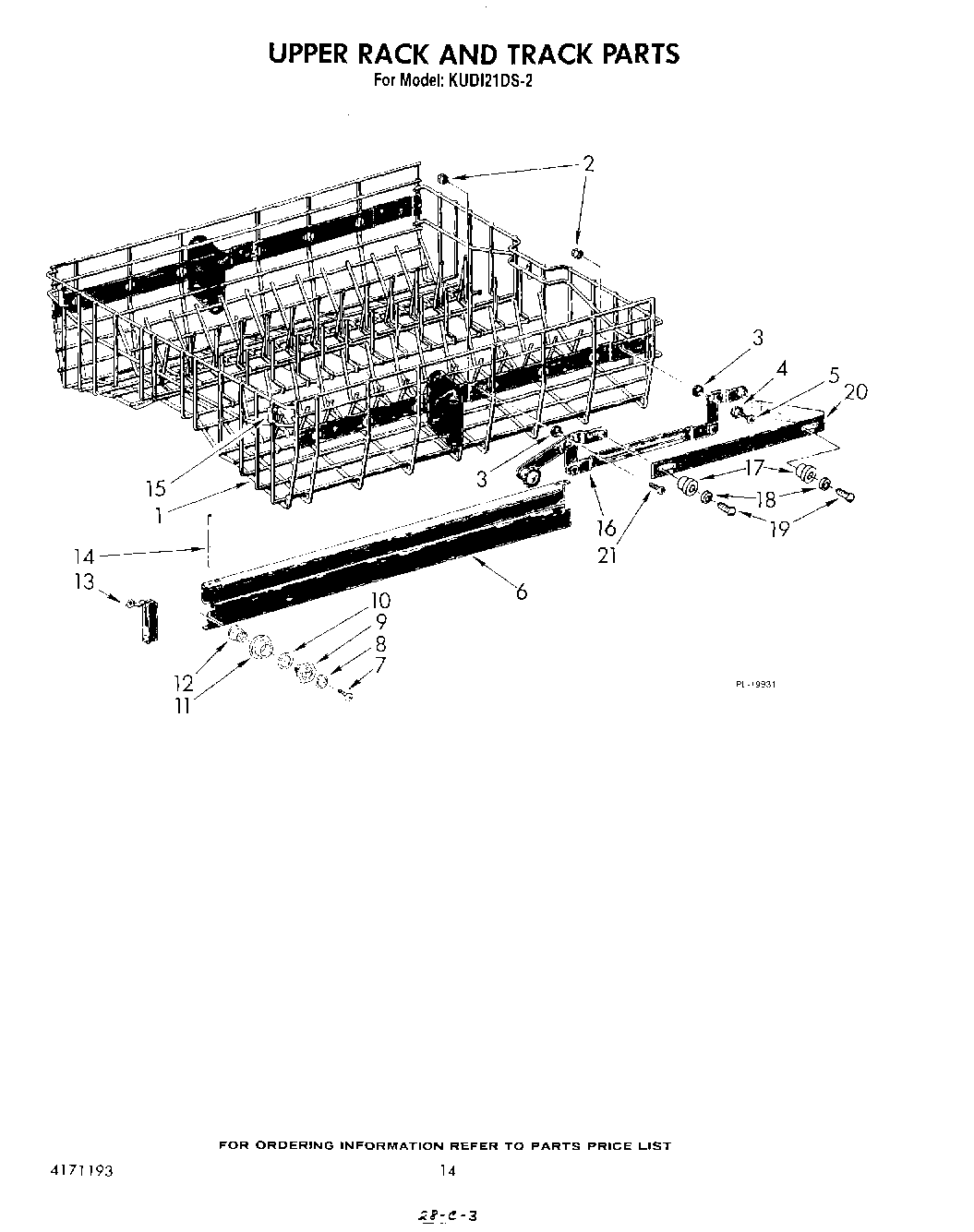

KUDI21DS2 11 – UPPER RACK AND TRACK
Written by
in
KUDI21DS2 11 – UPPER RACK AND TRACK
Products
Position
Product
1
Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2
Nut, Roller
3
Bearing & Spacer, Rack Roller
4
Washer
6
Track, Rack
7
Screw, 10-16 X 3/8
8
Gasket, Rack Stud
9
Stud, Rack Roller
10
Washer, Roller Spacing
11
Roller, Rack Track
12
Bushing, Rack Roller
13
Bumper, Rack Track
14
Stud, Bumper Retaining
15
Bumper, Upper Rack
16
Track, Adjustable (R.H.)
16
Track, Adjustable (L.H.)
17
Roller, Upper Rack Track
18
Washer
19
Screw, 8-32 X 1/4 (4)
20
Lift, Receiver (L.H.)
20
Lift, Receiver (R.H.)
21
Screw, 10-16 X 5/8
←
