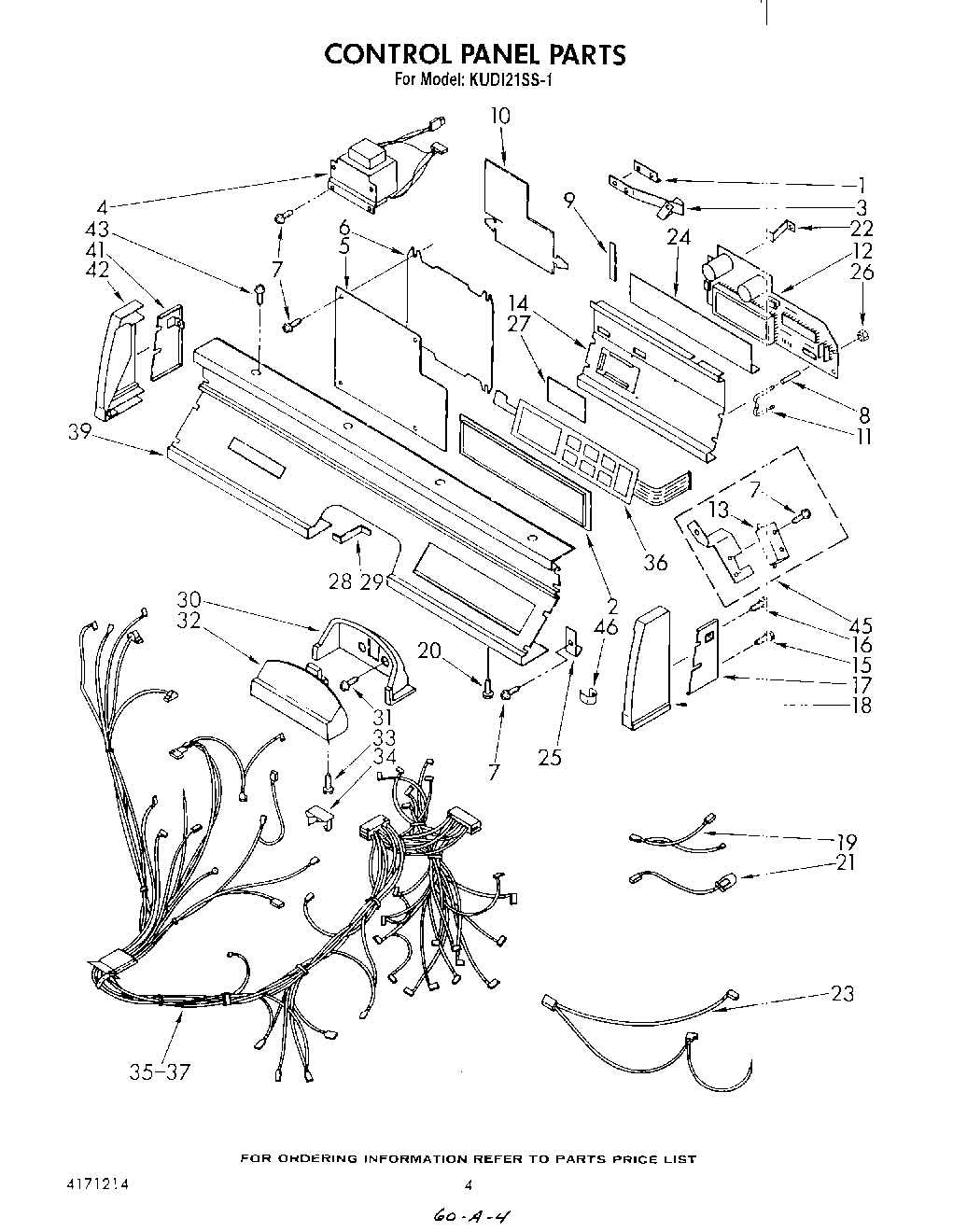

KUDI21SS1 04 – CONTROL PANEL , LIT/OPTIONAL

KUDI21SS1 04 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

KUDI21SS1 04 – CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	Vinyl Touch Up (Blue)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL LIT4177720
	WPL LIT4177566
	WPL LIT4171214
	WPL LIT4171139
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL LIT4171136
	72113 Whirlpool Touch-Up Paint
	Golden Harvest (Uncut)
	Golden Harvest
1	Spacer, Spring
2	Bezel
3	Spring, Interlock
4	Transformer
5	Cover, Relay Board
6	Relay Board
7	SCREW
8	Spacer, Circuit Board
9	Seal, Foam (2)
10	Insulator, Harness
11	Retainer
12	Display Controller Assy.
13	Switch, Interlock
14	Retaining Bracket
15	Screw & Washer Assy
16	WP681249 Whirlpool Screw Assembly
17	Spacer, End Cap (R.H.)
18	End Cap (R.H.)
19	Wiring Harness (Grounding)
20	Screw, 6-32 X 3/8
21	Lead (Fill Control to Fill Valve)
22	Clip, Grounding
23	Wiring Harness (Lower Common)
24	Shield, Display Board
25	Clip, Grounding (Front Panel)
26	Pushnut (4)
27	Window, Support
28	Bracket, Panel Reinforcement
29	Screw, 6-20 x 3/8
30	Trim, Handle
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	Wiring Harness (Main)
36	Switch, Membrane
37	WPL 4159349
39	Control Panel
41	Spacer, End Cap (L.H.)
42	End Cap (L.H.)
43	Screw, 6-20 x 3/8
45	Bracket, Door Switch Assy.
46	Clip, Endcap (2)
