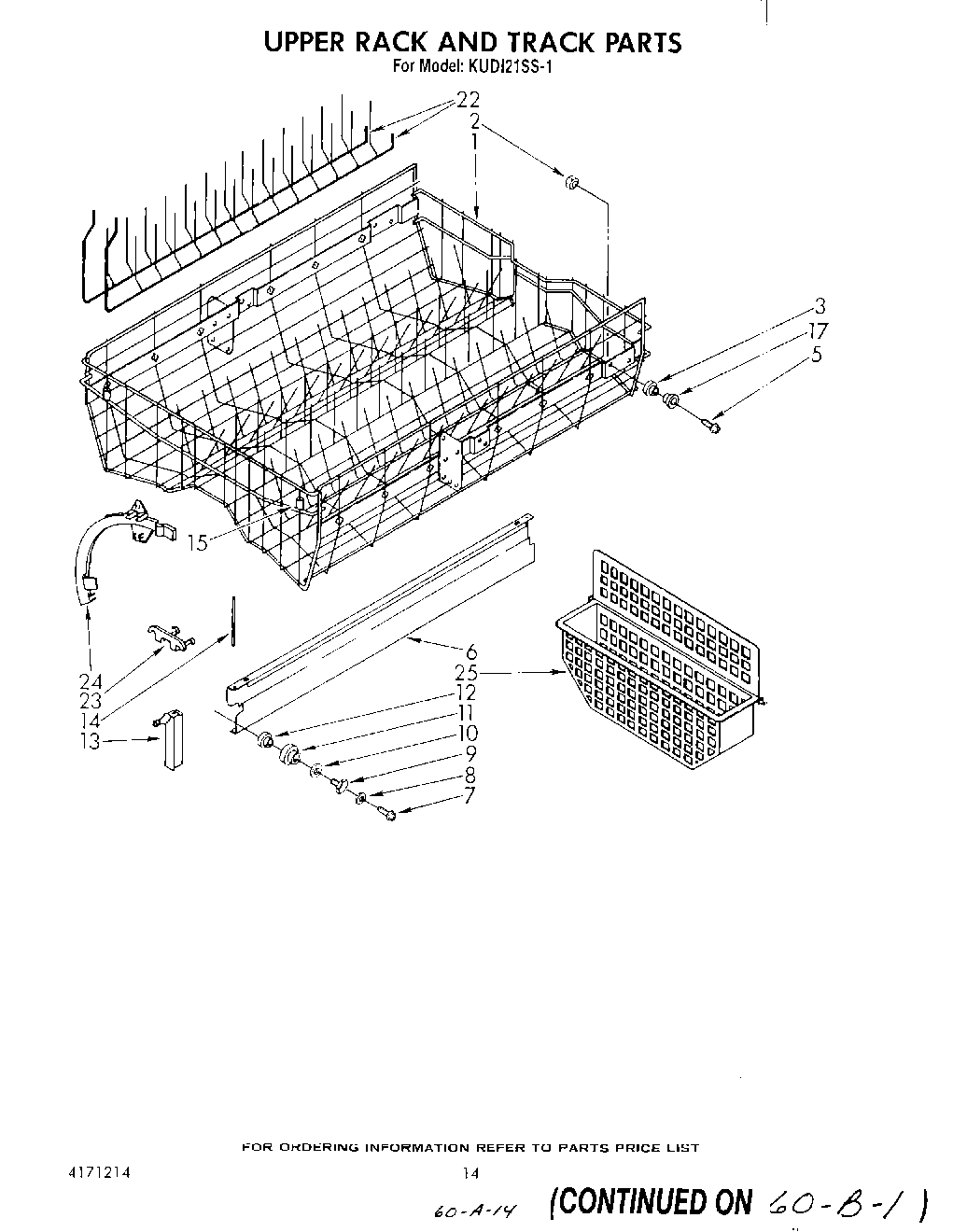

KUDI21SS1 11 – UPPER RACK AND TRACK

Products

Position	Product
1	Upper Rack Assy. (Incls. Items 2-15 & 17-24)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
5	Screw, 10-16 X 1
6	Track, Rack
7	Screw, 10-16 X 3/8
8	Gasket, Rack Stud
9	Stud, Rack Roller
10	Washer, Roller Spacing
11	Roller, Rack Track
12	Bushing, Rack Roller
13	Bumper, Rack Track
14	Stud, Bumper Retaining
15	Bumper, Upper Rack
17	Roller, Upper Rack Track
22	Partition
23	Clip, Partition (3)
24	Quadrant, Divider (R.H.)
24	Quadrant, Divider (L.H.)
25	W11175758 Whirlpool Dishwasher Basket Ware
