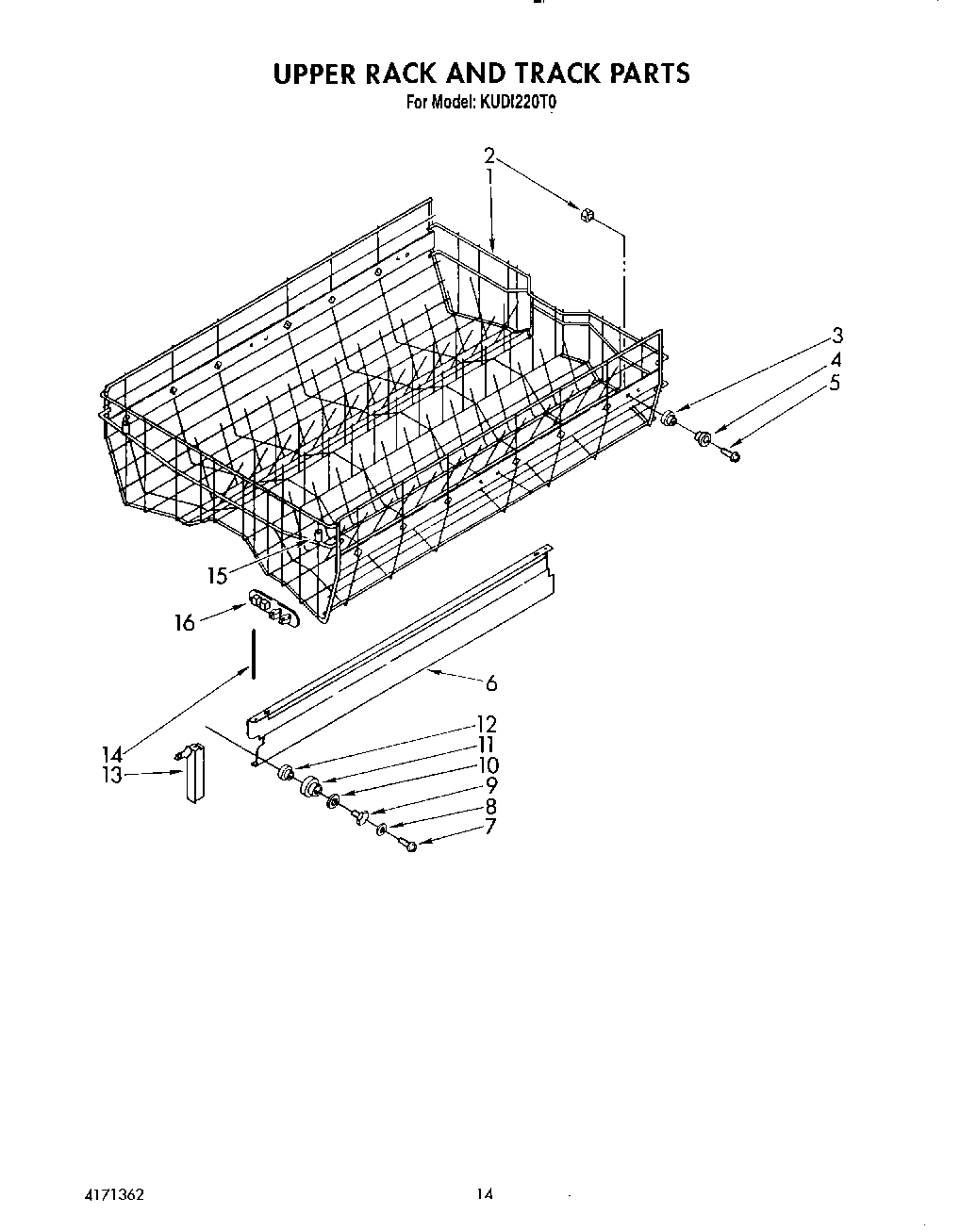

KUDI220T0 11 – UPPER RACK AND TRACK

Written by

Products

Position	Product
1	Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
4	Roller, Upper Rack Track
5	Screw, 10-16 X 1
6	Track, Rack
7	Screw, 10-16 X 3/8
8	Gasket, Rack Stud
9	Stud, Rack Roller
10	Washer, Roller Spacing
11	Roller, Rack Track
12	Bushing, Rack Roller
13	Bumper, Rack Track
14	Stud, Bumper Retaining
15	Bumper, Upper Rack
16	Clip, Wash Arm Guard
