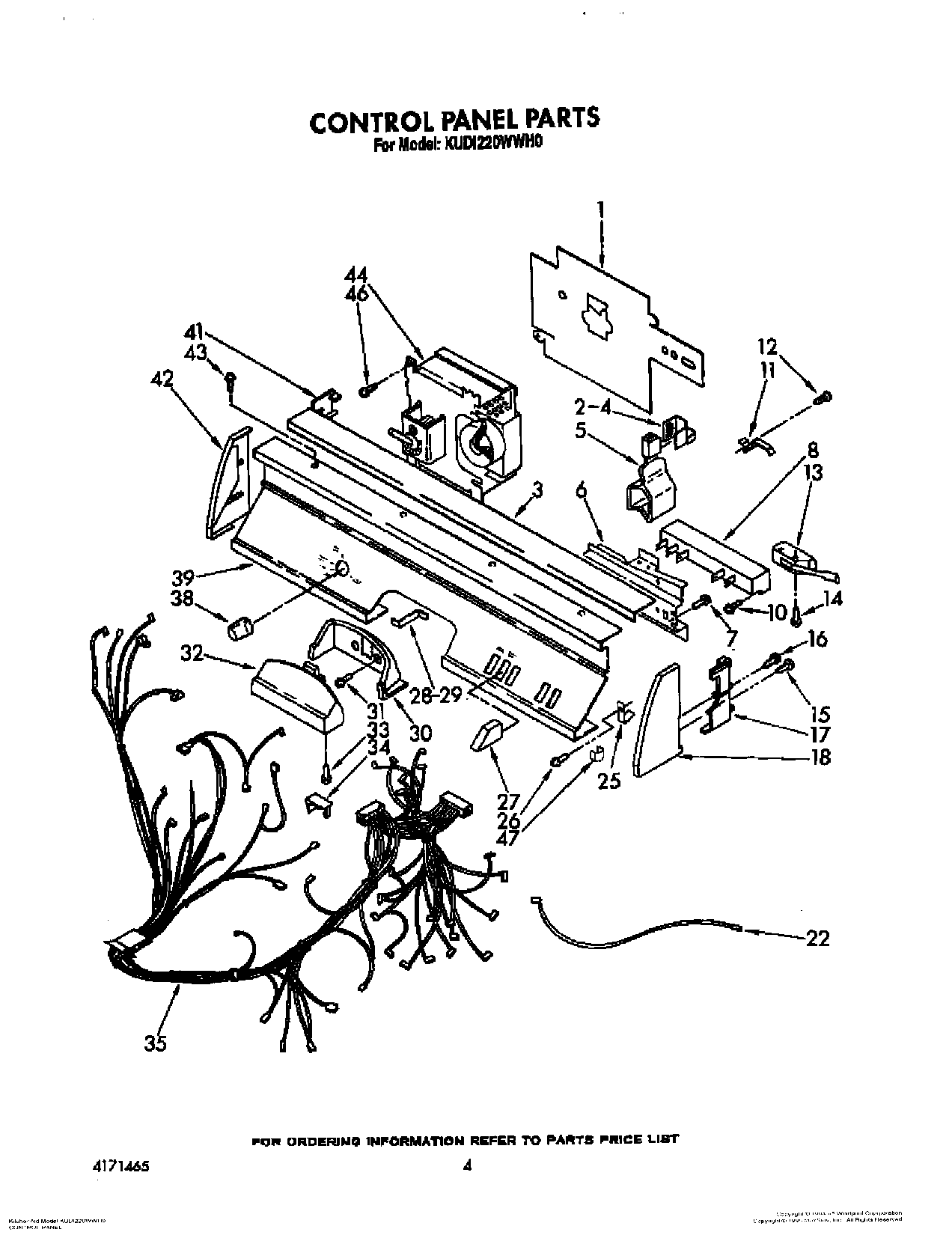

KUDI220WWH0 04 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	WPL LIT4171208
	WPL LIT4171465
	Vinyl Touch Up (Blue)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	WPL LIT4171206
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL LIT4171428
	Toast
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	Golden Harvest
	Paint, Spray (13 Oz.) (Platinum)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	WPL LIT9740073
	Golden Harvest (Uncut)
1	Insulator, Latch
2	Anchor, Cancel Spring
3	Trim, Console
4	Rivet
5	Spring, Switch Cancel
6	Bracket, Program Switch
8	Switch, Program
10	Screw, 10-16 X 5/8
11	Spring, Door Interlock
12	WP693304 Whirlpool Screw
13	Switch, Interlock
14	Screw (2)
15	Screw & Washer Assy
16	WP681249 Whirlpool Screw Assembly
17	Spacer, End Cap (R.H.)
18	End Cap (R.H.)
22	Lead Assembly (Interlock Switch to Program Switch)
25	Clip, Grounding (Front Panel)
27	Button, Program Switch (5)
28	Bracket, Panel Reinforcement
29	Screw, 6-20 x 3/8
30	Trim, Handle
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
38	Knob, Timer
39	Control Panel
41	Spacer, End Cap (L.H.)
42	End Cap (L.H.)
43	Screw, 6-20 x 3/8
44	Timer Assembly (115 V., 60 Hz.)
46	SCREW
47	Clip, Endcap (2)
