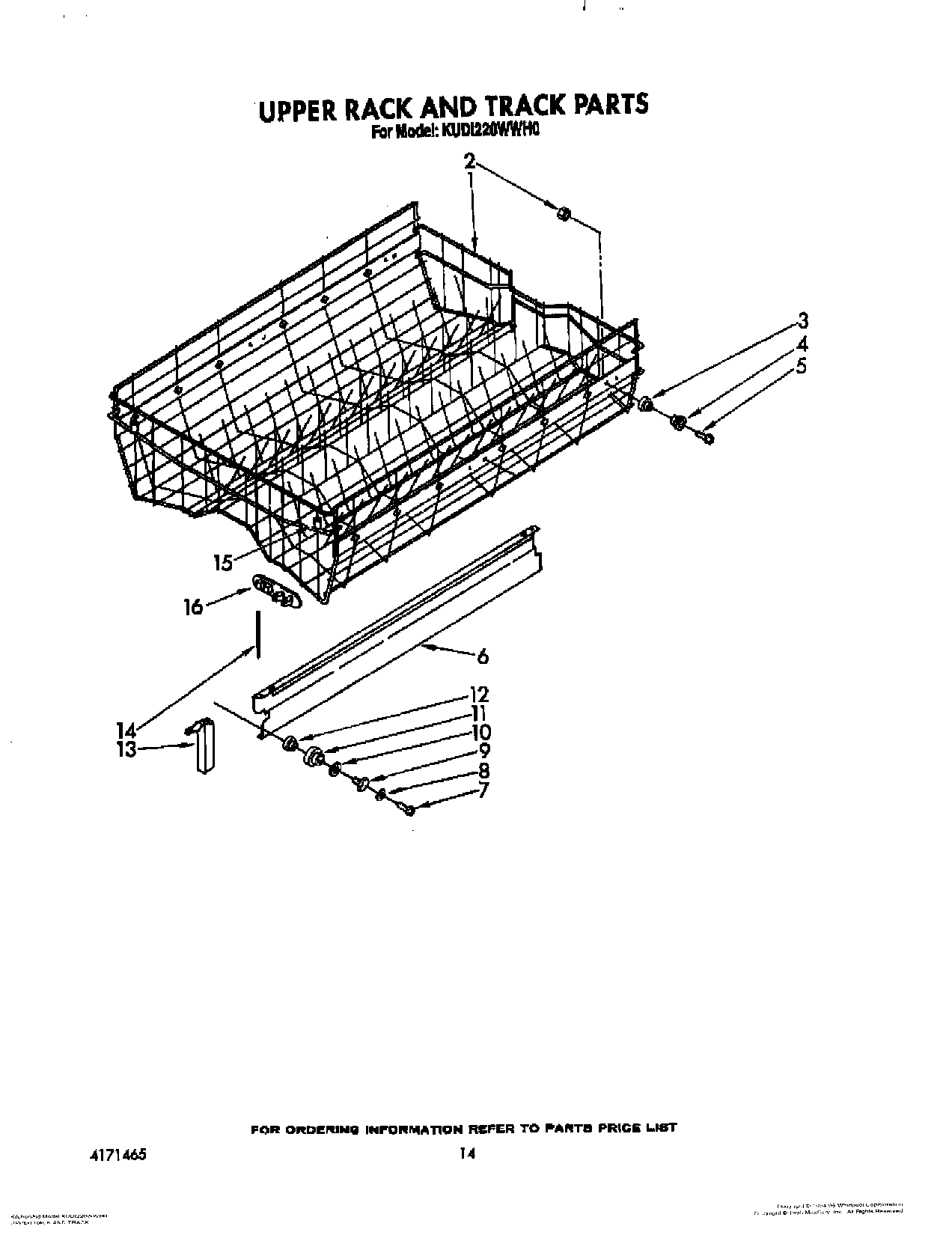

KUDI220WWH0 11 – UPPER RACK AND TRACKadmin2025-04-26T12:03:47+00:00KUDI220WWH0 11 – UPPER RACK AND TRACK
Products
| Position | Product |
|---|
| 1 | Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15) |
| 2 | Nut, Roller |
| 3 | Bearing & Spacer, Rack Roller |
| 4 | Roller, Upper Rack Track |
| 5 | Screw, 10-16 X 1 |
| 6 | Track, Rack |
| 7 | Screw, 10-16 X 3/8 |
| 8 | Gasket, Rack Stud |
| 9 | Stud, Rack Roller |
| 10 | Washer, Roller Spacing |
| 11 | Roller, Rack Track |
| 12 | Bushing, Rack Roller |
| 13 | Bumper, Rack Track |
| 14 | Stud, Bumper Retaining |
| 15 | Bumper, Upper Rack |
| 16 | Clip, Wash Arm Guard |
