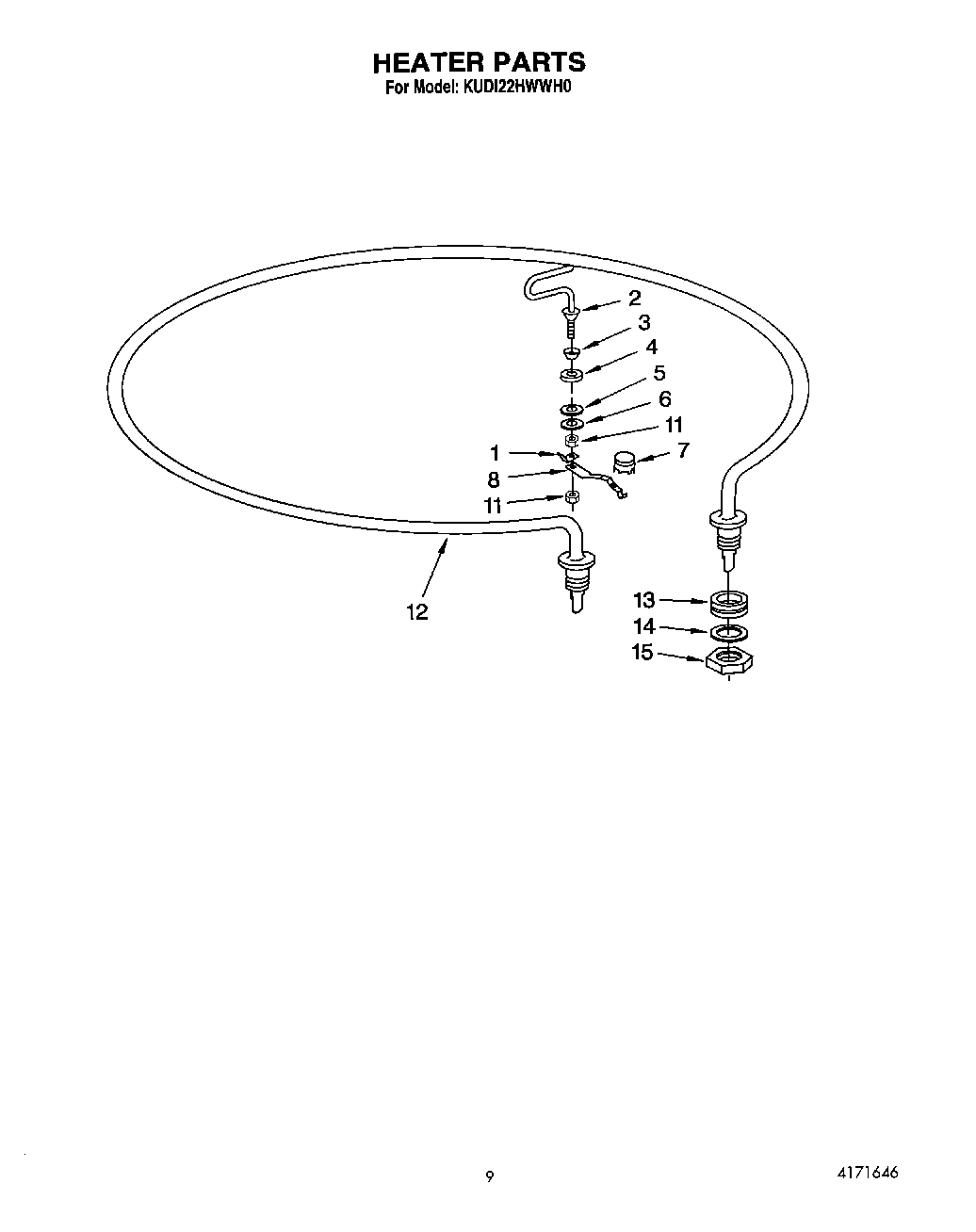

KUDI22HWWH0 07 – HEATER

KUDI22HWWH0 07 – HEATER

Written by

in

KUDI22HWWH0 07 – HEATER

Products

PositionProduct
1Limiter Ground Terminal
2Hook, Heater Element
3Washer
4Washer, Sealing
5Washer
6Washer
7Thermostat
8Bracket, Thermostat
11Nut, Lock
12Element, Heater
13Grommet, Heater Element
14Washer, Heater Element
15Nut, Heater Element
