KUDI22HWWH1 07 – HEATER – Aparts

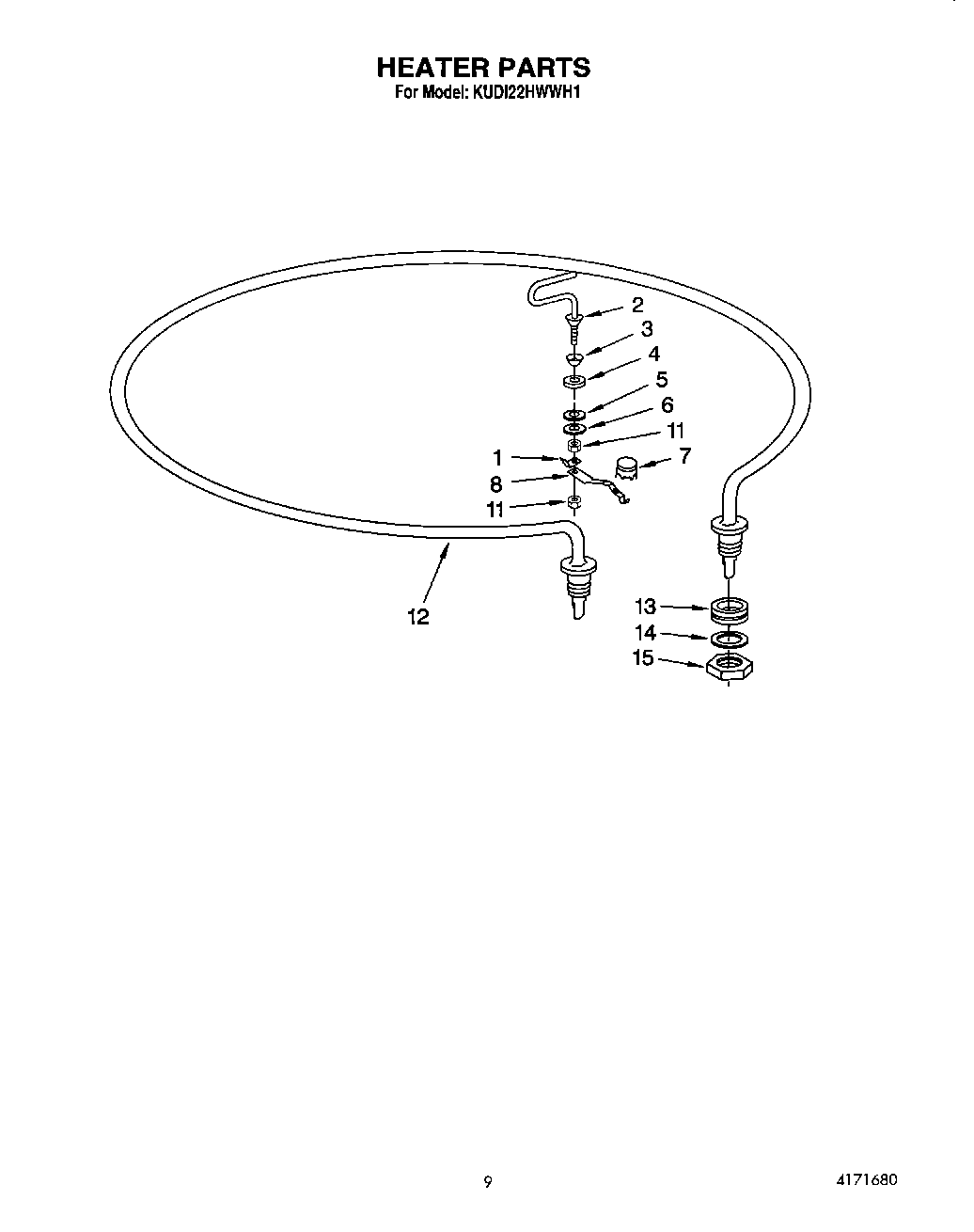

KUDI22HWWH1 07 – HEATER

Products

Position	Product
1	Limiter Ground Terminal
2	Hook, Heater Element
3	Washer
4	Washer, Sealing
5	Washer
6	Washer
7	Thermostat
8	Bracket, Thermostat
11	Nut, Lock
12	Element, Heater
13	Grommet, Heater Element
14	Washer, Heater Element
15	Nut, Heater Element
