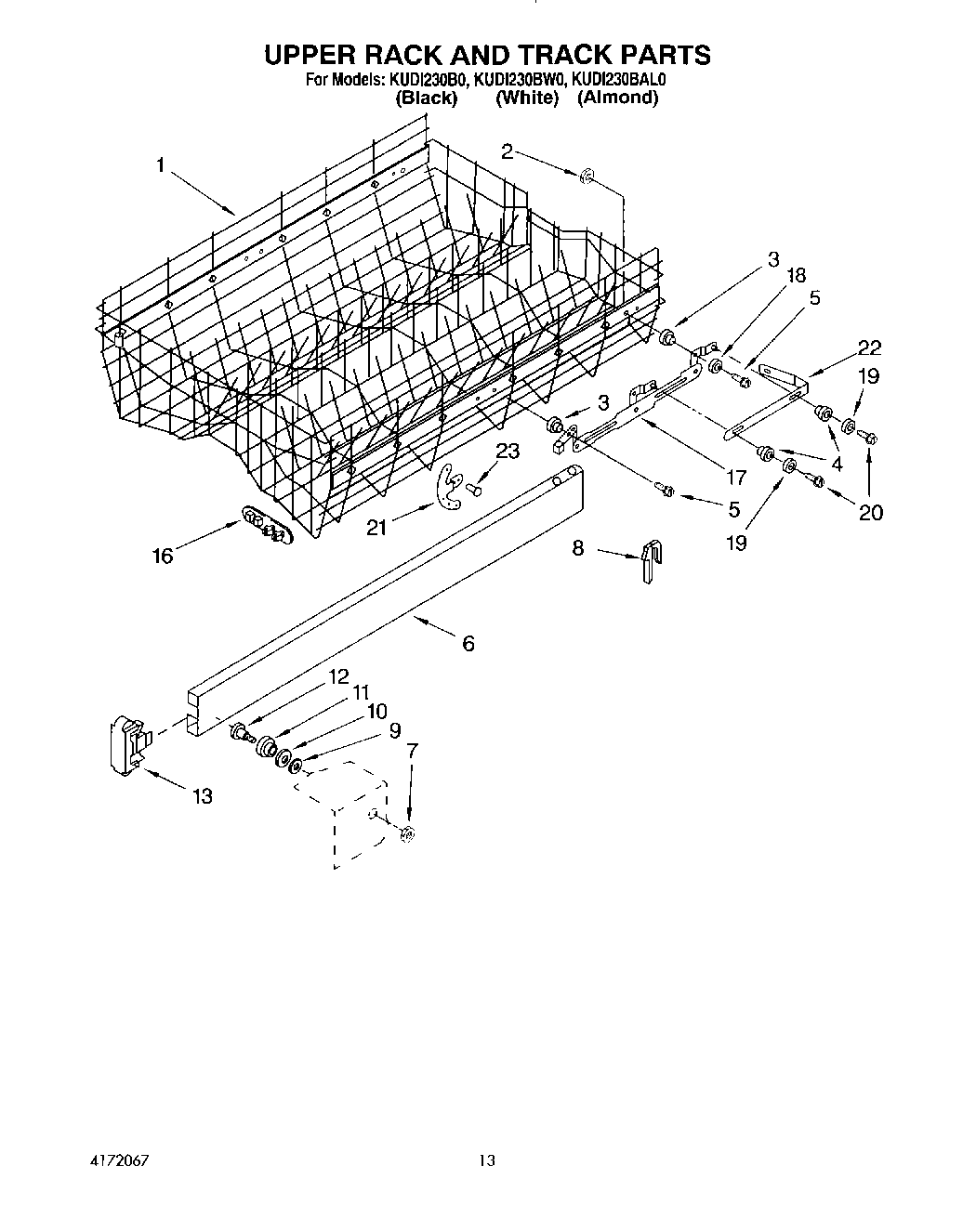

KUDI230BW0 10 – UPPER RACK AND TRACK

Products

Position	Product
1	Upper Rack Assembly (Includes Items 2, 3, 5, 15 & 18)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
4	Roller, Upper Rack Track (4)
5	Screw, 10-16 X 5/8
6	Track, Rack
7	Nut, Lock
8	Stop, Track (2)
9	Washer
10	Washer, Cup
11	Roller, Rack Track
12	Screw, Track Roller
13	Endcap, Front or Rear (2)
16	Clip, Wash Arm Guard
17	Track, Adjustable (L.H.)
17	Track, Adjustable (R.H.)
18	Washer
19	Washer
20	Screw, 8-32 X 1/4
21	Rackstop (L.H.)
21	Rackstop (R.H.)
22	Lift, Receiver (L.H.)
22	Lift, Receiver (R.H.)
23	Rivet
