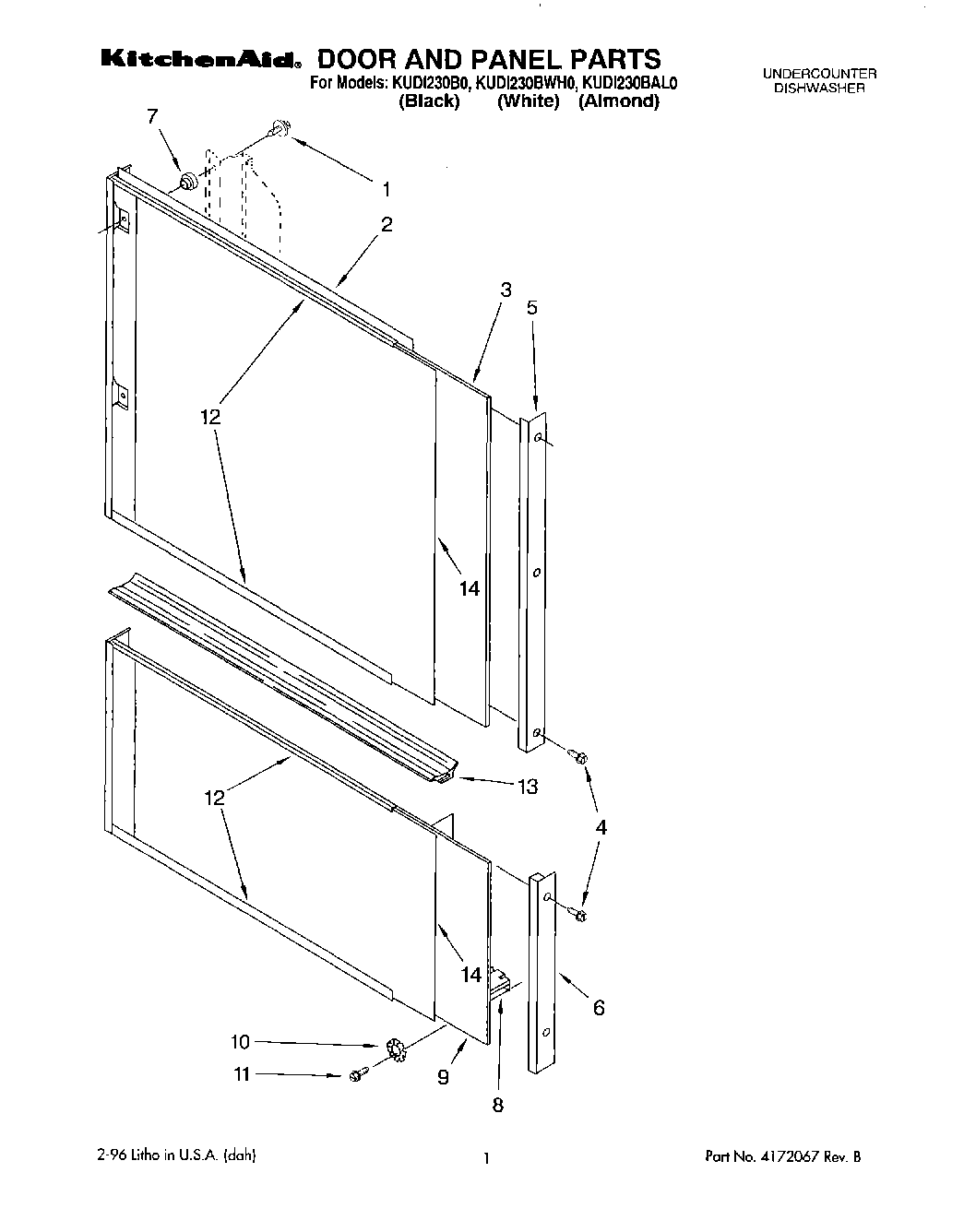

KUDI230BWH0 01 – DOOR AND PANEL

Products

PositionProduct
1Screw
2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (White Model)
2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (Almond Model)
2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)
3Filler (Upper Panel)
4Screw (Black Model)
4Screw (Almond Model)
4Screw (White Model)
5Side Trim (Upper Panel) (White Model)
5Side Trim (Upper Panel) (Almond Model)
5Side Trim (Upper Panel) (Black Model)
6Side Trim (Lower Panel) (Almond Model)
6Side Trim (Lower Panel) (White Model)
6Side Trim (Lower Panel) (Black Model)
7Grommet, Panel
8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (White Model)
8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (Almond Model)
8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)
9Filler (Lower Panel)
10Lock Washer No.10 Ext. Shake- proof
11WP693304 Whirlpool Screw
12Trim, Panel (Upper & Lower) (Black Model)
12Trim, Panel (Upper & Lower) (Almond Model)
12Trim, Panel (Upper & Lower) (White Model)
13Channel, Evaporation
14Panel Insert Kits (White/Black)
14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Almond)
14Panel Insert Kits (OPTIONAL KITS) (Fresh Avocado/ Coffee)
14Panel Insert Kits (OPTIONAL KITS) (Almond/White)
14Panel Insert Kits (OPTIONAL KITS) (Stainless Steel)
14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Onyx Black)
