KUDI23HB0 03 – CONTROL PANEL, LIT/OPTIONAL

KUDI23HB0 03 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KUDI23HB0 03 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT9742002
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Adjustable Kickboard Kit
	White (R.H.)
	Almond (R.H.)
	White (L.H.)
	Almond (L.H.)
	WPL 9741358
	WPL LIT9741870
	WPL LIT9742114
	WPL LIT9742141
	Wood Top Kit
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	285006 Whirlpool Spray
	WPL 72112
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	350930 Whirlpool White Spray Paint
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast

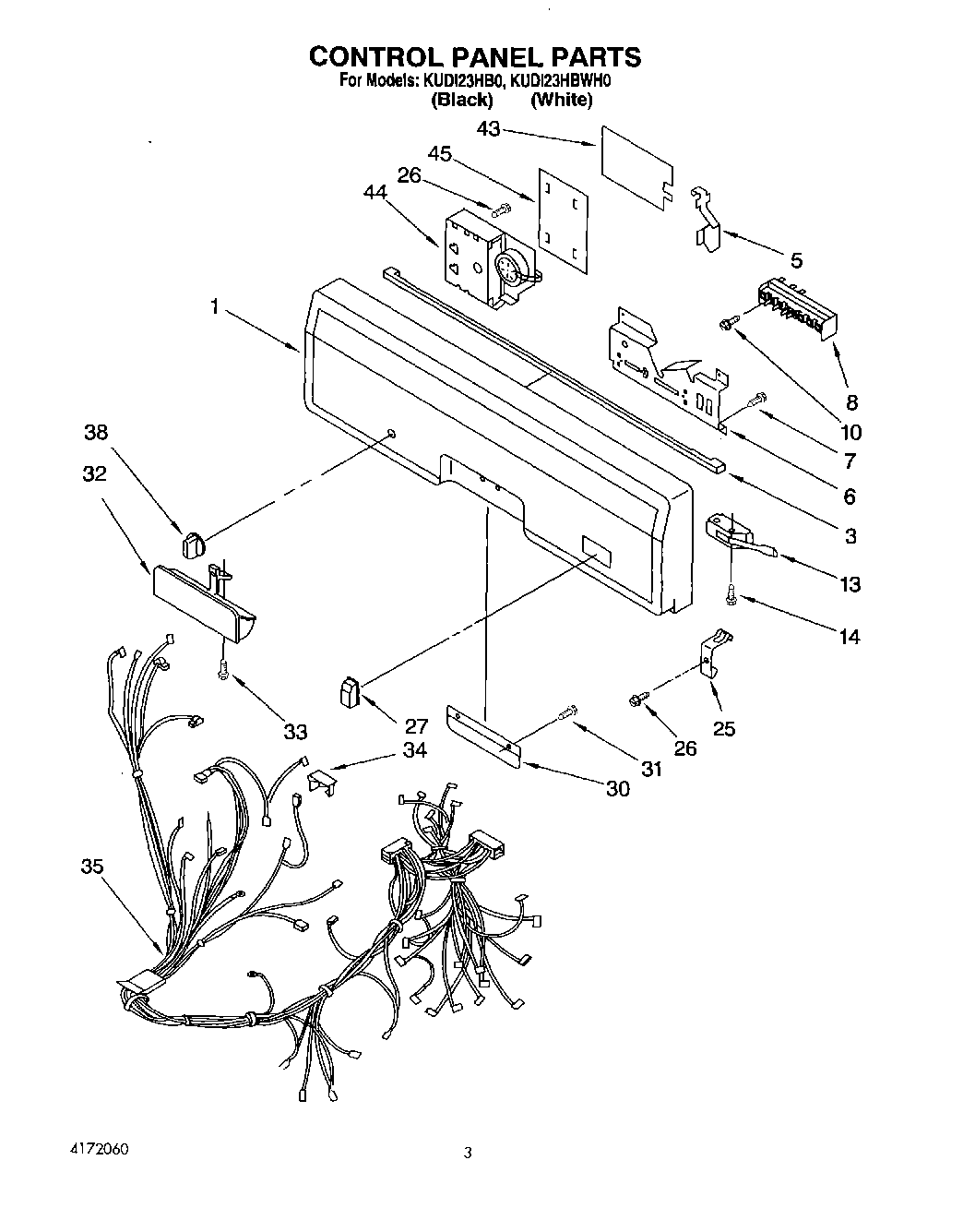

1	Control Panel (Includes: Insert, No.3 Seal, and No.30 Bracket) (Black Model)
1	Control Panel (Includes, Insert, No.3 Seal, and No.28 Bracket) (White Model)
3	Seal, Control Panel
5	Spring, Switch Cancel
6	Bracket, Program Switch
7	SCREW
8	Switch, Program
10	Screw, 10-16 X 5/8
13	Switch, Interlock
14	W11596033 Whirlpool Microwave Screw
25	Clip, Grounding (Front Panel)
26	Screw, 8-18 x 1/2
27	Button, Program Switch (4) (Black Model)
27	Button, Program Switch (4) (White Model)
30	Bracket, Support
31	Screw, 8-32 x 1/2 (Black Model)
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch (Black Model)
32	Handle, Latch (White Model)
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	Wiring Harness (Main)
35	WPL 4159349
38	Knob, Timer (White Model)
38	Knob, Timer (Black Model)
43	Shield, Timer
44	Timer Assembly
45	Barrier, Timer
