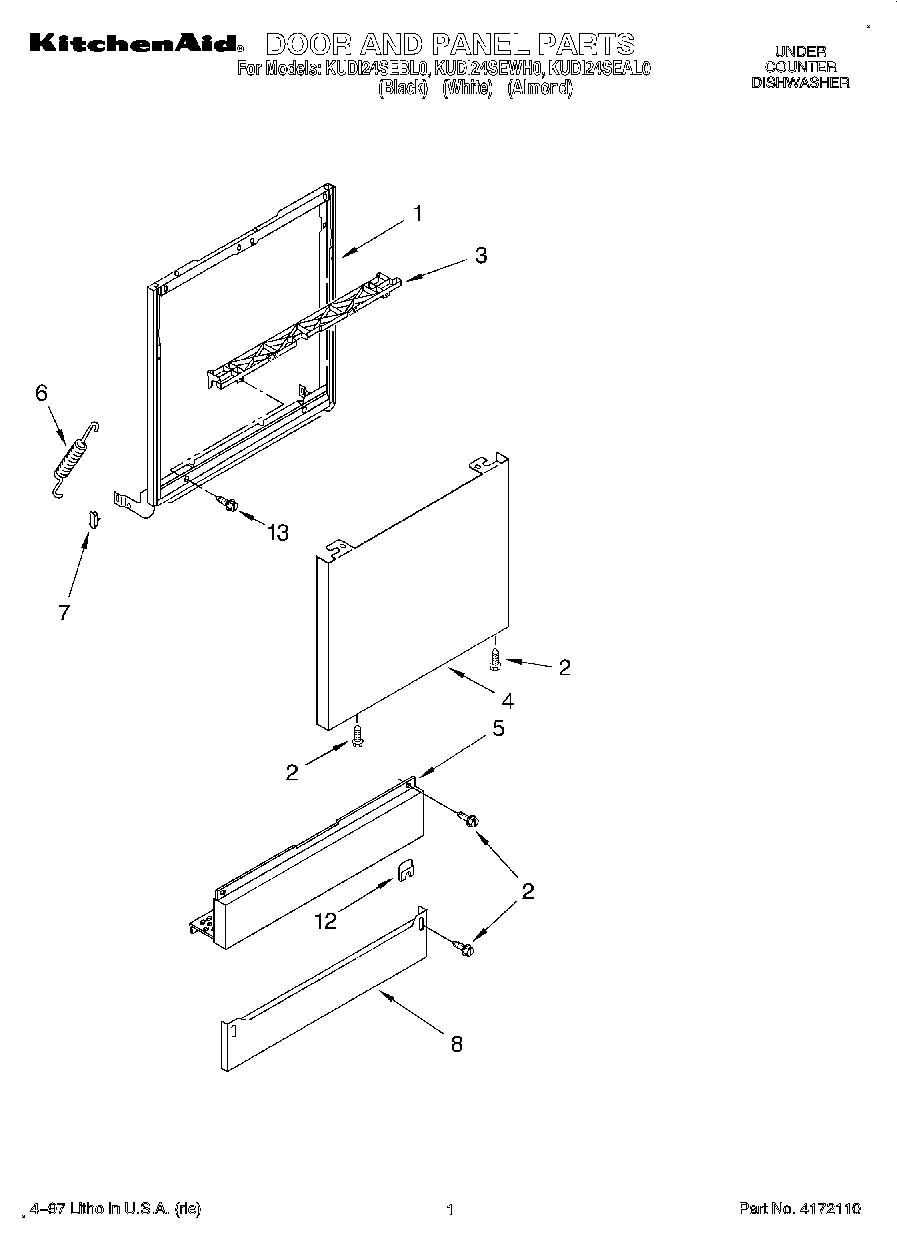

KUDI24SEAL0 01 – DOOR AND PANEL

KUDI24SEAL0 01 – DOOR AND PANEL

Written by

in

KUDI24SEAL0 01 – DOOR AND PANEL

Products

PositionProduct
1WP9743028 Whirlpool Dishwasher Frame
2WP302868 Whirlpool Screw
3Stiffener, Door
4Panel Front (Almond Model)
4Panel Front (White Model)
4Panel Front (Black Model)
5Access Panel & Clip Assembly (Almond Model)
5Access Panel & Clip Assembly (White Model)
5Access Panel & Clip Assembly (Black Model)
6WP9743986 Whirlpool Spring
7WP3373234 Whirlpool Dishwasher Bearing
8Toe Panel (Includes Item 11) (Almond Model)
8WP3379920 Whirlpool Dishwasher Toe Panel
8WP3379921 Whirlpool Dishwasher Toe Panel
12Clip, Grounding
13WP308685 Whirlpool Microwave Screw
