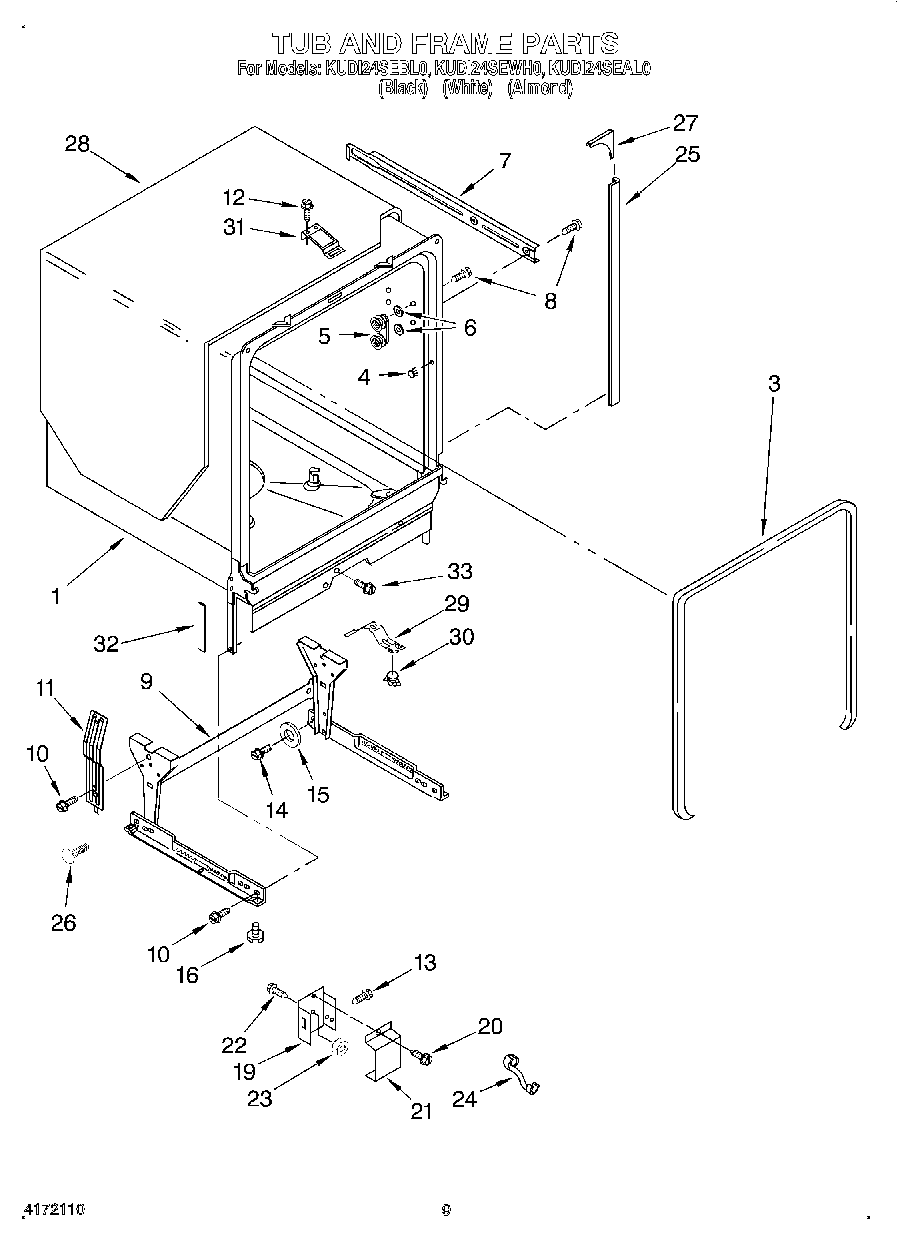

KUDI24SEAL0 08 – TUB AND FRAME

Products

Position	Product
1	Tub Assembly
3	W11196317 Whirlpool Dishwasher Door Gasket
4	Plug Tub (2)
5	Wheel & Mount Assembly (Also Order Item 6)
6	WP9743002 Whirlpool Dishwasher Gasket
7	Tub Stiffener
8	WPW10349488 Whirlpool Screw
9	Rear Support Assembly
10	SCREW
11	Connector Tub To Brace
12	WP90767 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
14	Screw (2)
15	WP302819 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
19	Box, Terminal
20	Screw
21	300068 Whirlpool Dishwasher Cover Assembly
22	WP250830 Whirlpool Refrigerator Screw
23	WP488130 Whirlpool Air Conditioner Nut
24	Relief, Strain
25	Trim Strip, Tub
26	WP304666 Whirlpool Dishwasher Retainer
27	Corner Trim, Tub
28	Shield, Sound Tub
29	9742648 Whirlpool Dishwasher Stat Bracket
30	WP661566 Whirlpool High Limit Thermostat
31	Strike, Latch
32	Pad, Friction
33	WP489128 Whirlpool Refrigerator Screw
