KUDI25CHBS0 06 – FILL AND OVERFILL

KUDI25CHBS0 06 – FILL AND OVERFILL

Written by

in

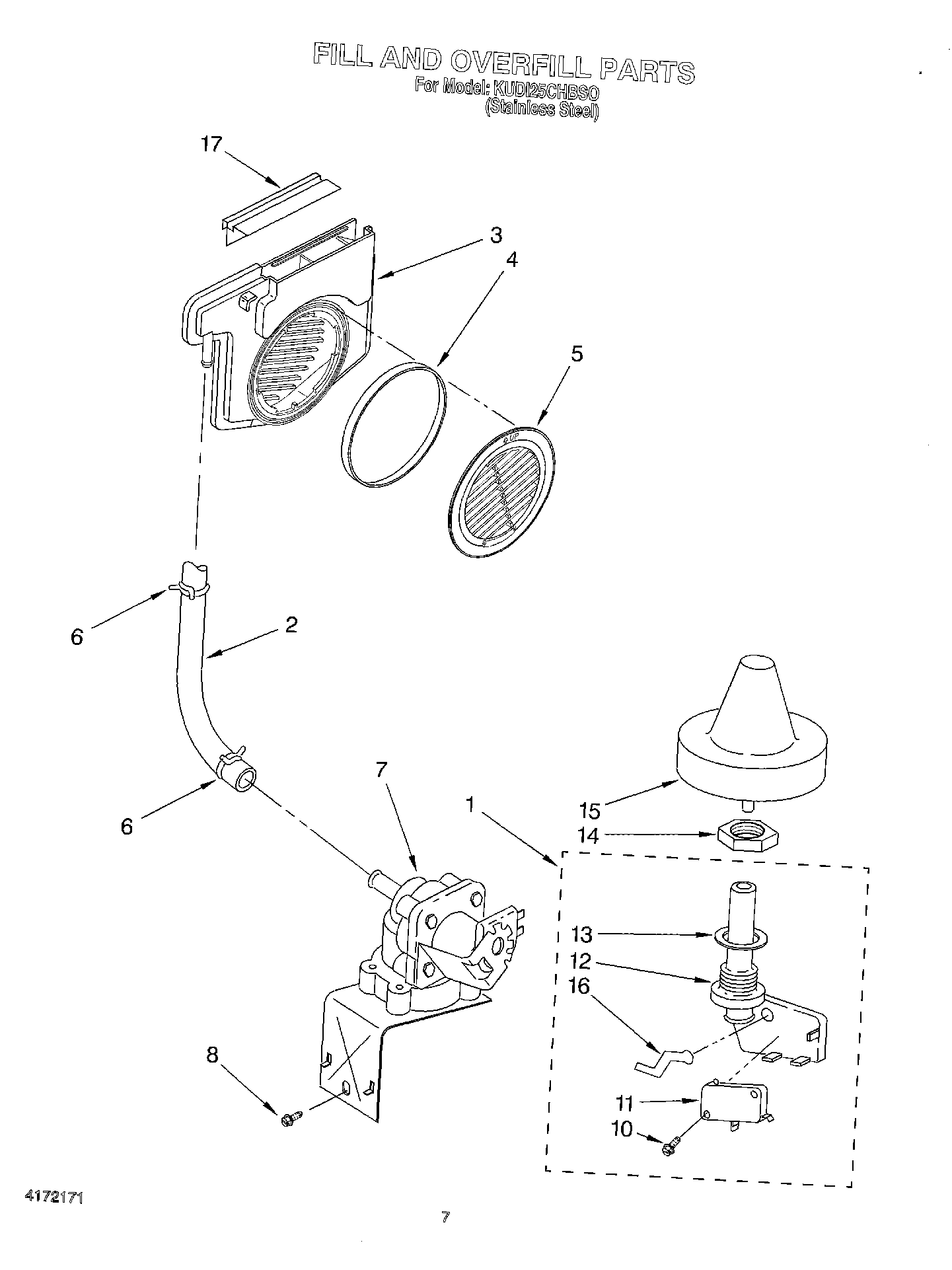

KUDI25CHBS0 06 – FILL AND OVERFILL

Products

PositionProduct
1W10207863 Whirlpool Dishwasher Switch
2WP9742727 Whirlpool Dishwasher Fill Hose
3Water Inlet Assembly (Includes Items 4 & 5)
4Gasket
5Bezel, Inlet
6WP596669 Whirlpool Hose Clamp
7W10844024 Whirlpool Water Inlet Valve
8WP489069 Whirlpool Compactor Screw
10Screw
11Switch, Overfill Control
12WP9741997 Whirlpool Dishwasher Standpipe
13WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14WP9741998 Whirlpool Dishwasher Nut
15Float & Retainer Assembly
16Lever, Overflow Switch
17Flapper
