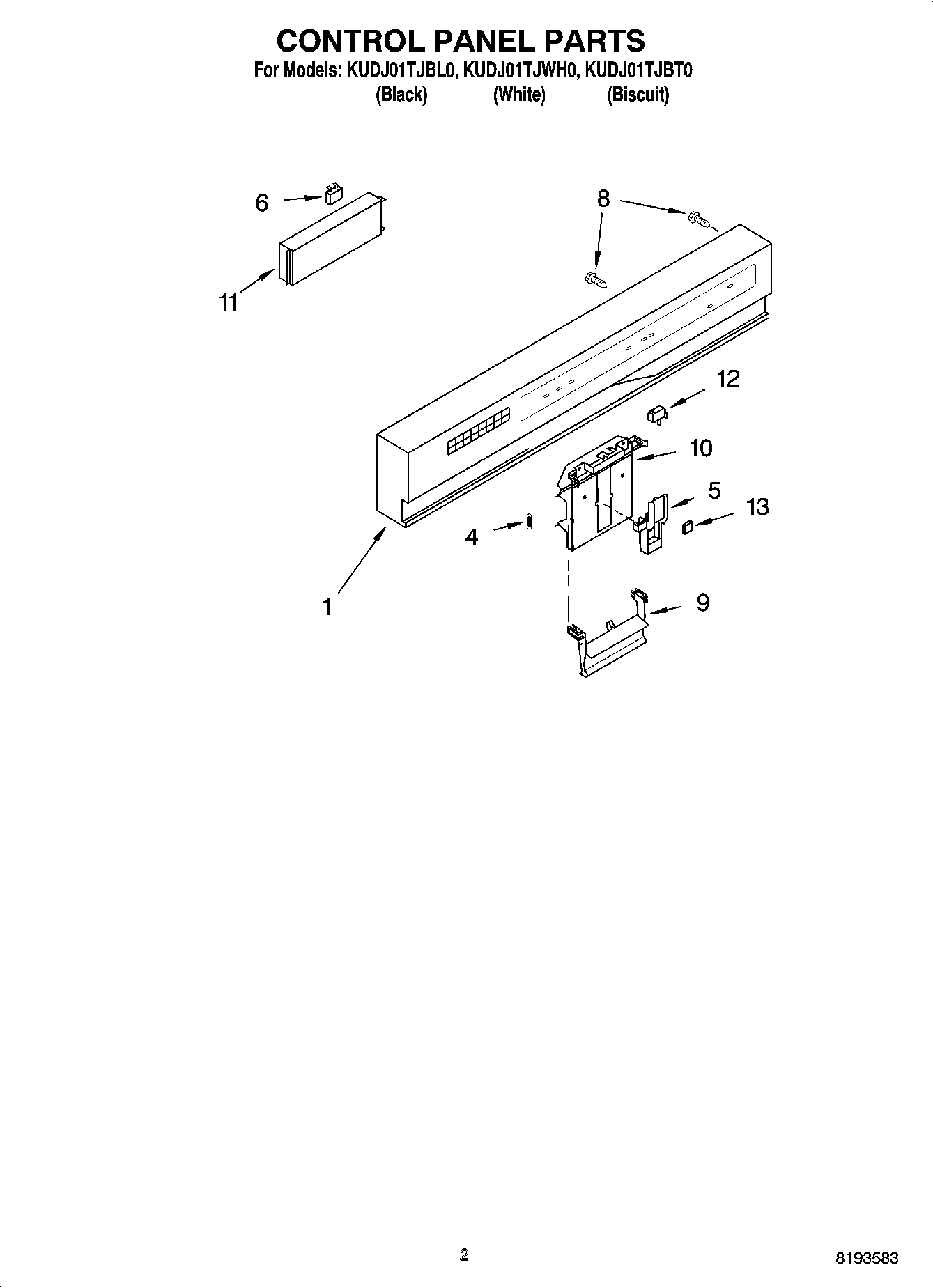

KUDJ01TJBT0 02 – CONTROL PANEL PARTS

KUDJ01TJBT0 02 – CONTROL PANEL PARTS

Written by

in

KUDJ01TJBT0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. includes Active Overlay & Insert (Black)
1Screw (Biscuit)
1Screw (White)
4WP8268540 Whirlpool Door Handle Spring
5WP8524472 Whirlpool Dishwasher Door Latch Actuator
68193762 Whirlpool Fuse Kit
8WPW10348409 Whirlpool Screw
9WP8269117 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11Control, Electronic
12WP8269209 Whirlpool Door Switch
13Bumper, Latch
