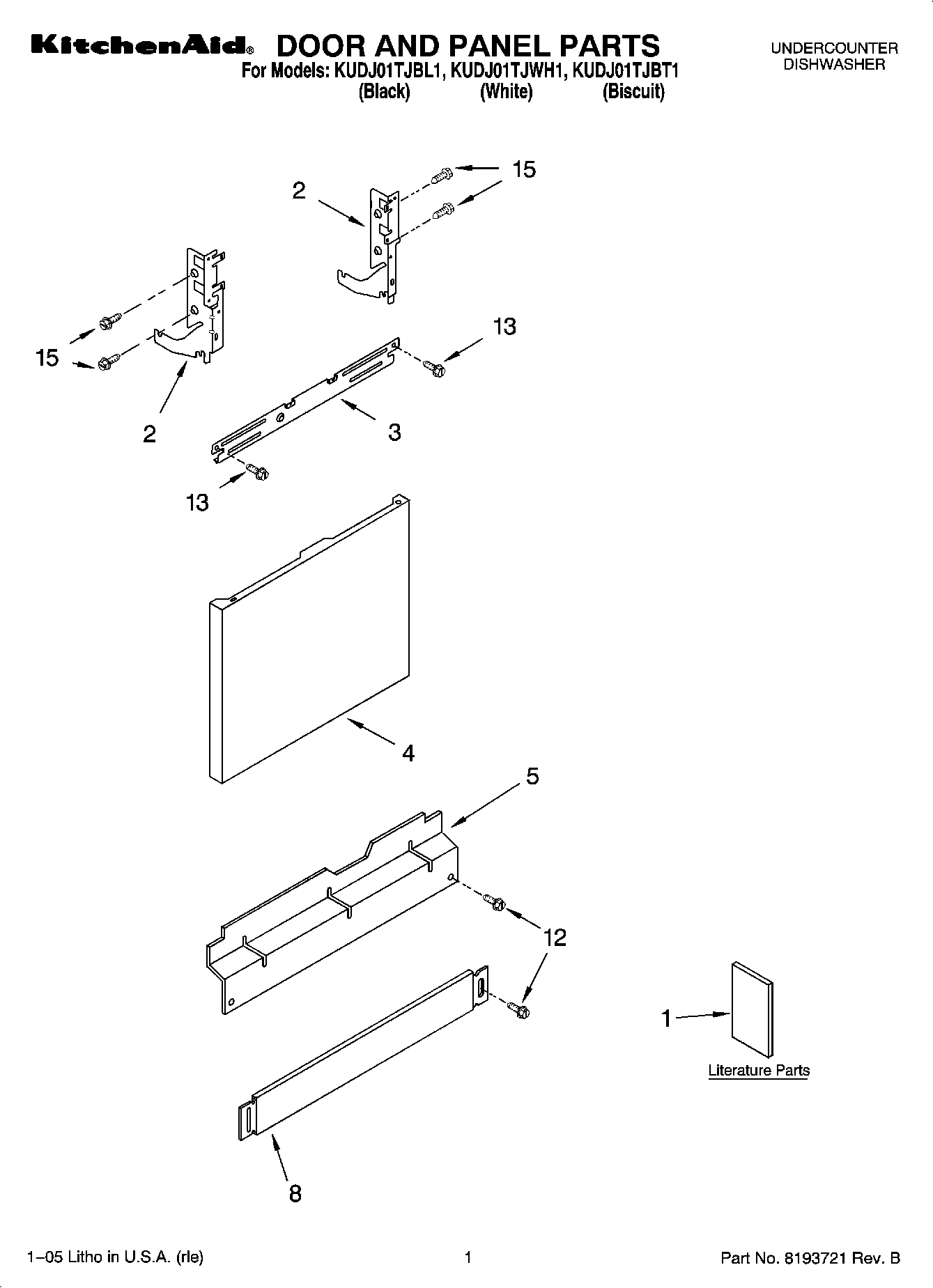

KUDJ01TJBT1 01 – DOOR AND PANEL PARTS

KUDJ01TJBT1 01 – DOOR AND PANEL PARTS

Written by

in

KUDJ01TJBT1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Use & Care Tech Sheet)
1Literature Parts (English/French)
1Literature Parts (Guide, Energy)
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front (Biscuit)
4Panel Front (White)
4Panel Front (Black)
4Panel Front (Stainless)
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
8Toe Panel (Biscuit)
12WPW10503550 Whirlpool Dishwasher Retainer
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13Screw (White)
13WP302868 Whirlpool Screw
13Screw (Biscuit)
15WP3400071 Whirlpool Screw
