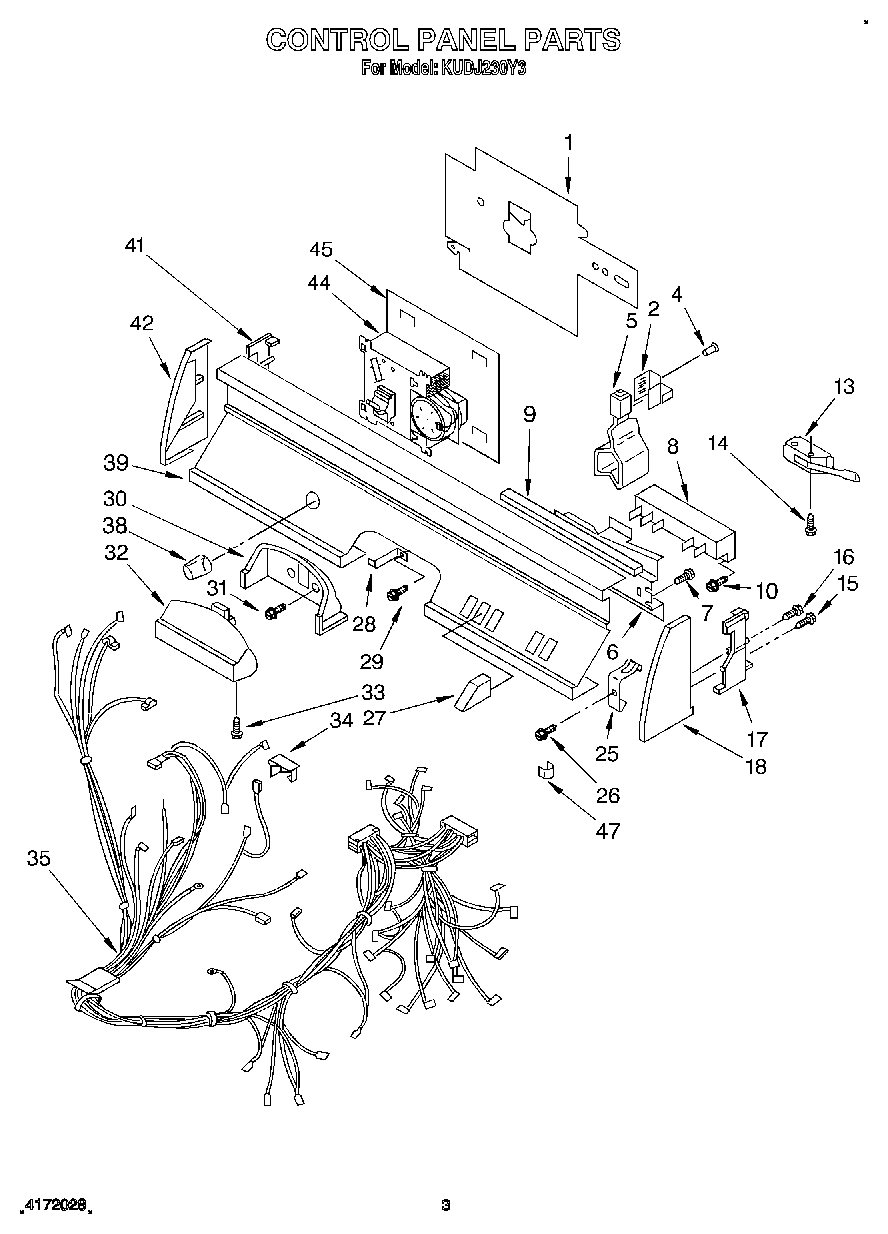

KUDJ230Y3 03 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT9741514
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	WPL LIT9741814
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Adjustable Kickboard Kit
	White (R.H.)
	Almond (R.H.)
	White (L.H.)
	Almond (L.H.)
	WPL LIT9741254
	WPL 9741087
	Wood Top Kit
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL 72112
	Platinum (Uncut)
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
1	Insulator, Latch
2	Anchor, Cancel Spring
4	Rivet
5	Spring, Switch Cancel
6	Bracket, Program Switch
8	Switch, Program
9	Seal, Moisture
10	Screw, 10-16 X 5/8
13	Switch, Interlock
14	W11596033 Whirlpool Microwave Screw
15	Screw & Washer Assy
16	WP681249 Whirlpool Screw Assembly
17	Spacer, End Cap (R.H.)
18	End Cap (R.H.)
25	Clip, Grounding (Front Panel)
26	SCREW
27	Button, Program Switch (7)
28	Bracket, Panel Reinforcement
29	Screw, 6-20 x 3/8
30	Trim, Handle
31	Screw, 8-32 x 1/2 (Black Model)
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	Wiring Harness (Main)
35	WPL 4159349
38	Knob, Timer
39	Control Panel
41	Spacer, End Cap (L.H.)
42	End Cap (L.H.)
44	Timer Assembly
45	Barrier, Timer
47	Clip, Endcap (2)
