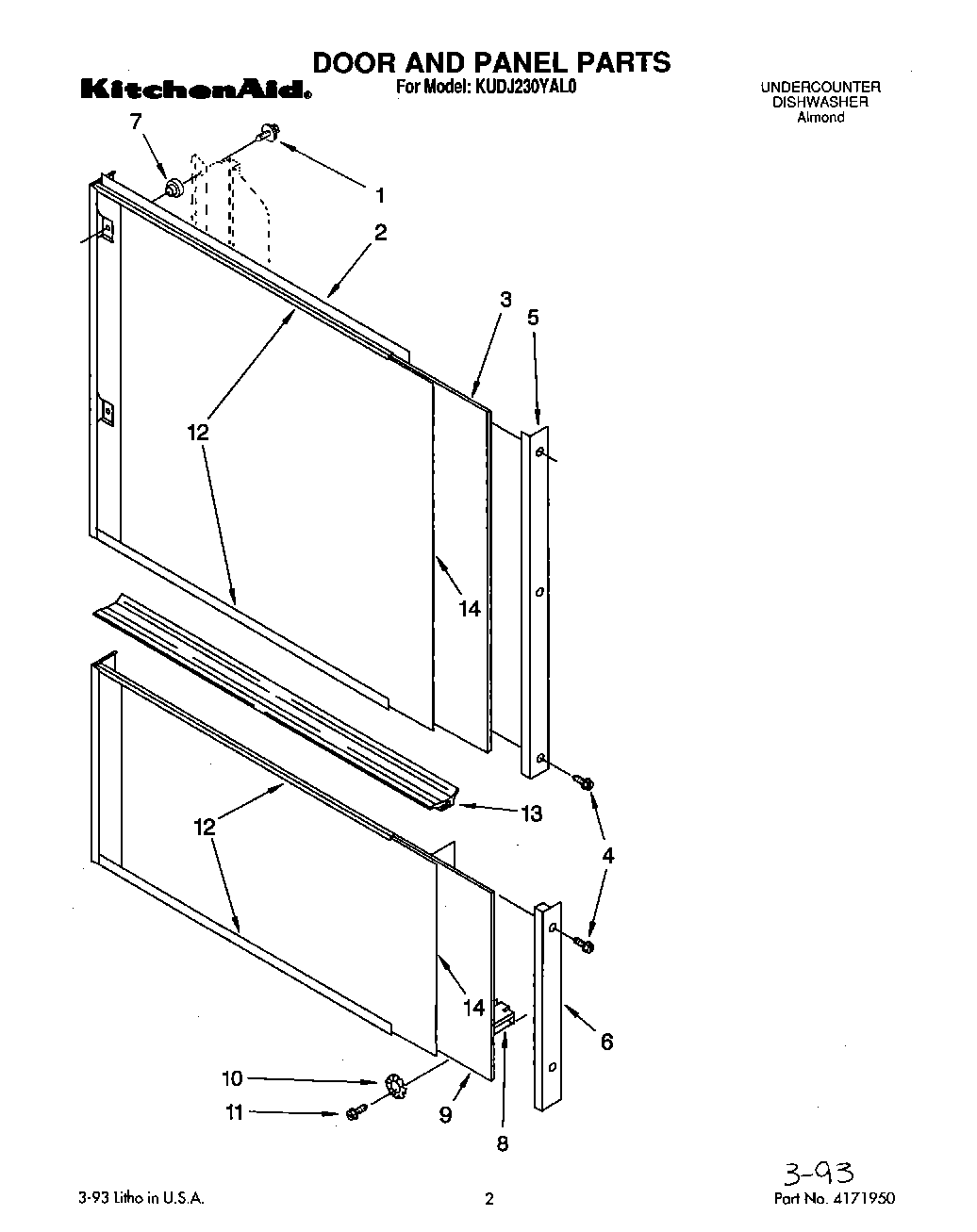

KUDJ230YAL0 01 – DOOR AND PANEL

KUDJ230YAL0 01 – DOOR AND PANEL

Products

PositionProduct
1Screw
2Upper Mounting Panel Assembly (Includes Upper & Lower Trim)
3Filler (Upper Panel)
4Screw (Almond Model)
5Side Trim (Upper Panel)
6Side Trim (Lower Panel) (Almond Model)
7Grommet, Panel
8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (Almond Model)
9Filler (Lower Panel)
10Lock Washer No.10 Ext. Shake- proof
11WP693304 Whirlpool Screw
12Trim, Panel (Upper & Lower) (Almond Model)
13Channel, Evaporation
14Panel Insert Kits (Sand/Onyx Black (Optional))
14Panel Insert Kits (Harvest Gold/ Almond OPTIONAL KITS)
14Panel Insert Kits (White/Black)
14Panel Insert Kits (Fresh Avocado/Coffee (Optional))
14Panel Insert Kits (Almond/White)
14Panel Insert Kits (Stainless Steal (Optional))
14Panel Insert Kits (Almond/Black)
14Panel Insert Kits (Platinum/Toast (Optional))
14Panel Insert Kits (Harvest Gold/Onyx Black)
14Panel Insert Kits (Silver/Onyx Black (Optional))
