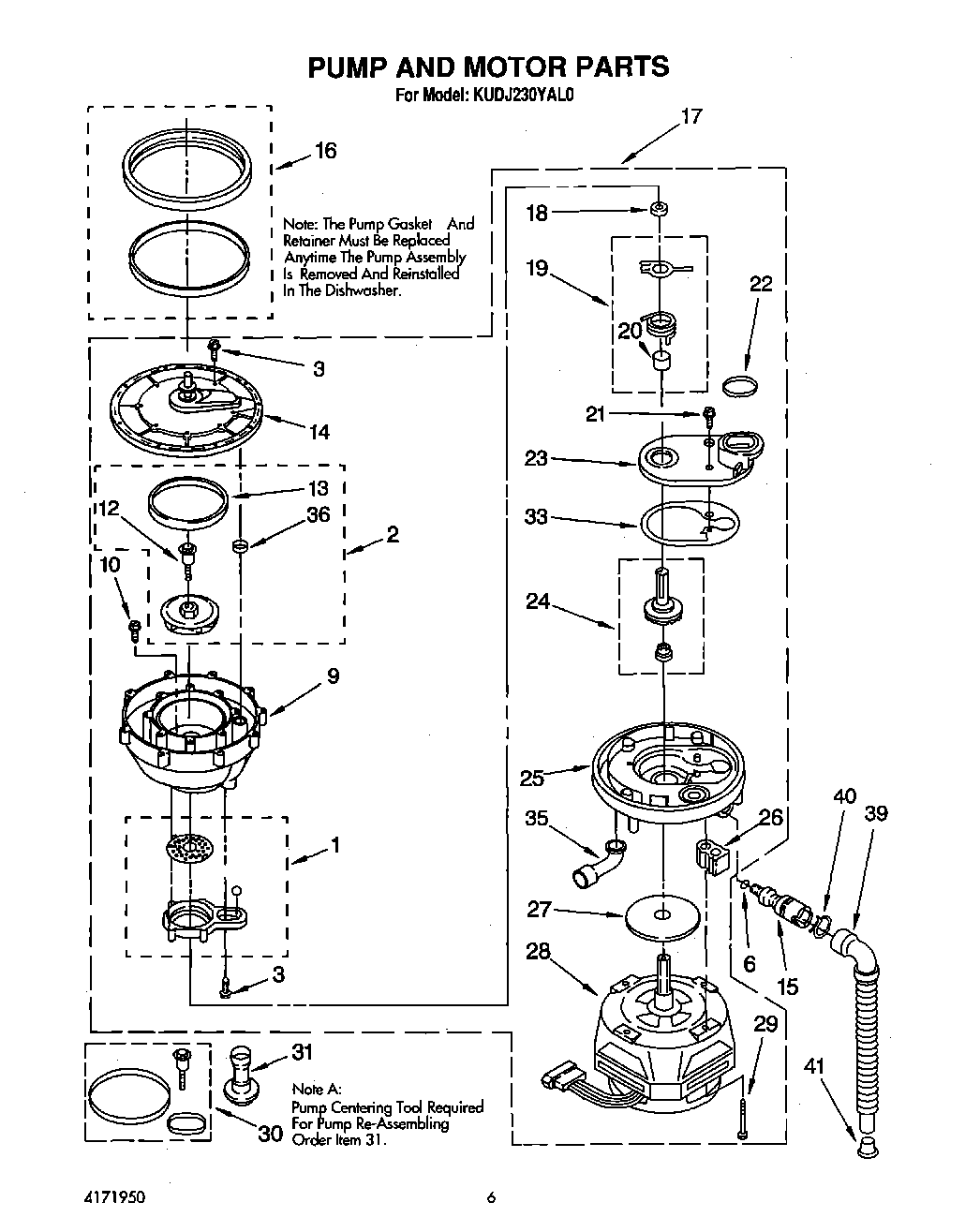

KUDJ230YAL0 04 – PUMP AND MOTOR

Products

Position	Product
1	Inlet Base Assy. (Also Order Item 30) See Note A.
3	WP9741232 Whirlpool Dishwasher Screw
6	``O`` Ring
9	Box, Separator Collector (Also Order Item 30) See Note A.
10	Screw, 8-18 (4)
12	WP3371152 Whirlpool Dishwasher Screw
13	WP302711 Whirlpool Dishwasher Ring Seal
14	Outlet, Pump (Includes Item 13)
15	675238 Whirlpool Check Valve
16	717000 Whirlpool Dishwasher Gasket
17	Pump & Motor Assembly (Includes Item 16)
18	Bushing, Grind
19	675806 Whirlpool Dishwasher Pump Impeller and Seal Kit
20	Sleeve, Drain Impeller
21	W11693756 Whirlpool Screw Assembly
22	Seal, Drain Cover
23	Cover, Drain (Includes Item 33) (Also Order Item 30) See Note A.
25	Base, Pump (Includes Items 24 & 33) (Also Order Item 30) See Note A.
26	WP3367197 Whirlpool Dishwasher Support
27	W10909679 Whirlpool Dishwasher Slinger
28	Motor (Includes Items 24 & 27) (Also Order Item 30) See Note A.
29	Screw (4)
30	Pump Seal Kit (Includes Items 4, 12, 13 & 22)
31	Tool, Pump Centering
33	WP9740674 Whirlpool Dishwasher Gasket
35	Connector, Overhead
36	WP9740678 Whirlpool Dishwasher Ring Seal
39	Tube, Drain
40	WP285655 Whirlpool Hose Clamp
41	Cap, Drain
