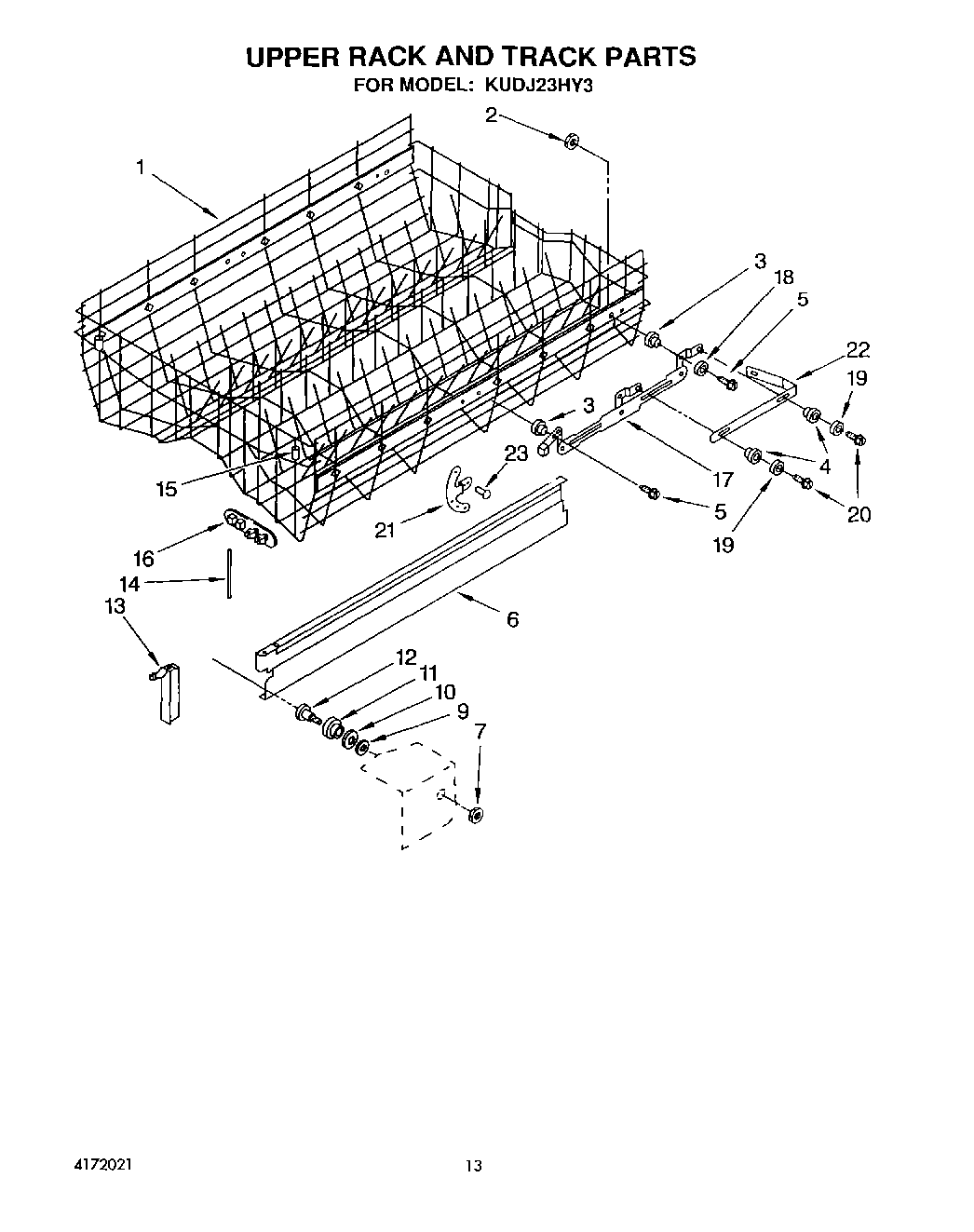

KUDJ23HY3 10 – UPPER RACK AND TRACKadmin2025-04-26T11:44:22+00:00KUDJ23HY3 10 – UPPER RACK AND TRACK
Products
| Position | Product |
|---|
| 1 | Upper Rack Assembly (Includes Items 2, 3, 5, 15 & 18) |
| 2 | Nut, Roller |
| 3 | Bearing & Spacer, Rack Roller |
| 4 | Roller, Upper Rack Track |
| 5 | Screw, 10-16 X 5/8 |
| 6 | Track, Rack |
| 7 | Nut, Lock |
| 9 | Washer |
| 10 | Washer, Cup |
| 11 | Roller, Rack Track |
| 12 | Screw. Track Roller |
| 13 | Bumper, Rack Track |
| 14 | Stud, Bumper Retaining |
| 15 | Bumper, Upper Rack |
| 16 | Clip, Wash Arm Guard |
| 17 | Track, Adjustable (L.H.) |
| 17 | Track, Adjustable (R.H.) |
| 18 | Washer |
| 19 | Washer |
| 20 | Screw, 8-32 X 1/4 |
| 21 | Rackstop (L.H.) |
| 21 | Rackstop (R.H.) |
| 22 | Lift, Receiver (L.H.) |
| 22 | Lift, Receiver (R.H.) |
| 23 | Rivet |
