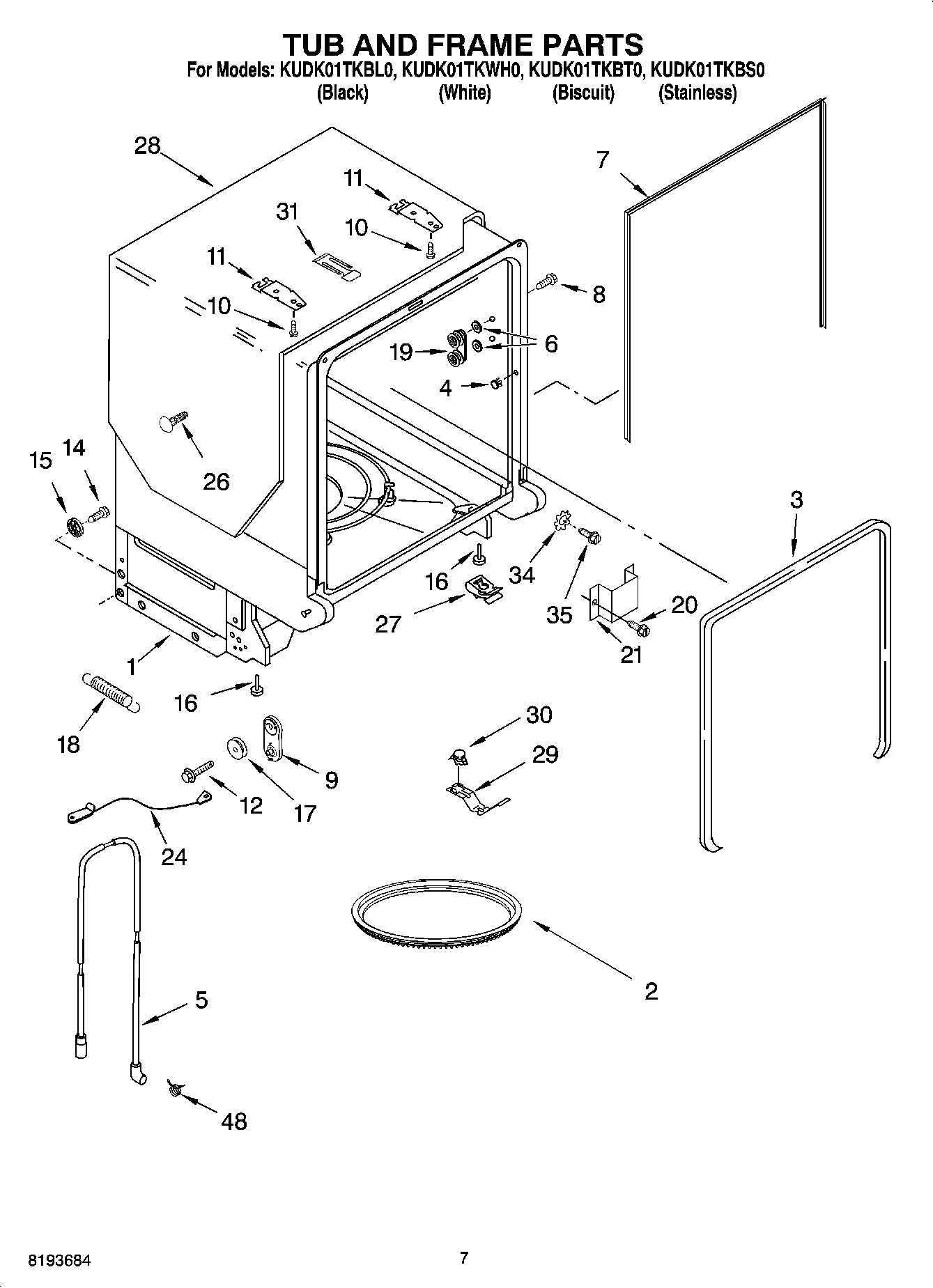

KUDK01TKBS0 07 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly (Also Order Item 2)
2	Seal, Sump
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WPW10358302 Whirlpool Dishwasher Drain Hose
6	WP9743002 Whirlpool Dishwasher Gasket
7	SEAL
8	WPW10348407 Whirlpool Dishwasher Screw
9	8194001 Whirlpool Dishwasher Door Balance Link Kit
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
14	Screw (2)
15	WP8268977 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP8524474 Whirlpool Dishwasher Wheel Assembly
18	SPRING
19	WP8270019 Whirlpool Dishwasher Dishrack Wheel
20	WP3400892 Whirlpool Dishwasher Screw
21	WP8268991 Whirlpool Dishwasher Cover Assembly
26	WP304666 Whirlpool Dishwasher Retainer
27	WP8269016 Whirlpool Clip Assembly
28	W10877094 Whirlpool Shield
29	9742648 Whirlpool Dishwasher Stat Bracket
30	WP661566 Whirlpool High Limit Thermostat
31	WP8580309 Whirlpool Dishwasher Strike
34	WP3378128 Whirlpool Dishwasher Washer
35	WP3400014 Whirlpool Dishwasher Screw
48	WP356138 Whirlpool Hose Clamp
