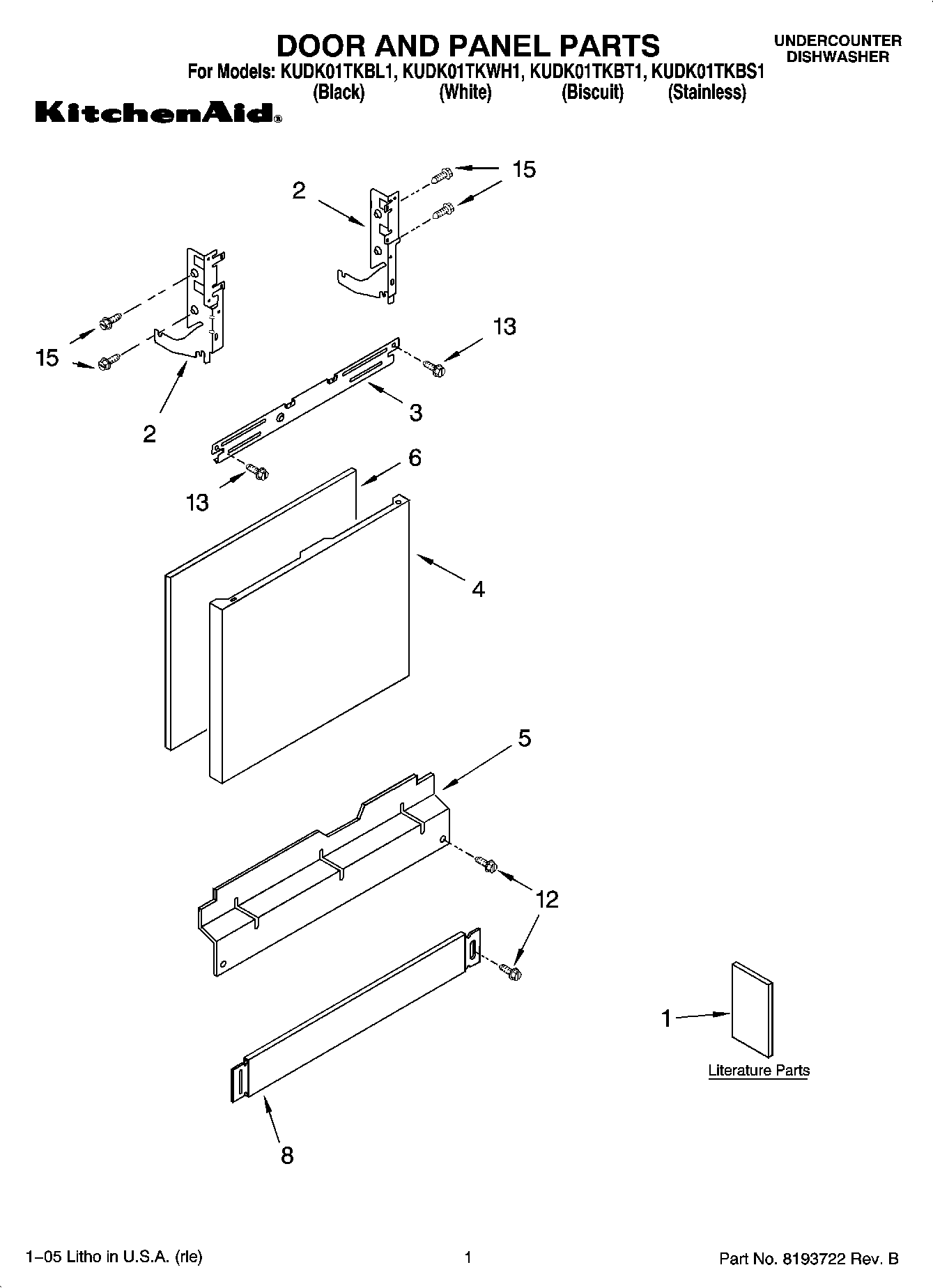

KUDK01TKBT1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (English/French)
1	Literature Parts (Guide, Energy)
1	Literature Parts (Instructions, Installation)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	Panel Front (Biscuit)
4	Panel Front (Black)
4	Panel Front (Stainless)
4	Panel Front (White)
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
5	W10871198 Whirlpool Dishwasher Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
8	Toe Panel (Biscuit)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	WPW10503550 Whirlpool Dishwasher Retainer
13	Screw (White)
13	Screw (Biscuit)
13	WP302868 Whirlpool Screw
15	WP3400071 Whirlpool Screw
