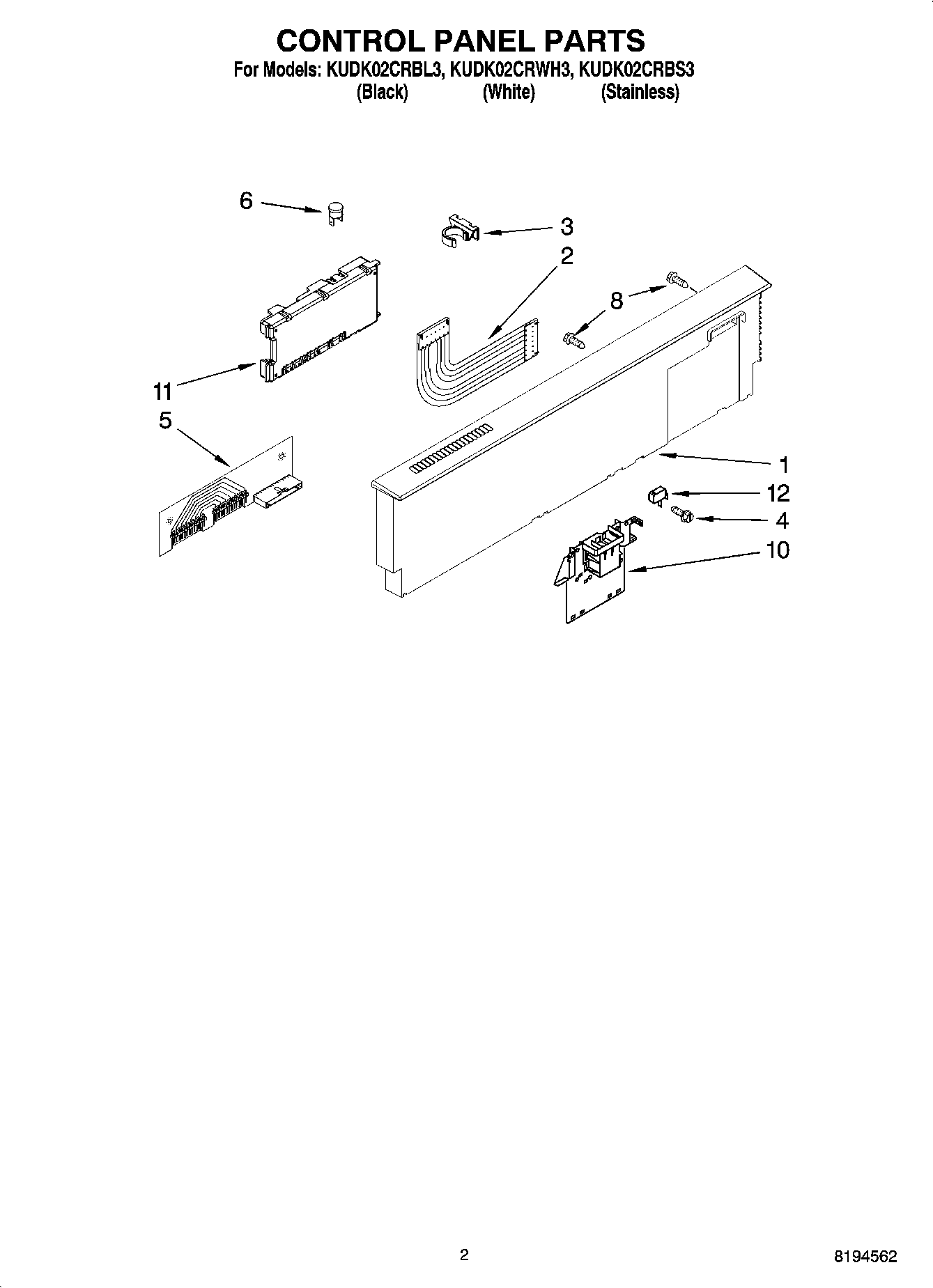

KUDK02CRWH3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. (Includes Active Overlay & Insert) (White)
1	WP8572349 Whirlpool Dishwasher Control Panel
2	CABLE-RIBBON
3	Clip, BI-Metal
4	WP3400412 Whirlpool Dishwasher Screw
5	WP8531873 Whirlpool Dishwasher Control Board
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
8	WPW10348409 Whirlpool Screw
10	8193830 Whirlpool Dishwasher Door Latch Switch Kit
11	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12	WP8269209 Whirlpool Door Switch
