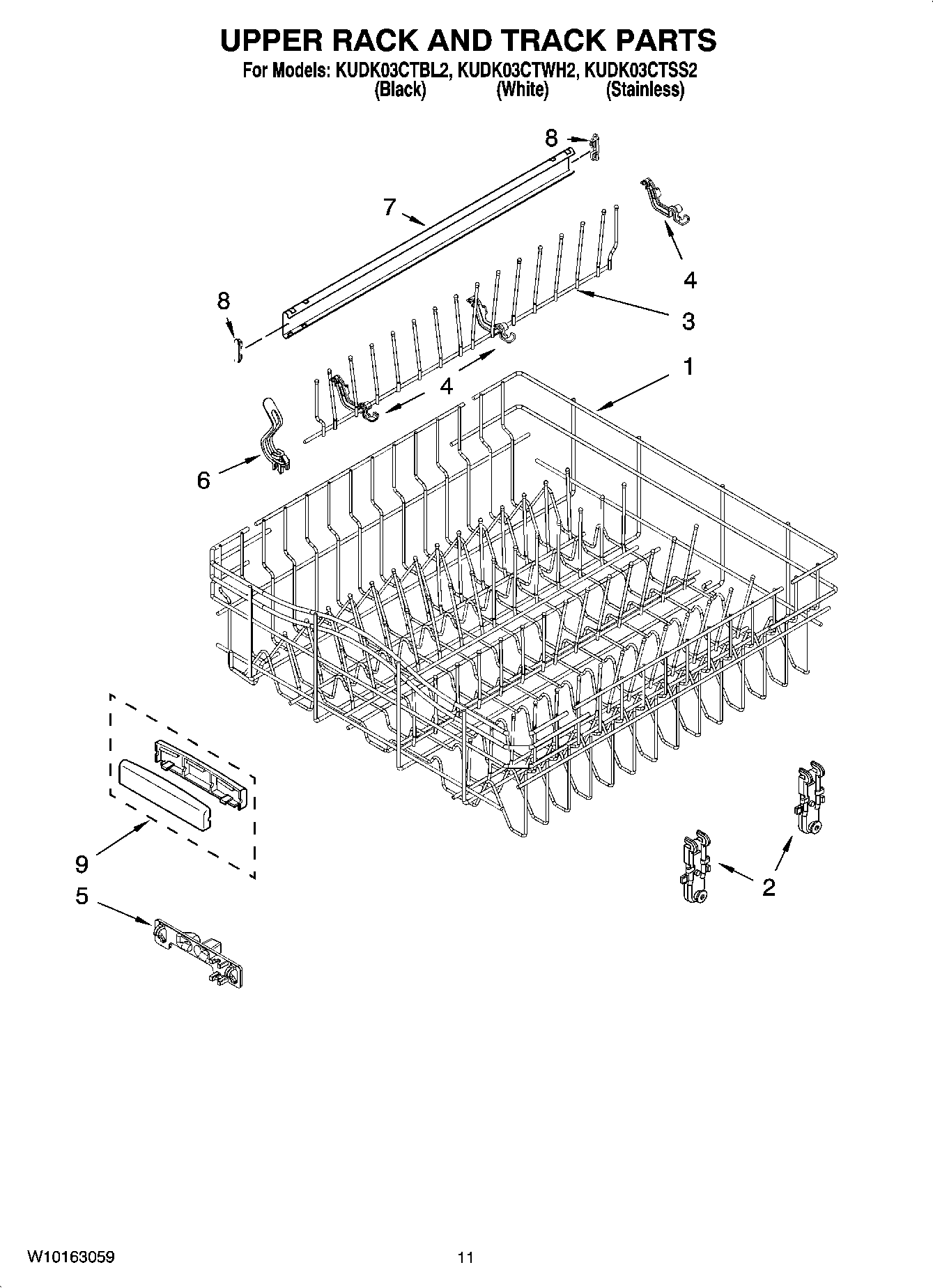

KUDK03CTBL2 09 – UPPER RACK AND TRACK PARTS

KUDK03CTBL2 09 – UPPER RACK AND TRACK PARTS

Written by

in

KUDK03CTBL2 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
2WPW10078214 Whirlpool Upper Bracket Roller
3W10727426 Whirlpool Dishwasher Rack Tine
4WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
5WP8539102 Whirlpool Dishwasher Positioner
6WPW10077844 Whirlpool Dishwasher Clip
7WP3385089 Whirlpool Track
8WP8565925 Whirlpool Slide Rail Stop
9Handle, Dishrack
