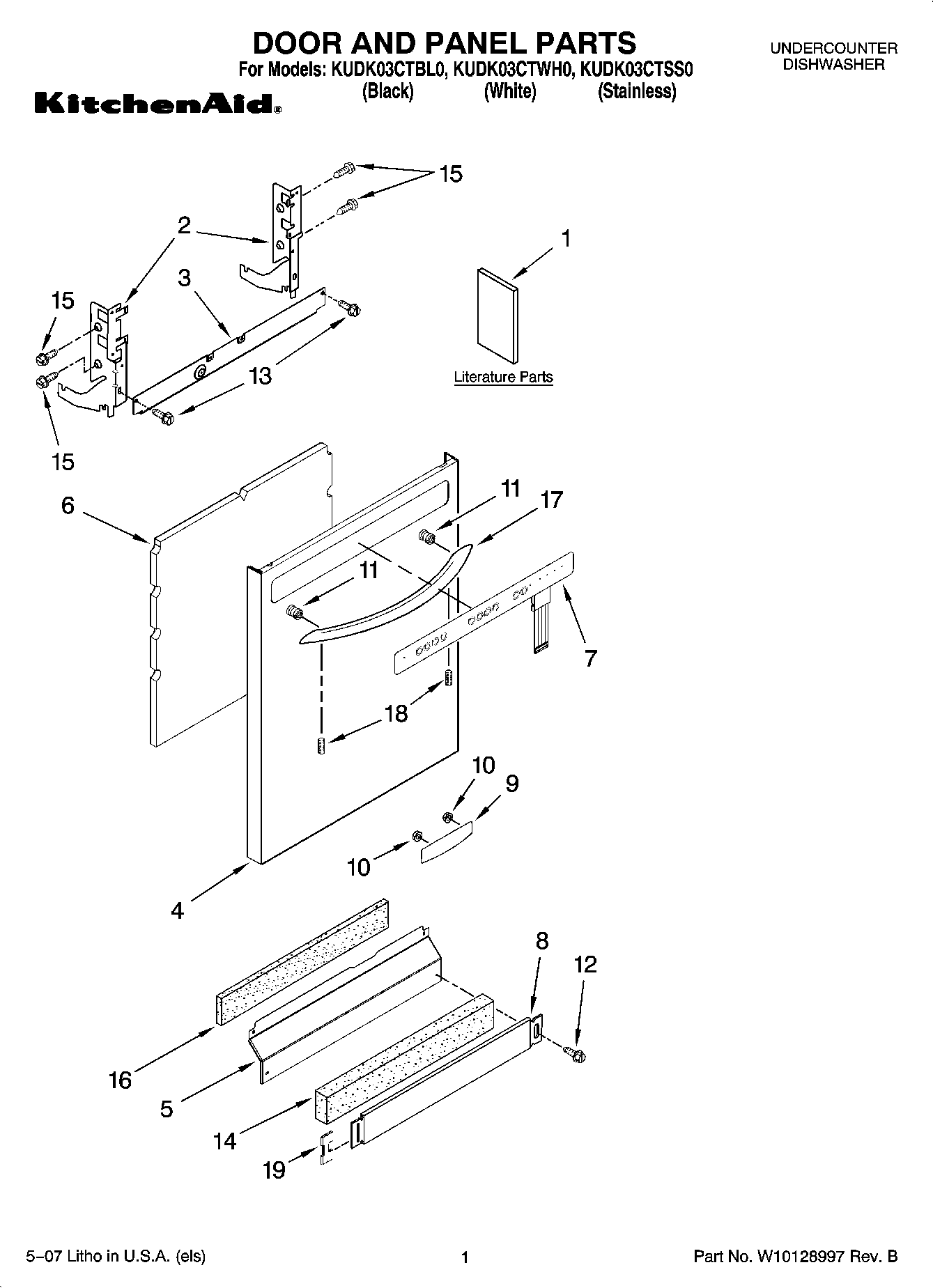

KUDK03CTSS0 01 – DOOR AND PANEL PARTS

KUDK03CTSS0 01 – DOOR AND PANEL PARTS

Written by

in

KUDK03CTSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Instructions, Installation
1Tech Sheet
1Energy Guide
1Guide, Consumer Reference
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (Includes Items 6, 9, 10 & 11) (Stainless)
4Panel Front (Includes Items 6, 9, 10 & 11) (Black)
4Panel Front (Includes Items 6, 9, 10 & 11) (White)
5PANEL
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7Bezel, Console (White)
7WPW10077790 Whirlpool Dishwasher Overlay
7Bezel, Console (Stainless)
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
9W10021850 Whirlpool Dishwasher Nameplate
9W10021860 Whirlpool Dishwasher Nameplate
9W10021870 Whirlpool Nameplate
10WP2004333 Whirlpool Refrigerator Nut
11WP8564951 Whirlpool Dishwasher Stud
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
16SHIELD
17Handle Assy (Includes Items 7) (Black)
17W10195738A Whirlpool Stainless Steel Door Handle
17Handle Assy (Includes Items 7) (White)
18WP8534008 Whirlpool Screw
19WP8269016 Whirlpool Clip Assembly
