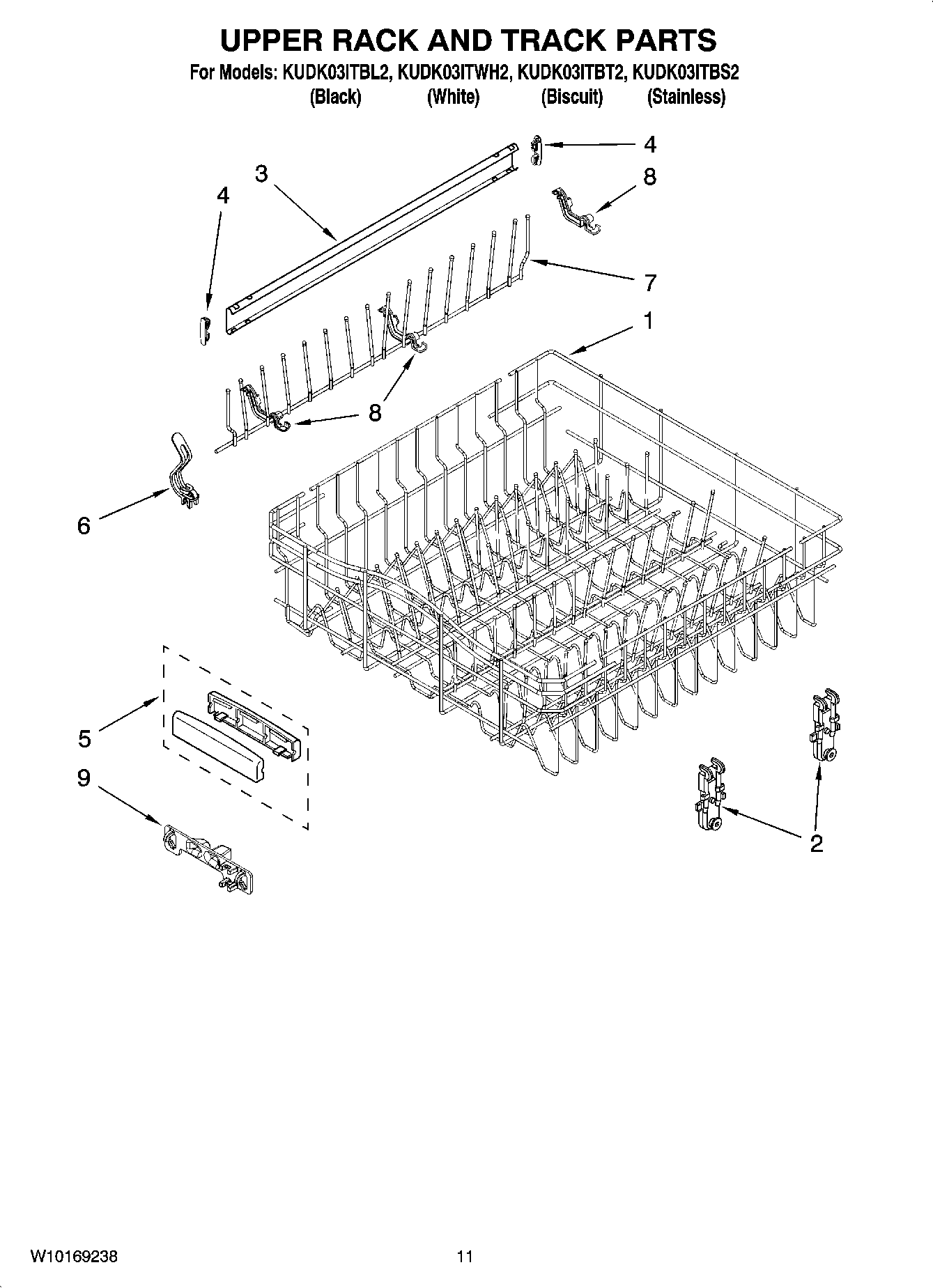

KUDK03ITBL2 09 – UPPER RACK AND TRACK PARTS

Written by

Products

Position	Product
1	W10727422 Whirlpool Dishwasher Dishrack
2	WPW10078214 Whirlpool Upper Bracket Roller
3	WP3385089 Whirlpool Track
4	WP8565925 Whirlpool Slide Rail Stop
5	Handle, Dishrack
6	WPW10077844 Whirlpool Dishwasher Clip
7	W10727426 Whirlpool Dishwasher Rack Tine
8	WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
9	WP8539102 Whirlpool Dishwasher Positioner
