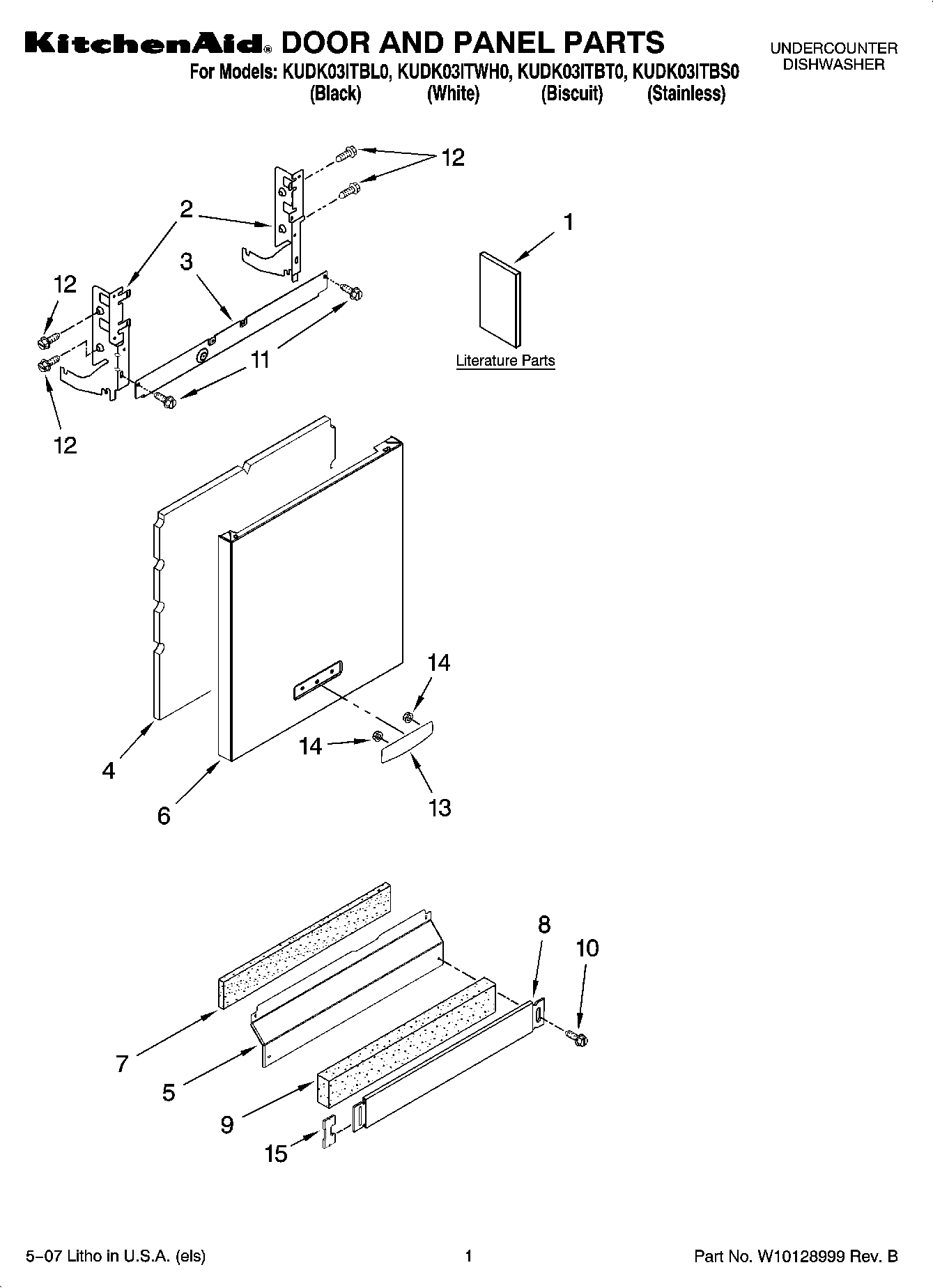

KUDK03ITBS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Instructions, Installation
1Tech Sheet
1Energy Guide
1Guide, Consumer Reference
1Guide, Use & Care
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5PANEL
5W10909066 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
6W10349340 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BLACK)
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (WHITE)
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BISCUIT)
7SHIELD
8Toe Panel (Includes Items 7 & 11) (Biscuit)
8W10909064 Whirlpool Dishwasher Black Access Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
10WPW10503549 Whirlpool Dishwasher Retainer Clip
10WP302868 Whirlpool Screw
10WPW10503550 Whirlpool Dishwasher Retainer
11WP489069 Whirlpool Compactor Screw
12WP3400071 Whirlpool Screw
13Nameplate (Biscuit)
13W10021870 Whirlpool Nameplate
13W10021860 Whirlpool Dishwasher Nameplate
13W10021850 Whirlpool Dishwasher Nameplate
14WP2004333 Whirlpool Refrigerator Nut
15WP8269016 Whirlpool Clip Assembly
