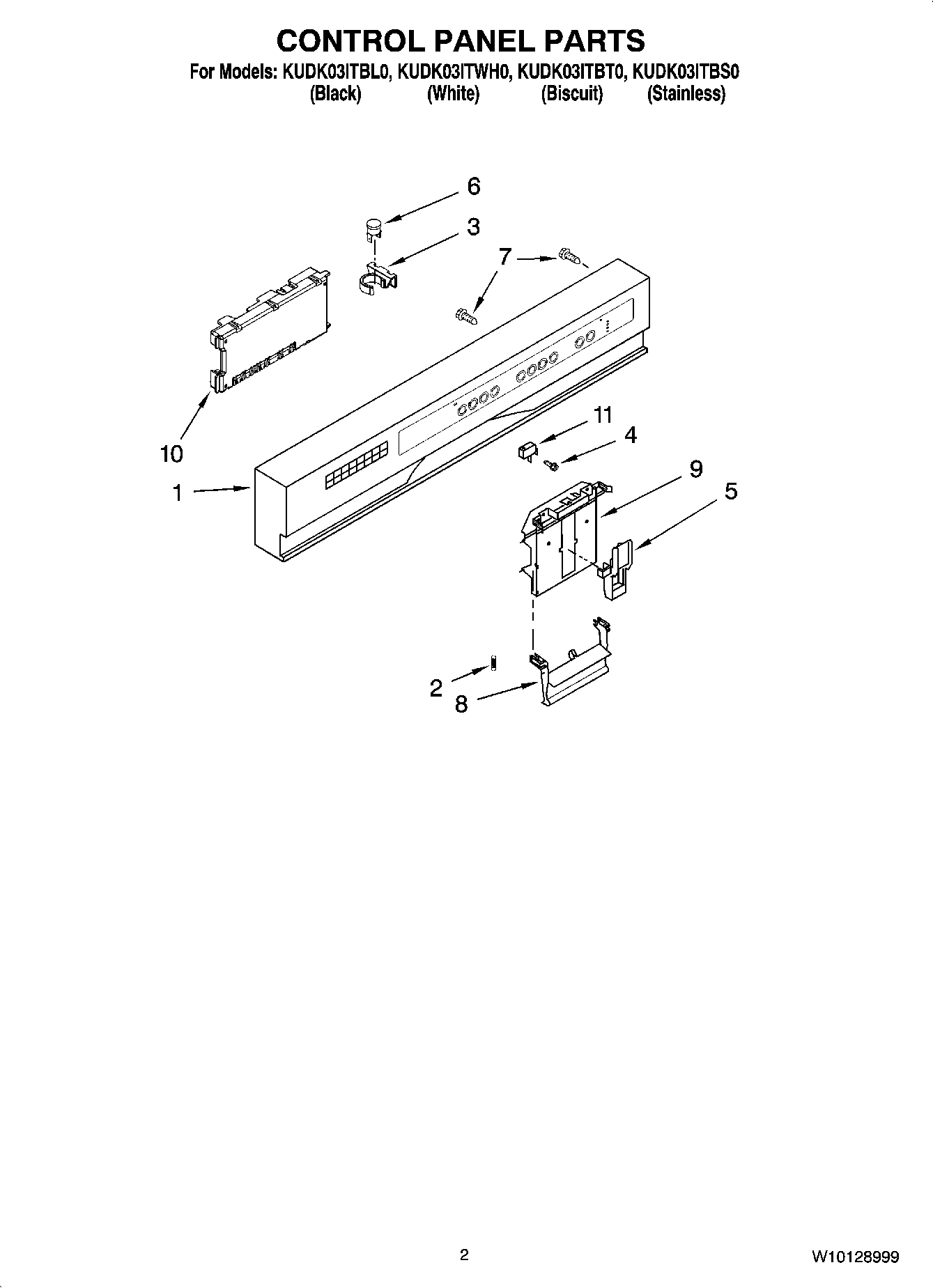

KUDK03ITBS0 02 – CONTROL PANEL PARTS

KUDK03ITBS0 02 – CONTROL PANEL PARTS

Written by

in

KUDK03ITBS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert) (Biscuit)
1Console Assembly (Includes Insert) (White)
1WPW10078105 Whirlpool Dishwasher Control Panel
2WP8268540 Whirlpool Door Handle Spring
3Clip, BI-Metal
4WP3400412 Whirlpool Dishwasher Screw
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WPW10348409 Whirlpool Screw
8WP8269117 Whirlpool Dishwasher Handle
98193882 Whirlpool Dishwasher Primary Latch Bolt
10WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
11WP8269209 Whirlpool Door Switch
