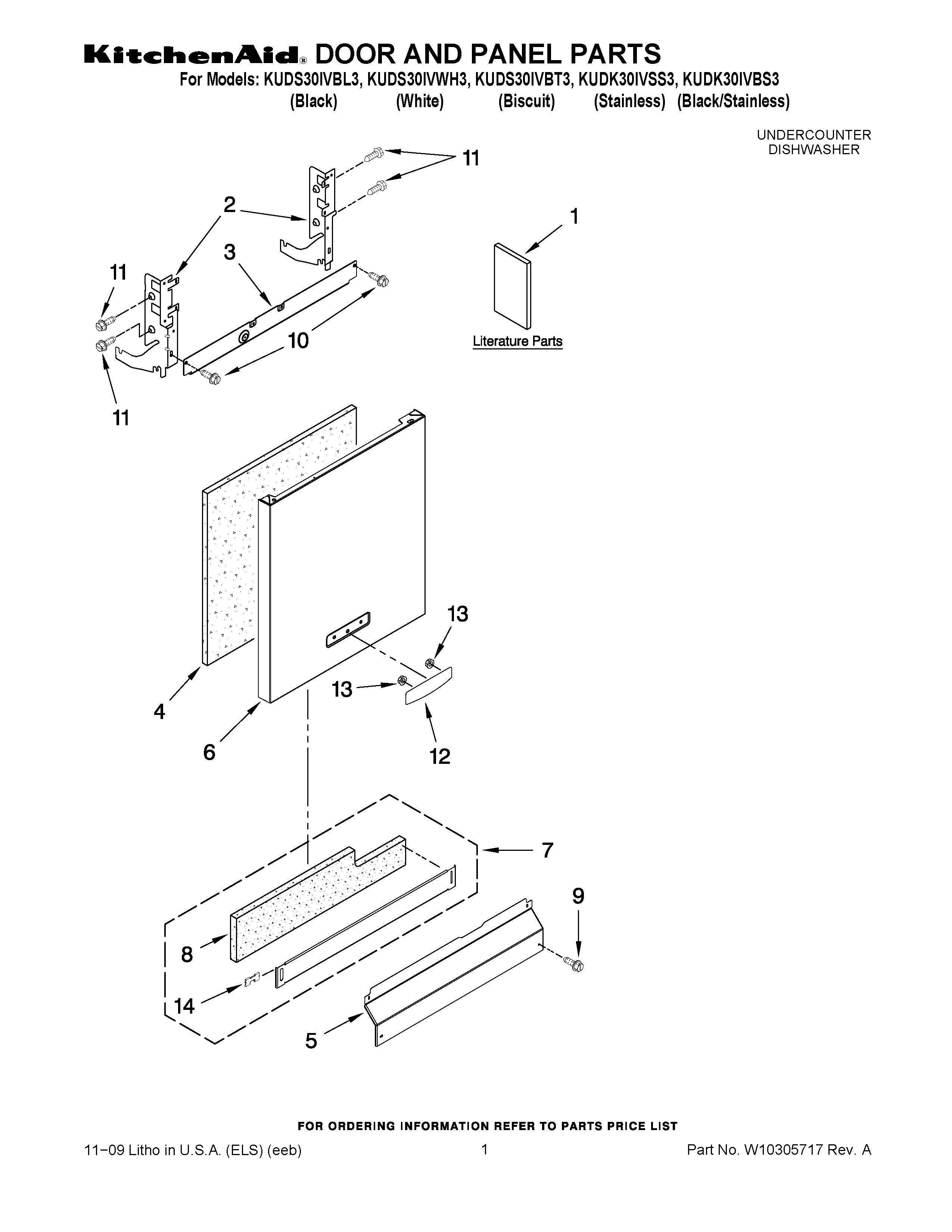

KUDK30IVBS3 01 – DOOR AND PANEL PARTS

KUDK30IVBS3 01 – DOOR AND PANEL PARTS

Written by

in

KUDK30IVBS3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1GUIDE, USE & CARE ENGLISH & FRENCH
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1Tech Sheet
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
6W10349340 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BLACK)
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BISCUIT)
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (WHITE)
7Toe Panel (Includes Items 7 & 11) (Biscuit)
7WPW10586591 Whirlpool Dishwasher Toe Panel
7W10909064 Whirlpool Dishwasher Black Access Panel
8SHIELD
9WPW10503550 Whirlpool Dishwasher Retainer
9WP302868 Whirlpool Screw
9WPW10503549 Whirlpool Dishwasher Retainer Clip
10WP489069 Whirlpool Compactor Screw
11WP3400071 Whirlpool Screw
12Nameplate (Biscuit)
12W10021870 Whirlpool Nameplate
12W10021860 Whirlpool Dishwasher Nameplate
12W10021850 Whirlpool Dishwasher Nameplate
13WP2004333 Whirlpool Refrigerator Nut
14WP8269016 Whirlpool Clip Assembly
