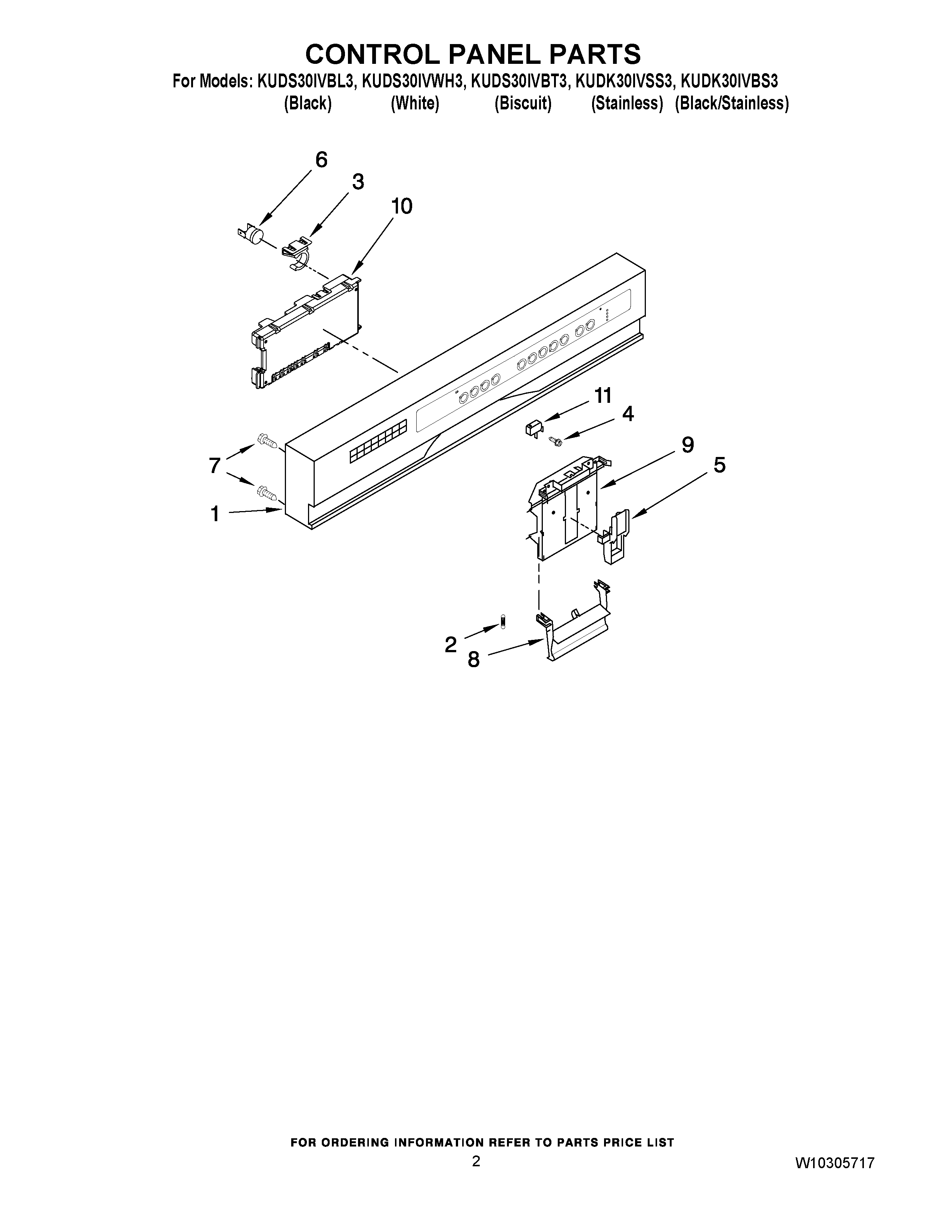

KUDK30IVBS3 02 – CONTROL PANEL PARTS

KUDK30IVBS3 02 – CONTROL PANEL PARTS

Written by

in

KUDK30IVBS3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (WHITE)
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BISCUIT)
1WPW10250018 Whirlpool Dishwasher Control Panel
1WPW10250015 Whirlpool Control Panel
2WP8268540 Whirlpool Door Handle Spring
3Clip, BI-Metal
4WP3400412 Whirlpool Dishwasher Screw
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WPW10348409 Whirlpool Screw
8WP8269117 Whirlpool Dishwasher Handle
98193882 Whirlpool Dishwasher Primary Latch Bolt
10WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
11WP8269209 Whirlpool Door Switch
